CONTROLS &
INSTRUMENTS
All controls, gages and switches used
for
normal driving, light, heating
and
air conditioning systems, are arranged
in what
will be referred to as the uDriver's Compartment». They are all readily accessible
to
the
driver
when seated.
The following pages
will feature descriptions and illustrations
of
these as well as other controls and equipment which
may be required
under
abnormal
or
emergency
conditions.

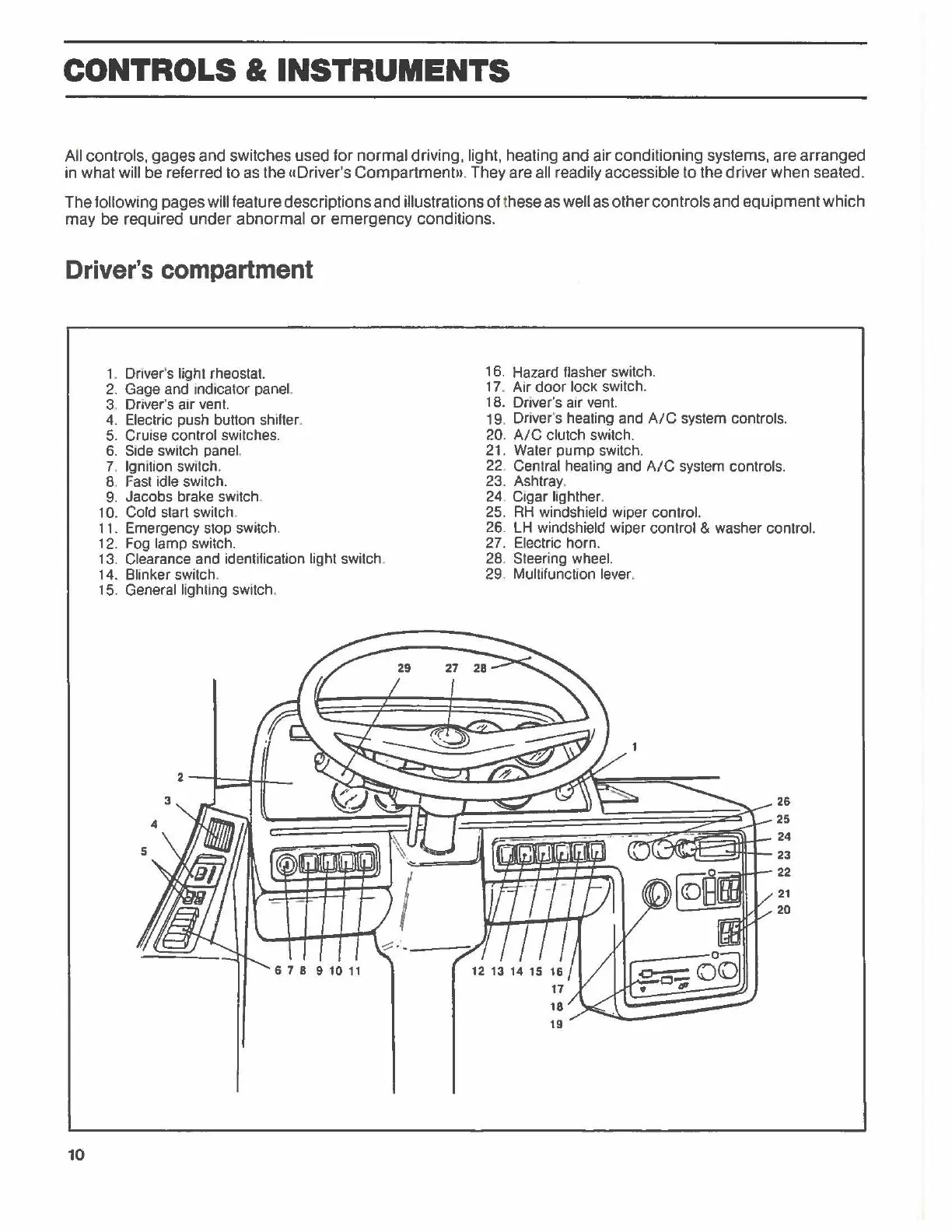

Driver's compartment
10
1. Driver's light rheostat.
2.
Gage and indicator panel.
3. Driver's air vent.
4.
Electric push button shifter.
5.
Cruise control switches.
6.
Side switch panel.
7. Ignition switch.
B.
Fast
idle switch.
9.
Jacobs brake switch .
10. Cold start switch.
11. Emergency stop switch.
12. Fog
lamp switch.
13.
Clearance and identification light switch.
14.
Blinker switch.
15.
General lighting switch.
16. Hazard flasher switch.
17
. Air
door
locK switch.
18. Driver's air
vent.
19. Driver's heating and
A/C
system controls.
20.
A/C
clutch switch.
21. Water
pump
switch.
22
. Central heating and
A/C
system controls.
23. Ashtray.
24
. Cigar lighther.
25.
RH
windshield wiper control.
26. LH windshield wiper control & washer control.
27. Electric horn.
28.
Steering wheel.
29. Multifunction lever.
~~~~~~====~~~26
=
25
~~;;;;;;;;~~~~~~H-24
~[l-....;:!~t--
23
=~-22
21
20
