EXTERIOR COMPARTMENTS
1
r---,
2 3 I I 4 5
2
2
6
I I
8 9 10
12 13
2
2

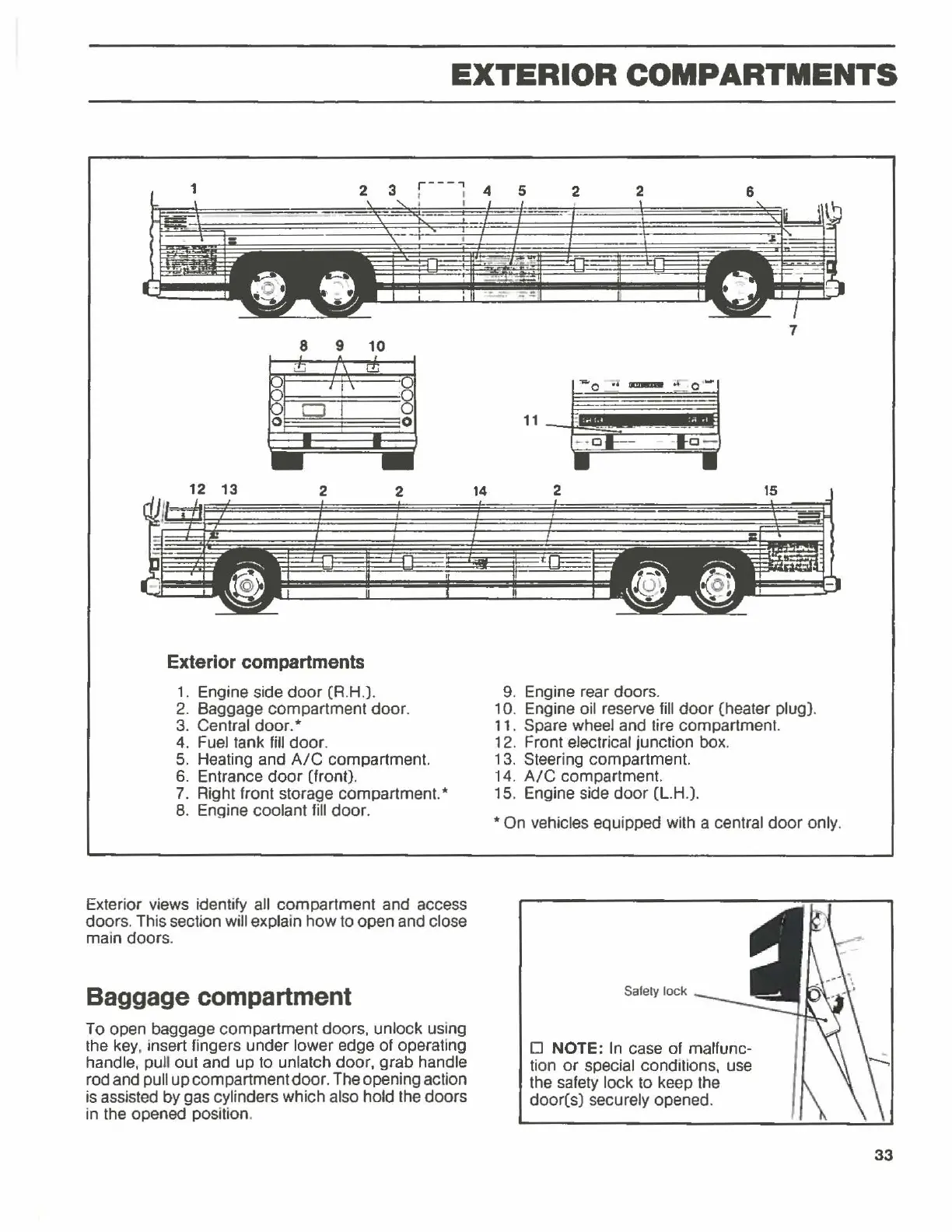

Exterior compartments
1. Engine side door (R.H.).
2. Baggage compartment door .
3. Central door.*
4. Fuel tank fill door.
5. Heating and
A/C compartment.
6. Entrance door (front).
7. Right front storage compartment.*
8. Engine coolant fill door.
Exterior views identify
all compartment and access
doors. This section
will explain how to open and close
main doors.
Baggage compartment
To open baggage compartment doors. unlock using
the
key, insert fingers under lower edge of operating
handle. puU out and up to unlatch door, grab handle
rod and
pull up compartment door . The opening action
is assisted by gas cylinders which also hold the doors
in the opened position.
14
7
2 15
9. Engine rear doors.
1
O. Engine oil reserve fill door (heater plug).
11 . Spare wheel and tire compartment.
12. Front electrical junction box.
13. Steering compartment.
14. A/C compartment.
15. Engine side door (L.H.).
*On vehicles equipped with a central door only.
Safety lock
D NOTE: In case of malfunc-
tion
or special conditions. use
the safety
lock to keep the
door(s) securely opened.
