8. Slide the Movable Throat Guide inward until it almost touches the label stock.

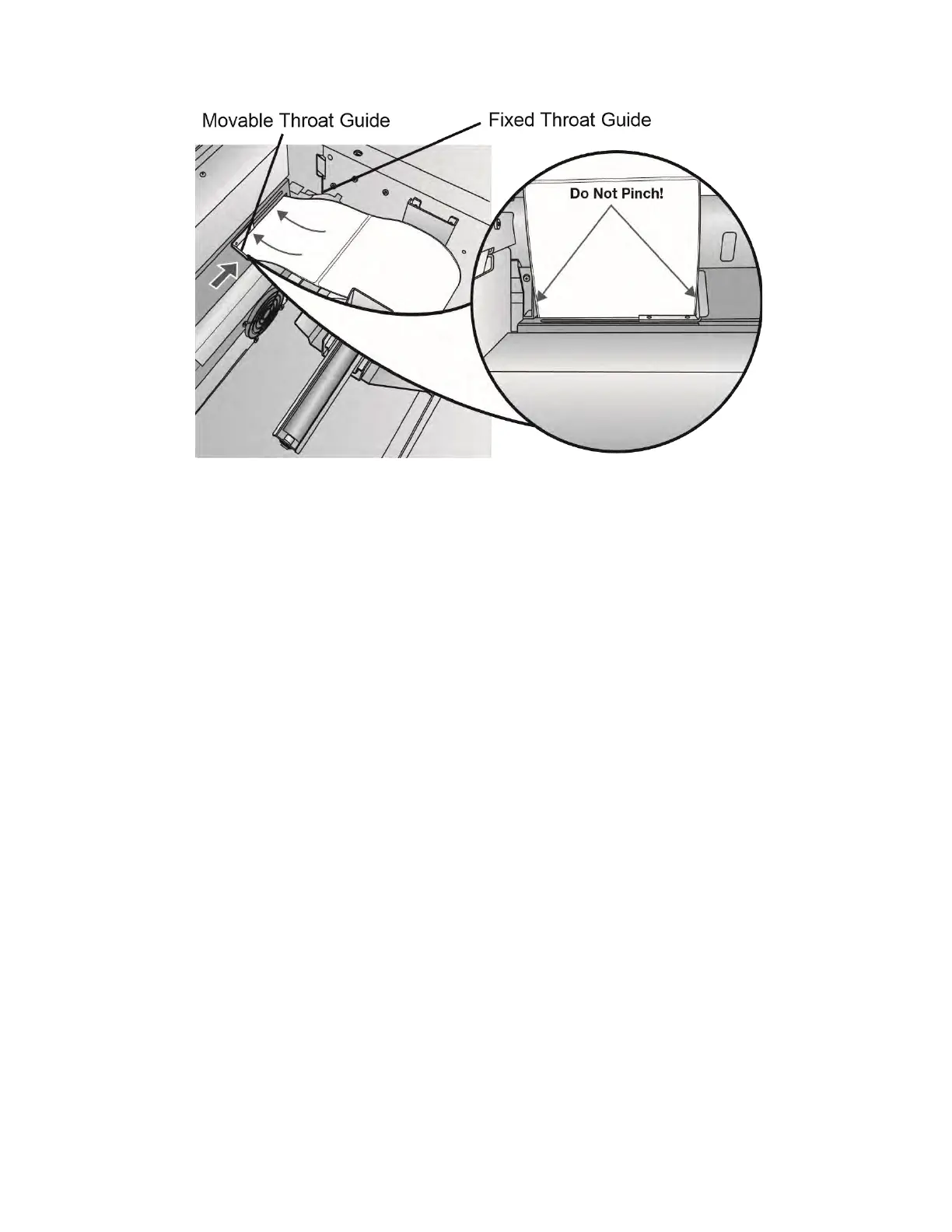

Important Note: The label stock should be close enough to the Fixed and Movable Throat
Guides to provide proper guidance but not close enough to pinch the label stock. (0-
1 mm gap on either side) If the label stock is pinched by the guides, poor print
quality or feeding problems could result.
9. Feed the label stock further into the Printer until it senses the label and
automatically feeds it through the Printer. If the Printer fails to feed the label stock,
press the Load/ Feed button on the front panel while continuing to guide the label
stock into the Printer. If the Printer does not automatically grab and feed the stock
or continues to feed the stock without stopping, check the Gap Sensor position or
mode (Section 2C or 2D).
2C. Adjusting the Gap Sensor Position
If you are using label stock other than standard square / rectangular die-cut labels such
as circular die-cut labels or through-hole stock, use the instructions below to adjust the
position of the label stock gap sensor. The sensor can be adjusted using the slide bar on
the inside of the Printer. Below the slide bar is a measurement that represents the
distance between the edge of the label stock and the sensor. Measure the distance
from the edge of the label stock to the correct position on the stock. Set the sensor so
the side of the slide bar lines up to this measurement. See the dashed line in the
illustration below.
Important Note: You must adjust the stock sensor before loading nonstandard label stock.
