Pro Spot i4 - Double-Sided Welding; PS-500 Double-Acting Spot Gun

5 Double-Sided Welding
The spot gun is used for the following weld programs:
• Two-Sided spot welding - HSS Galvanized steel, Mild steel, Weld Bonding,
Boron Steel, Pulse welding and OEM, Custom Modes
(see section 4.8 “Setting the default welding programs”)

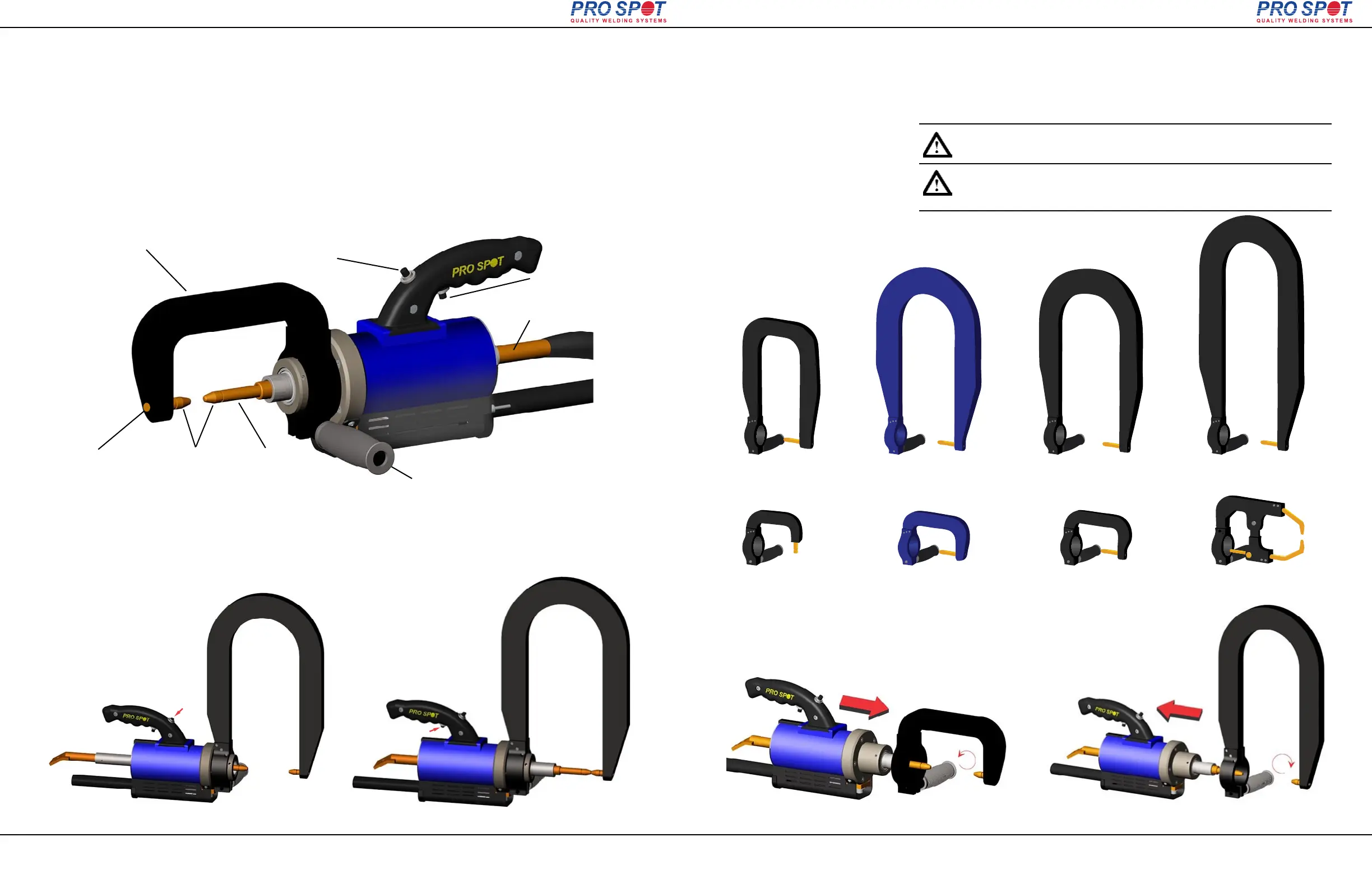

Figure 5.1 PS-500 Spot Gun - Component Diagram
Page 17
All Info Copyright © Pro Spot International Inc.
F-44
Release Trigger Switch
F-44
Weld Trigger Switch
PS-103-CM
20mm Shank
PS-302
C-Arm
PS-025
Welding Cap
PS-1101-CM
60mm Shank
PS-5203
Clamping Handle
Weld Shaft
Push this button to open electrodes wide. Push this button to close electrodes and weld.
5.1.2 Using the Double-Acting Gun
5.1.1 PS-500 Component Diagram
5.1 PS-500 Double-Acting Spot Gun
5 Double-Sided Welding
i4
5 Double-Sided Welding
Page 18
All Info Copyright © Pro Spot International Inc.
Figure 5.2 i4 Extension Arms
Loosen the handle and pull off the C-arm... Now, insert the extension arm and tighten the handle.
The Pro Spot i4 comes with a variety of extension arms to accomodate any weld-
ing job situation.
Please refer to fig. 5.3 for details on what welding electrodes to use with each
extension arm.
NOTE: Extension arms marked “optional” are available from your local
distributor or online at www.prospot.com
5.2.1 Switching to extension arms
5.2 Extension Arms
i4
PS-52
Wheelhouse Arm
PS-307
(optional)
PS-308
(optional)
PS-305
508mm Extension Arm
PS-306
(optional)
PS-503-W
(optional)
PS-302 C-Arm PS-403 (optional)
C-X Adapter
REMARQUE: bras d'extension portant la mention «facultatif» sont
disponibles à partir de votre Distributeur régional ou en ligne à
www.prospot.com
