Pro Spot i4 - Extension Arms; PS-500 Electrode Alignment

All Info Copyright © Pro Spot International Inc.
5 Double-Sided Welding
Page 19
5.2.2 Extension Arms and Welding Electrodes
Different extension arms require the use of different welding electrodes.
Use charts in fig. 5.3 and 5.4 to determine the correct combination of extension
arms and welding electrodes.
IMPORTANT! Using incorrect welding electrodes with extension arms
may result in weak welds and/or damage to your welder.

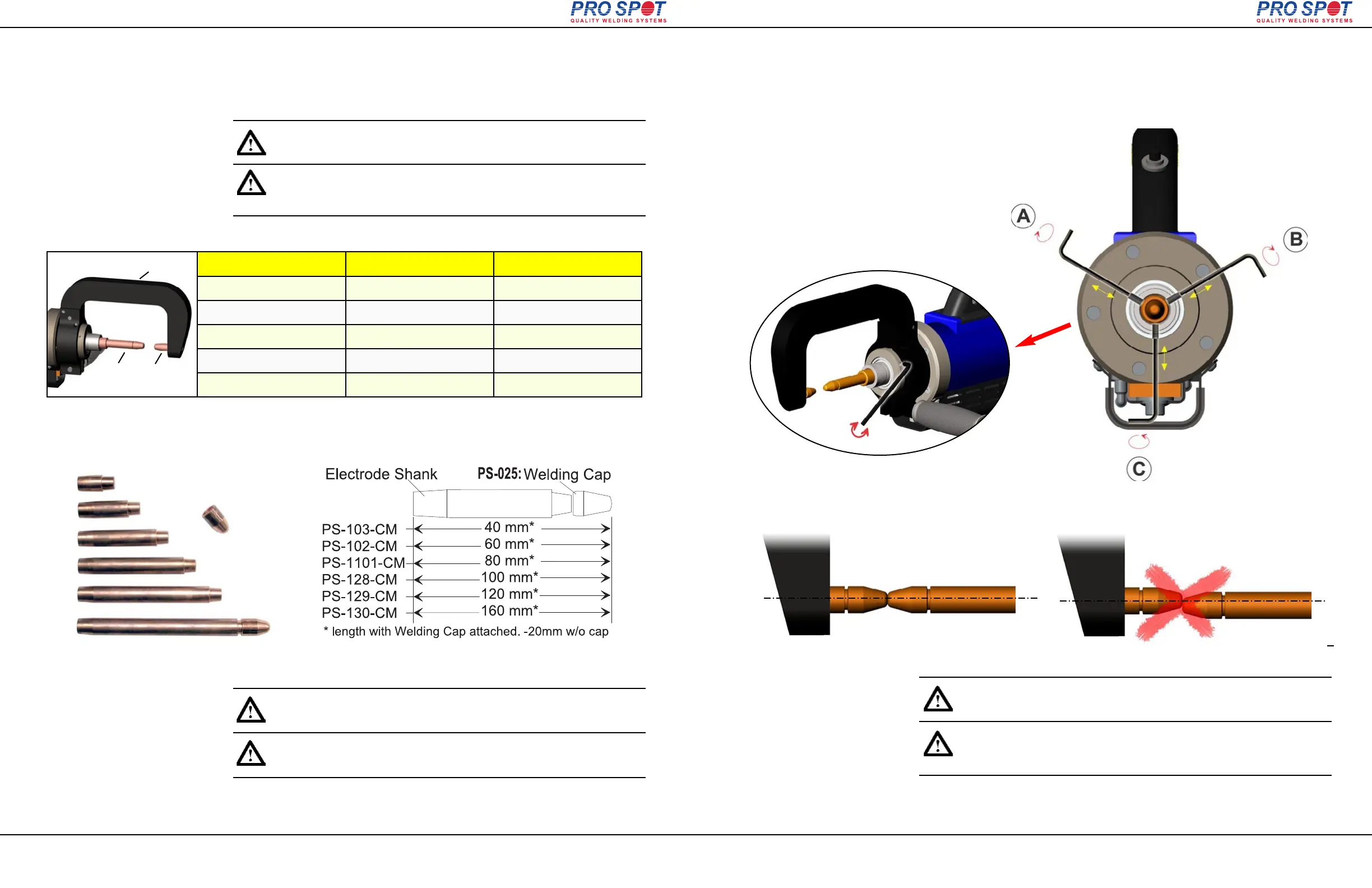

Figure 5.3 Extension arm - Welding electrode configuration chart
Figure 5.4 Welding electrode selection chart
NOTE: PS-025 Welding Caps can be purchased in packages of 15 from
your local distributor or online at www.prospot.com
A B C
PS-302 PS-1101-CM PS-103-CM
PS-52-5/8 PS-1101-CM PS-1133-5/8
PS-403 see Sec. 5.7.3 see Sec. 5.7.3
PS-305 PS-1101-CM PS-129-CM
PS-503-W PS-1101-CM PS-128-CM
A
B C
i4
IMPORTANT! En utilisant des électrodes de soudage inexactes au bras
d'extension peut donner des soudures faibles et / ou endommager votre
soudeur.
REMARQUE: PS-025 caps de soudure peuvent être achetés en paquets de 15
à partir de votre distributeur local ou en ligne à www.prospot.com
5 Double-Sided Welding
5.3 PS-500 Electrode Alignment
Page 20
All Info Copyright © Pro Spot International Inc.
IMPORTANT! Always maintain proper electrode alignment. Not doing
so may result in weak, substandard welds!
Figure 5.5 Electrode Alignment
Use the set screws (A, B, C) to align the electrodes. Ex: to move electrode down,
loosen screw (C) and tighten screws (A and B).
CORRECT
WRONG
i4
IMPORTANT! Toujours maintenir l'alignement des électrodes appro-
priées. Ne pas le faire peut conduire aux soudures faibles de qualité
inférieure!
