8 i4 Log Feature
Page 37
All Info Copyright © Pro Spot International Inc.
8.2 Download the Log file for print
8 i4 Log Feature
i4
1. Take flash card out of the i4 and insert in a PC flash card reader.
2. Open the ADVANCED directory.
3. Open ad_log directory.
4. Find PROSPOT.LOG file and copy it to your hard drive.
5. Open Weld_Log directory, locate “Weld Log v1.2.xlt” template.
6. Open the template, click blue box "Process Log File"
select the PRO SPOT.LOG file that you just copied to your hard drive.
7. The data should fill in respective rows and columns.
NOTE: i4 Data Log will not process if header information has not been properly entered, for reference please
see the previous page of this document. Also, make sure that atleast one weld has been made on the machine
before processing Data Log.
IMPORTANT: Do not save over Weld Log template file - Use the “Save As” function to save a copy.

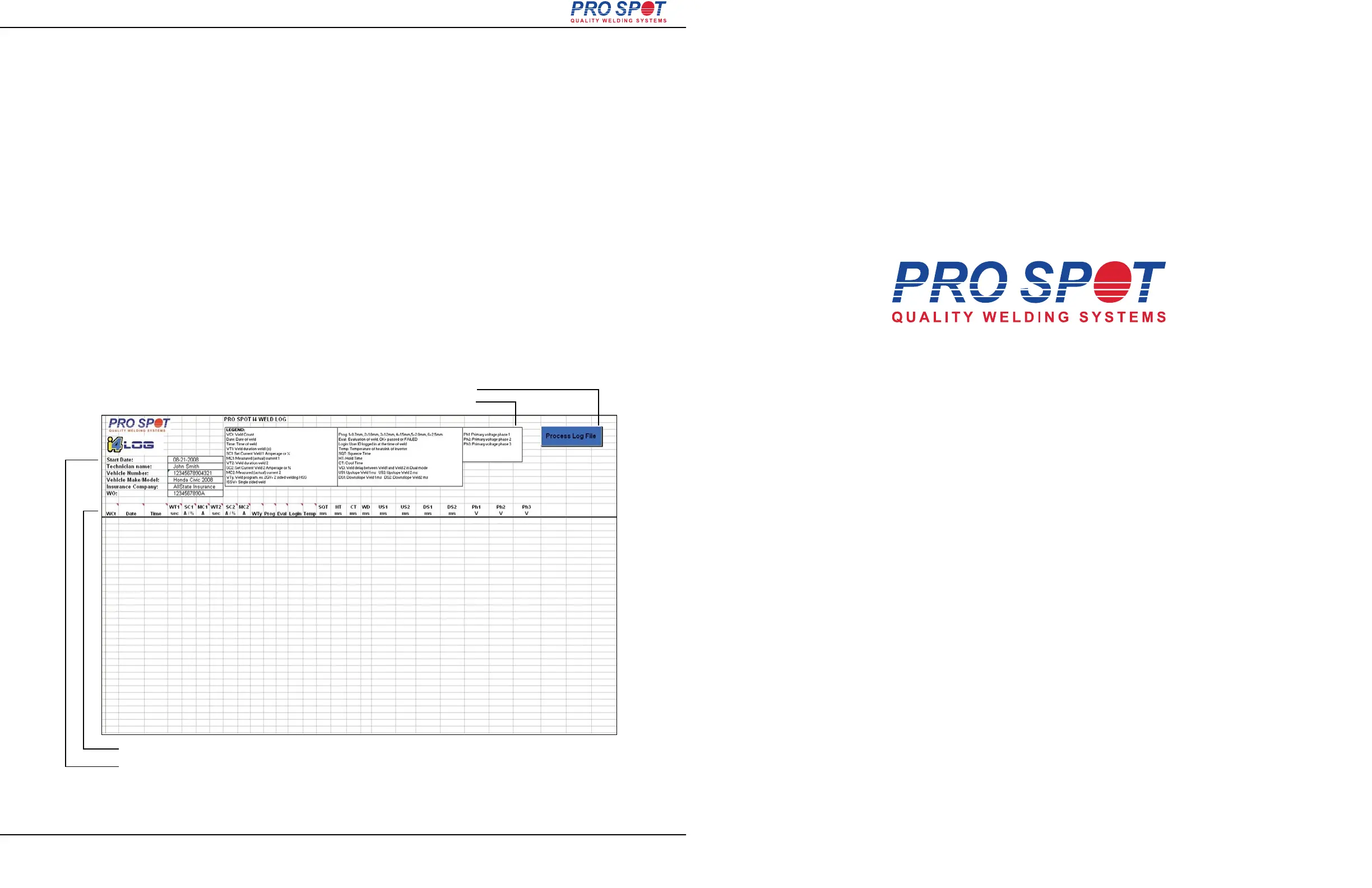

Sample of Pro Spot Weld Log template
Weld Log Header
Weld Data Information
Legend
Process Log File Button
2442 6870 6801 2GV 1 1OK 027C 1999 1000 2501 8 8 230 231 2328/20/2008 12:29:20 0.17
2441 6870 6801 2GV 1 1OK 027C 1999 1000 2501 8 8 230 231 2328/20/2008 12:25:10 0.17
2443 6870 6801 2GV 1 1OK 027C 1999 1000 2501 8 8 230 231 2328/20/2008 12:39:10 0.16
2444 6870 6801 2GV 1 1OK 027C 1999 1000 2501 8 8 230 231 2328/20/2008 13:29:00 0.17
2445 6870 6801 2GV 1 1OK 027C 1999 1000 2501 8 8 230 231 2328/21/2008 06:12:20 0.15
2446 6870 6801 2GV 1 1OK 027C 1999 1000 2501 8 8 230 231 2328/21/2008 06:12:30 0.17
2447 6870 6801 2GV 1 1OK 027C 1999 1000 2501 8 8 230 231 2328/21/2008 06:13:20 0.16
2448 6870 6801 2GV 1 1OK 028C 1999 1000 2501 8 8 230 231 2328/21/2008 06:17:09 0.13
2449 6870 6801 2GV 1 1FAIL 028C 1999 1000 2501 8 8 000 000 0008/22/2008 12:29:20 0.17
2450 6870 6801 2GV 1 1OK 028C 1999 1000 2501 8 8 230 231 2328/22/2008 12:31:20 0.13
2451 6870 6801 2GV 1 1OK 028C 1999 1000 2501 8 8 230 231 2328/22/2008 12:33:10 0.15
2452 6870 6801 2GV 1 1OK 028C 1999 1000 2501 8 8 230 231 2328/22/2008 12:34:20 0.17
2453 6870 6801 2GV 1 1OK 028C 1999 1000 2501 8 8 230 231 2328/22/2008 12:35:25 0.14
2454 6870 6801 2GV 1 1OK 028C 1999 1000 2501 8 8 230 231 2328/22/2008 12:36:08 0.17
2455 6870 6801 2GV 1 1OK 028C 1999 1000 2501 8 8 230 231 2328/23/2008 12:29:21 0.17
2456 6870 6801 2GV 1 1OK 028C 1999 1000 2501 8 8 230 231 2328/23/2008 12:30:20 0.17
