2 Installation Instructions ProfiHub B5+
2.1 Location
The ProfiHub B5+ can be installed everywhere in a non-hazardous area that complies with IP 20 (DIN
40 050) and the specified temperature range of -25 to +70
o
Celsius.
2.2 Position
The ProfiHub B5+ can be installed in every position, but it is recommended to install it with the cables
pointing down. In this position it is also easier to read the status LEDs.
2.3 Mounting
The ProfiHub B5+ can be mounted on 35 mm DIN-rail with a minimum width of 167 mm. Mounting
brackets are available for mounting the B5+ directly on a wall. The ProfiHub B5+ has only been UL
and DNV approved with 35 mm DIN-rail mounting!
The supplied rubber studs need to be placed on the back of the housing of the ProfiHub B5+ for extra
fixation. This is to prevent the product to potentially slide off the DIN-rail. See
Fig. 9
for an example.
When used in DNV environments these rubber studs need to be installed!

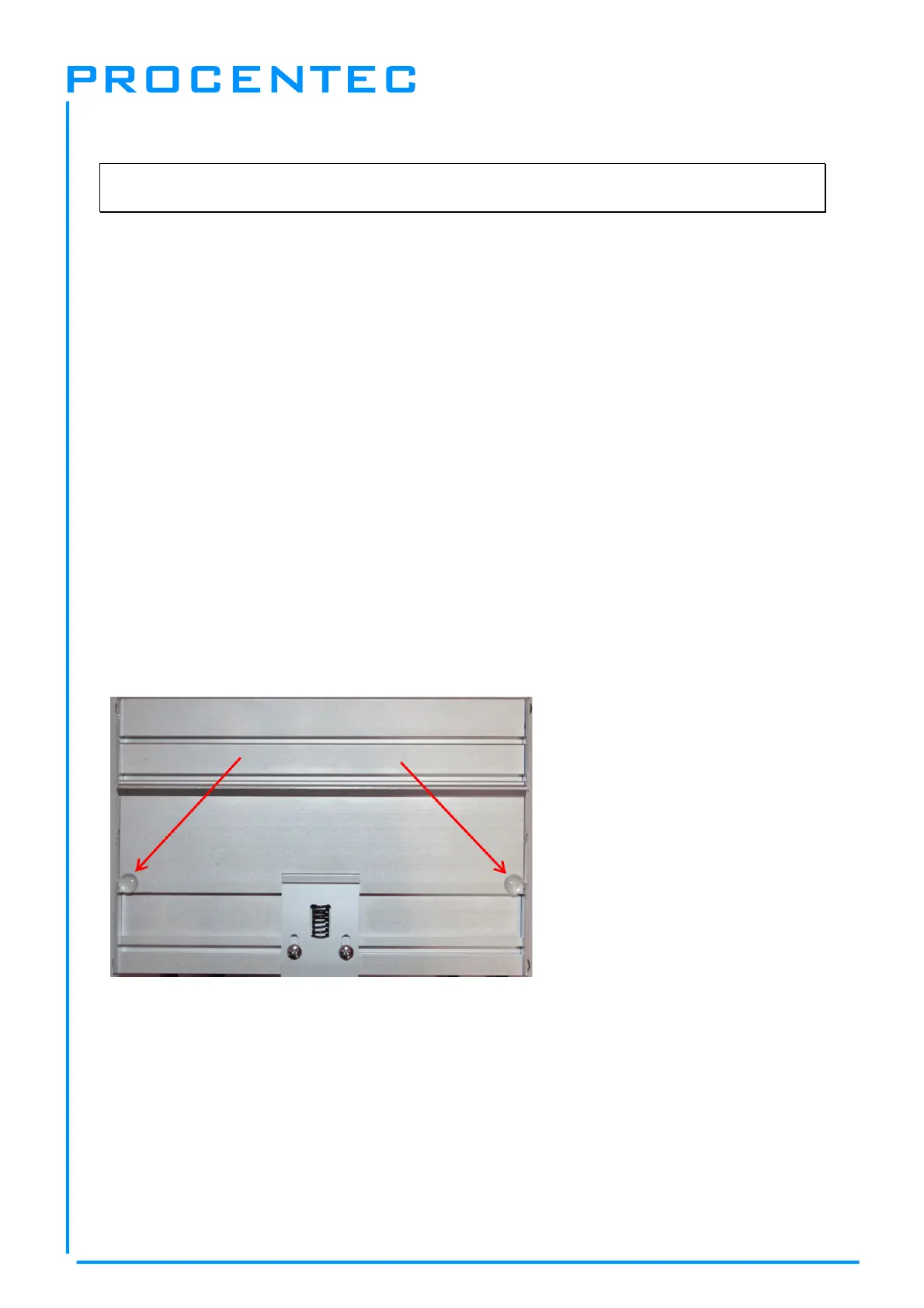

Fig. 9
Rubber studs on backside of housing
