ProfiHub B5+ / B5+RD User Manual

_______________________________________________

Version 2.0 – July 2014 Page 31 / 56

3.3.2 Statistics

You can choose which Statistics can trigger a diagnostic message, because not all statistics are

interesting in all networks. For example, Syncs have been disabled by default because this is not a

statistic that is suitable for PROFIBUS health monitoring.

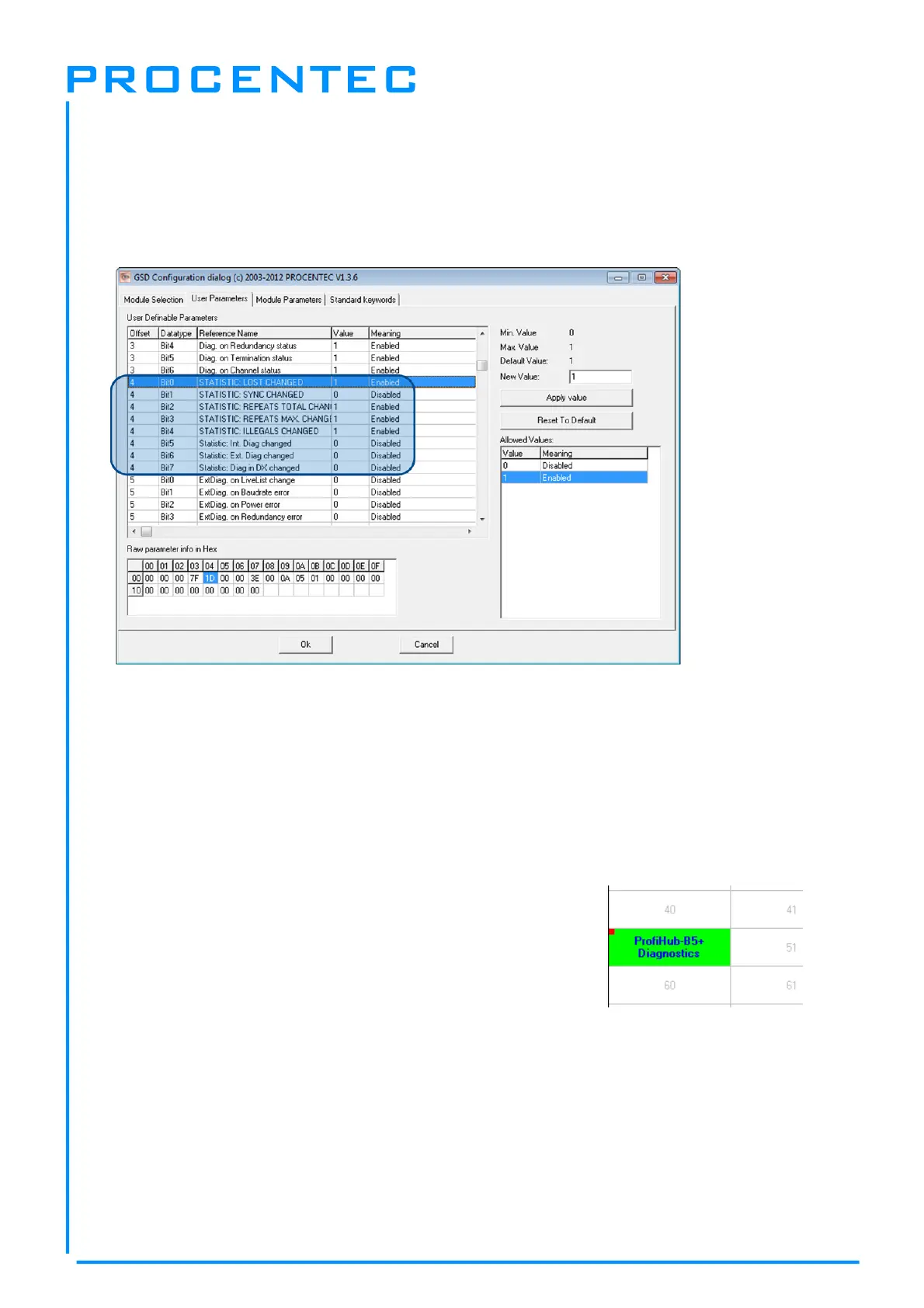

Fig. 22 – You can choose which statistics trigger a diagnostic message

The following Statistics can trigger a diagnostic message of the Diagnostic Device:

 Lost changed

 Sync changed

 Repeats (total) changed

 Repeats (max) changed

 Illegals changed

 Internal Diagnostics changed

 External Diagnostics changed

 Diagnostics in Data Exchange changed

3.3.3 Extended Diagnostics on Events change

For more critical applications you can choose to enable the ‘Extended

Diagnostics’ option for each of the previously mentioned events. In the

case of such an event, the Diagnostics Device will send out a

diagnostics message with the ‘Extended Diagnostic’ bit on. In a

Busmonitor tool such as ProfiTrace the extended diagnostics bit will

appear as a red blinking square.

All Events described in paragraph 3.3.1 can trigger the Extended Diagnostic bit of the Diagnostic

Device. By default, the Extended Diagnostic option is disabled. Each item can be enabled individually.
