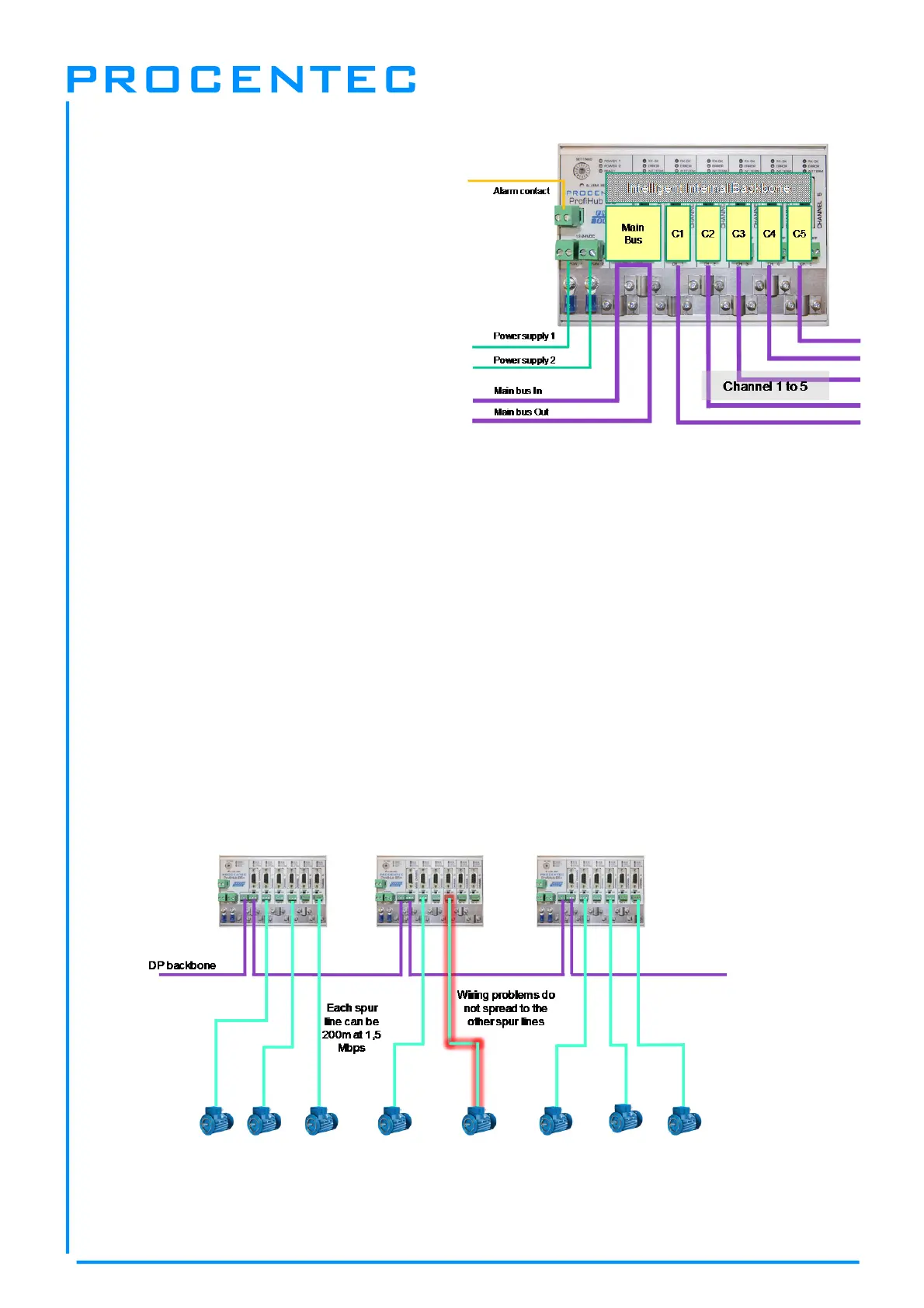

Fig. 2 - ProfiHub connections
1.1 Product Features
 5 Galvanic isolated outgoing channels
(repeater segments).
 Advanced Diagnostic capabilities (B5+RD)
 Transparent for all PROFIBUS DP
protocols.
 DP - RS 485 specifications for each
channel.
 Cable redundancy for channel 4+5
 9.6 Kbps to 12 Mbps.
 31 devices per channel.
 1200 m spur line length (depends on transmission speed).
 Redundant power supply
 No limit in serial placement or cascading of ProfiHubs.
 Alarm contact, with manual reset button.
 No address required (except for the B5+RD option).
 Integrated termination facilities (switches).
 Configurable grounding system (direct or capacitive).
 IP 20 classification
 Increased temperature range
 DNV / offshore Certification
 UL approvals
Fig. 3 - Long spur lines to instruments and the possibility to remove/insert them during operation. Short
circuit protection on each spur line is automatically provided.

Procentec ProfiHub B5 Plus Specifications

General

Brand	Procentec
Model	ProfiHub B5 Plus
Category	Repeater
Language	English
