2.2.6 Reinstall fuse holder and connect the power cord.

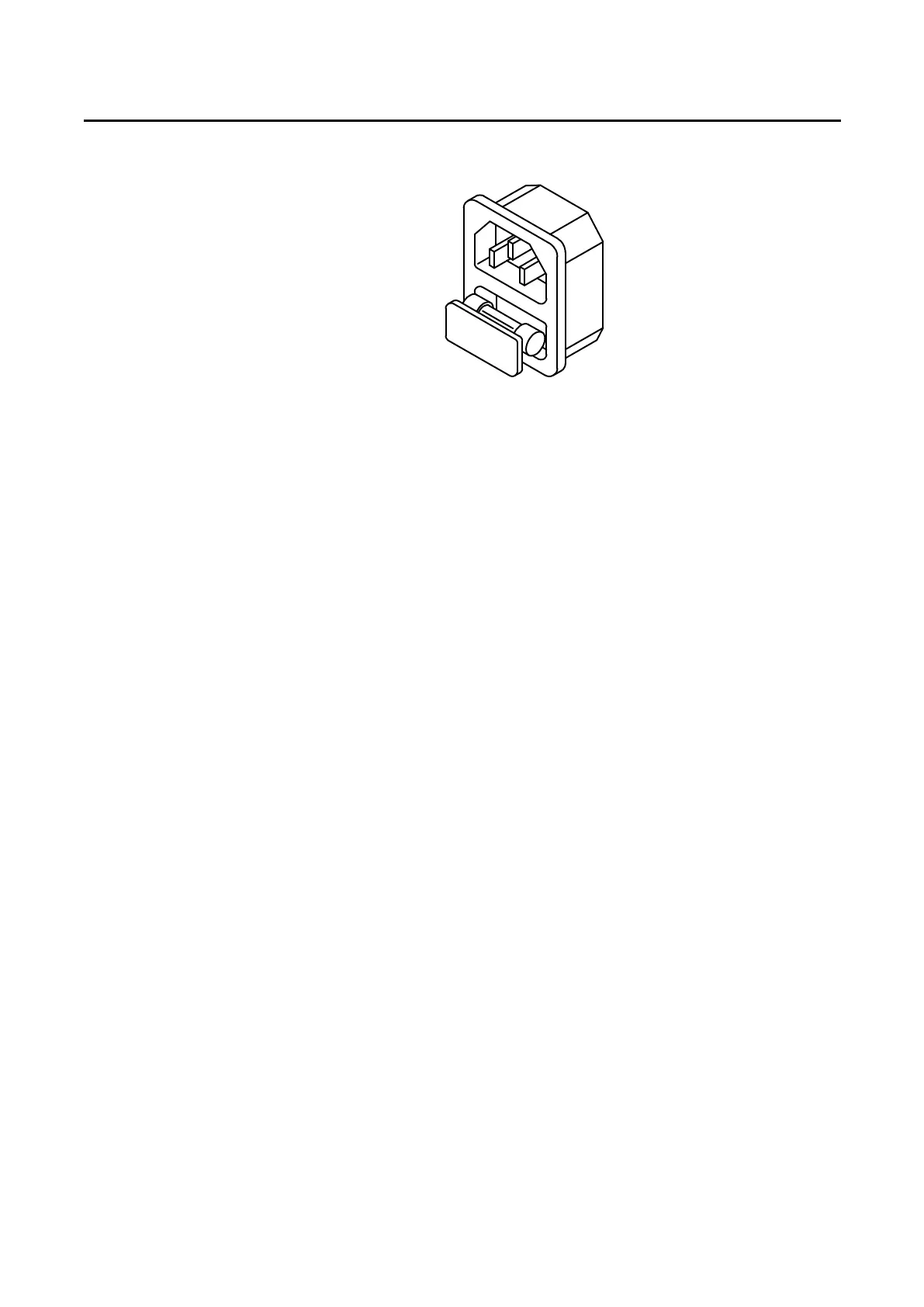

Fig.2-2 AC LINE RECEPTACLE
2-3 Grounding requirements
The 3260A Series High Power Electronic Load is equipped with three conductor cable which
plugs in an appropriate receptacle to ground the instrument's cover.
2-4 Adjust the feet
The 3260A Series High Power Electronic Load is equipped with feet and tilt stands installed
and is ready for used as a bench instrument.
The feet provide a good viewing angle for bench-top use.
2-5 Rack mount
The 3260A Series High Power Electronic Load is designed to permit mounted in a standard
19 inches rack for system application.
2-6 Environmental requirements
The operating temperature should keep between 0 degree and 40 degree, while the ideal
operating temperature is 25 ± 5 degree.
2-7 Repairing
If the instrument is damaged, please attach a tag to the instrument to identify the owner and
indicated the require service or repairing. And inform the Prodigit sales and service office or
representative.
