Prodigit 3260A Series - Appendix I 3260 A R1.00 Edition Wave Form Data Bank

PRODIGIT 3260A Series Operation Manual I - 1
Appendix I 3260A r1.00 Edition Wave Form Data Bank
3260A Series High Power electronic load module provides built-in 11 sets totaling 55 banks which
are described as follows:
BANK A B C D E
sine wave 0 √2 2.0 2.5 3.0 3.5
1 1.5 1.6 1.7 1.8 1.9
2 3.0 3.1 3.2 3.3 3.4
C.F.= 2.0 3 P.F.=-0.85 P.F.=-0.80 P.F.=-0.75 P.F.=-0.70 P.F.=-0.65
C.F.= 2.5 4 P.F.=-0.70 P.F.=-0.65 P.F.=-0.60 P.F.=-0.50 P.F.=-0.40
C.F.= 3.5 5 P.F.=-0.50 P.F.=-0.45 P.F.=-0.40 P.F.=-0.35 P.F.=-0.30
C.F.= 2.0 6 P.F.= 0.85 P.F.= 0.80 P.F.= 0.75 P.F.= 0.70 P.F.= 0.65
C.F.= 2.5 7 P.F.= 0.70 P.F.= 0.65 P.F.= 0.60 P.F.= 0.50 P.F.= 0.40
C.F.= 3.5 8 P.F.= 0.50 P.F.= 0.45 P.F.= 0.40 P.F.= 0.35 P.F.= 0.30
square wave 9 1.0 1.1 1.2 1.3 1.4
DC 10 √2dc 2dc 2.5dc 3.0dc 3.5dc

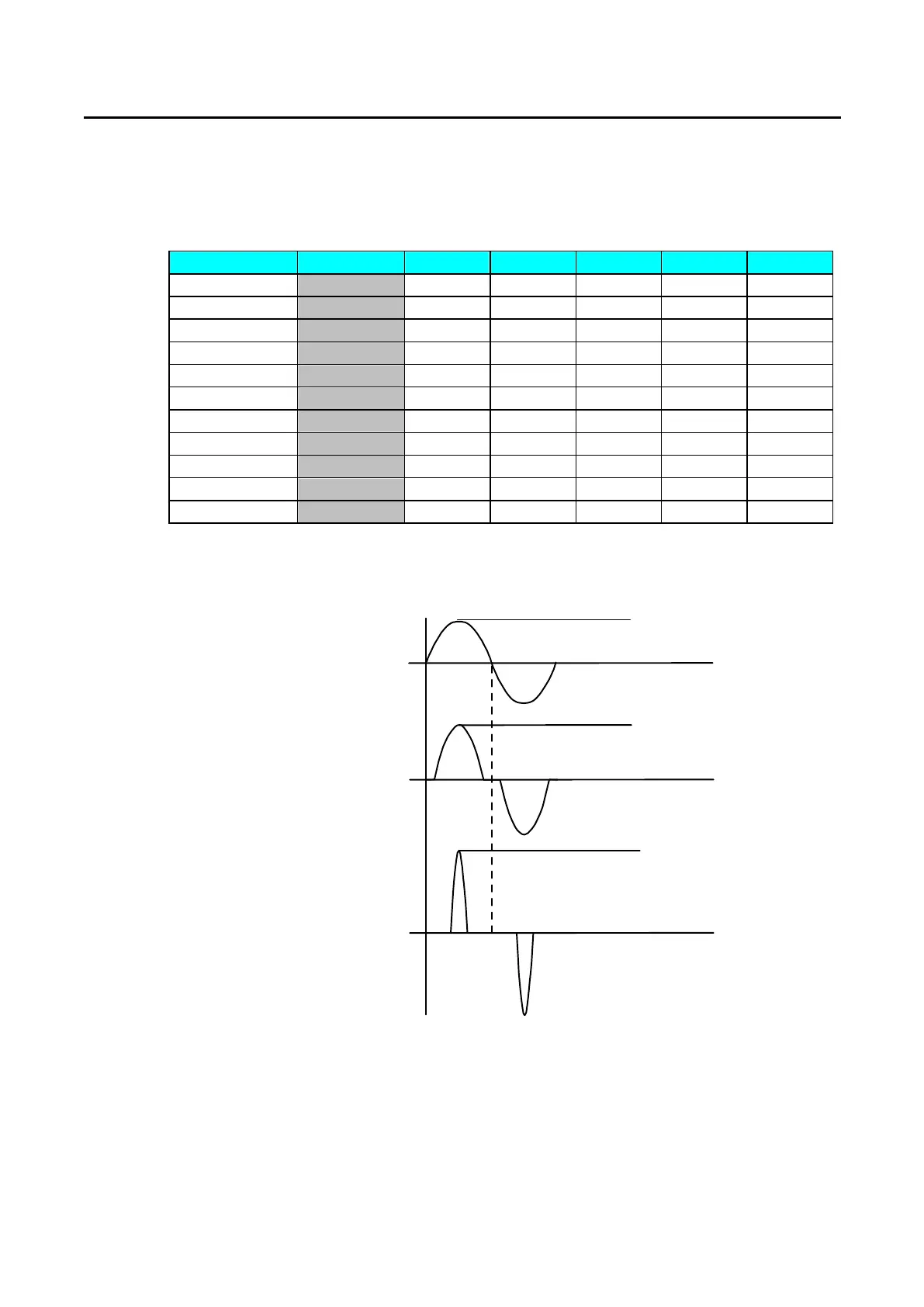

1.1 C.F. value of sine wave consists of √2～3.5 totaling 15 banks of which the definition is
described in figure below:
√2
Peak
2.0Peak
3.5Peak
Voltage Wave From
Current Wave Form
when C.F. = 2.0
Current Wave Form
when C.F. = 3.5
