Prodigit 3260A Series - Remote Control Port; Fig.2-4 Diagram of Remote Control Port

12 PRODIGIT
2-10 Remote control Port
The D-sub 9 pin connector on the rear panel connects the 3260A Series High Power
Electronic Load to the PRODIGIT mode 9931 remote controller and to replace the RECALL
option key 1 to 5 on the front panel of 3260A Series High Power Electronic Load.
1
2
3
4
5
STORE
1
2
3
4
5
6
7
8
9
NC
NC
NC
NC
D-sub 9 Pin
INSTRUMENT PROFESSIONAL
PRODIGIT
PRODIGITPRODIGIT
PRODIGIT
9931
1
REMOTE INTERFACE
2
3
4
5
9 Pin to 9 Pin 1.5M Cable

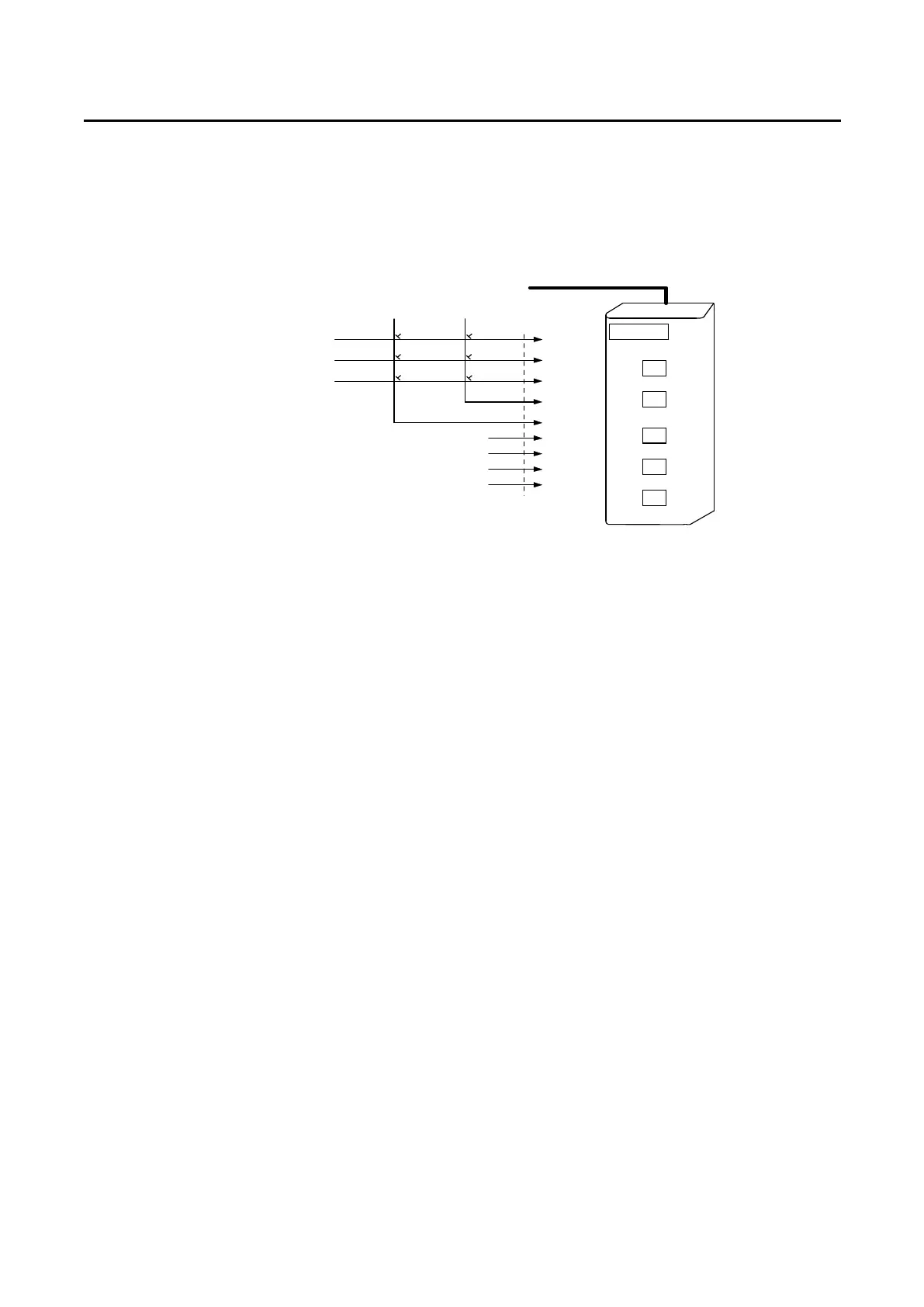

Fig.2-4 Diagram of Remote Control Port
