3.1.15 FREQ Key and LED indicator
C.C. mode: After depressing, LED will come on, the first depressing shows FREQ,
further depressing shows BANK (No such function for DC), another
pressing shows SYNC, depressing again will be off.
Linear C.C. and C.R. mode: LED will come on, the first depressing shows FREQ,
depressing again will be off.
For the following items, except for 3.1.15.3,
3.1.15.1 FREQ (For Frequency Setting) : Setting Range: DC , 0.1～400.0 Hz.
3.1.15.1 BANK (For Bank Setting ) : 0～10 totaling 11 banks (This function will be
invalid for DC).
3.1.15.3 SNYC (Current Bank Sync Signal Selection):
ON is external Sync, OFF is internal Sync.
3.1.16 AC/DC Load Input Connector
When Load Input Connector is used, be sure that the rated specification of the
voltage and current of the 3260A Series High Power Electronic Load shall not be
exceeded. Upon wiring, please refer to 3.4 lest the internal circuit and connector
should be damaged.
3.1.17 Vsense BNC, Voltage Sensing Input BNC Connector.
In order to solve the voltage drop of the conductor under the condition of big load
current, Vsense-CLIP cable can be used to connect with the specific point to be
measured thus obtaining the specific voltage value. Please refer to the application
information of Fig.3-2.
Connecting Method under small load current condition
Connecting Method under small load current condition

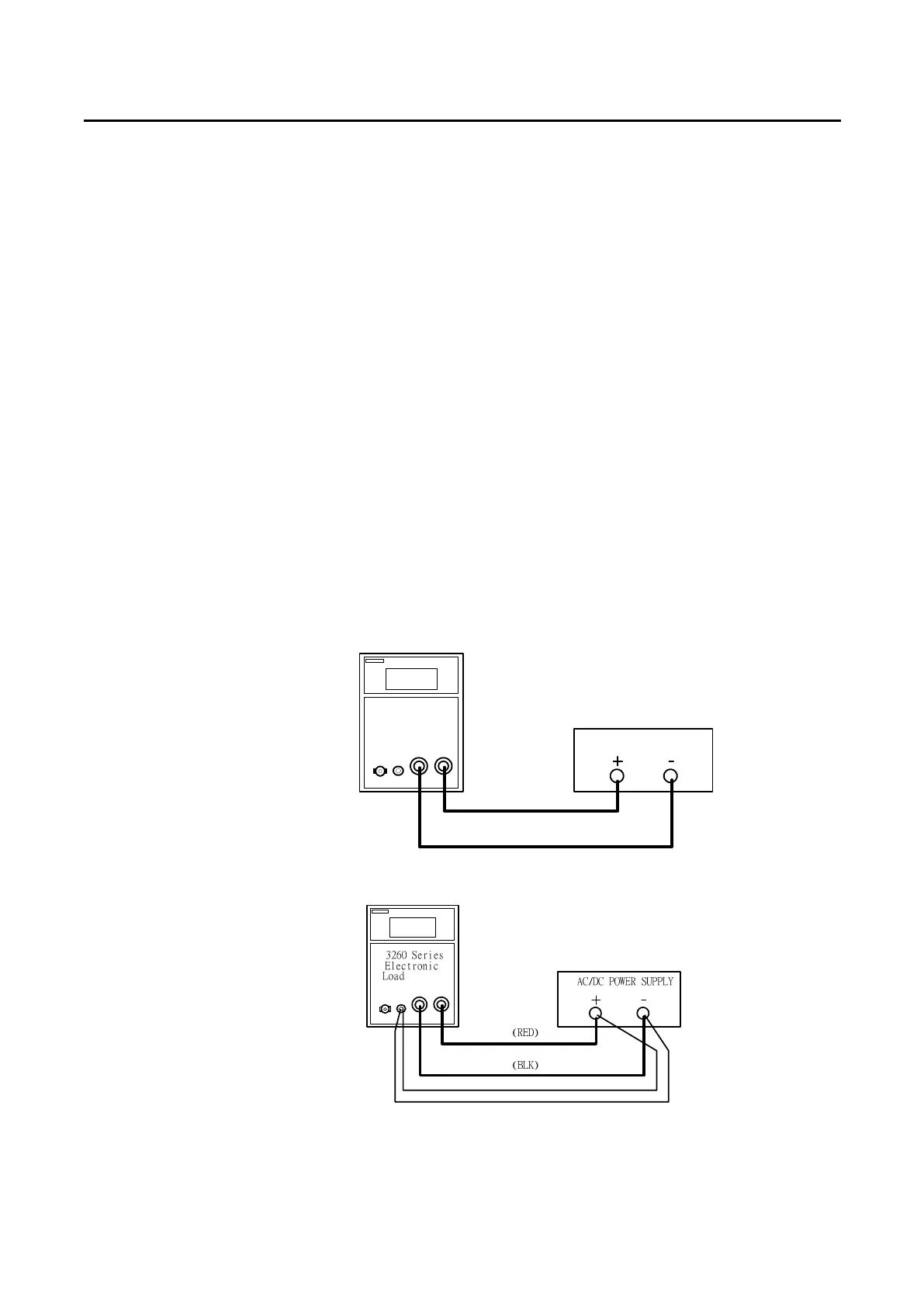

Fig.3-2 Typical Way for Connecting 3260A Series High Power Electronic Load
