Appendix I - 4 PRODIGIT

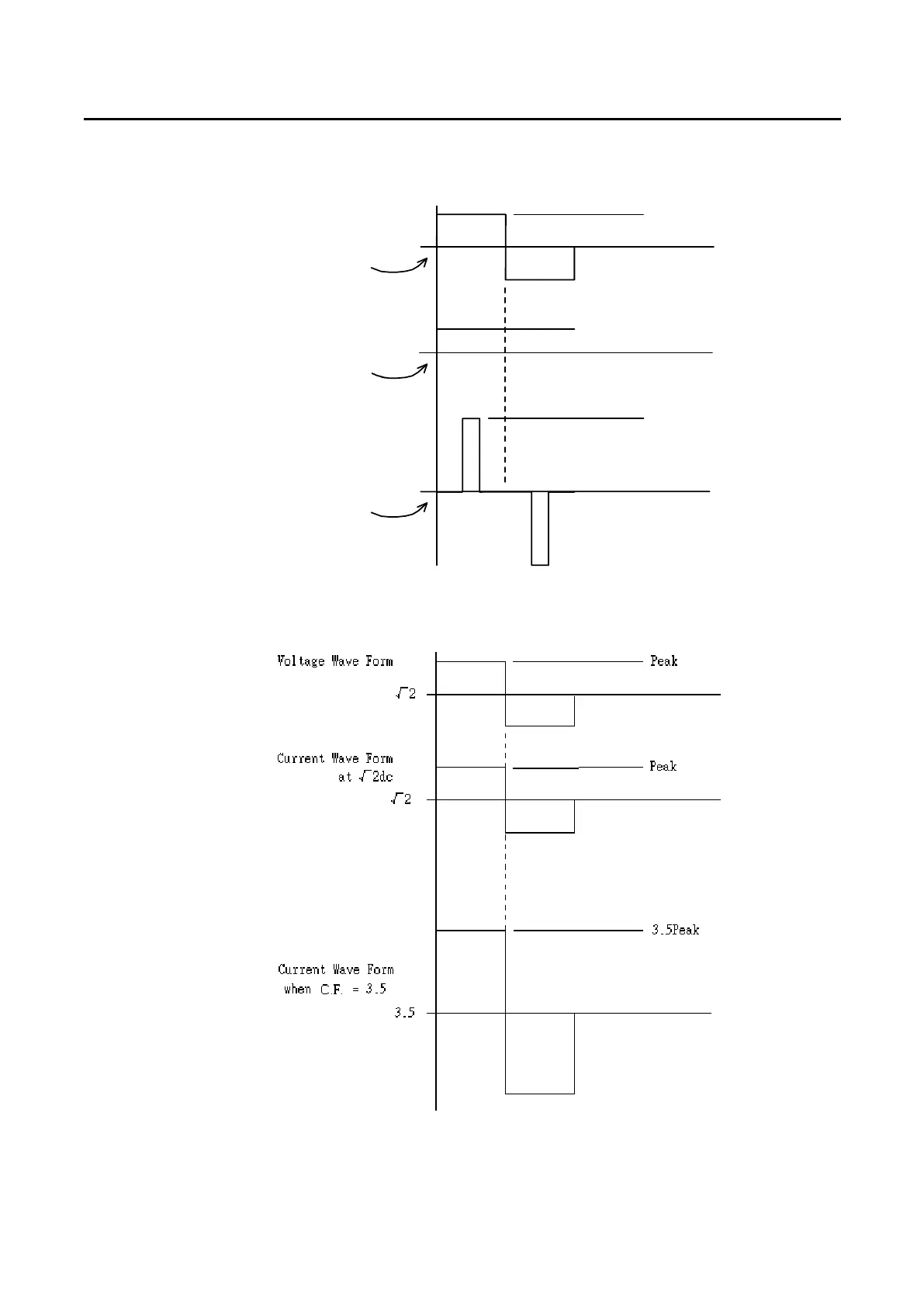

1.4 C.F. Value of square wave consists of 1.0～1.4 totaling 5 banks of which the definition
described in figure below:
√2
1.0
Peak
0.707Peak
3.4
3.4Peak
voltage Wave Form
when C.F. = 1.0
when C.F. = 3.4
Zero Crossing
Current Wave Form
Zero Crossing
Zero Crossing
Current Wave Form
1.5 DC Wave form information consists of √2 fold DC level totaling 5 banks of which the
definition described in figure below:
