4.4.3. Cable Management
NOTICE
Risk of property damage.
* Fasten the cable harness with a suitable strain relief near the main plug connector in order to
avoid the transmission of any tension, strains or vibrations.
* Ensure that there is minimum bending radius of 8 time the outer diameter of the cable harness.

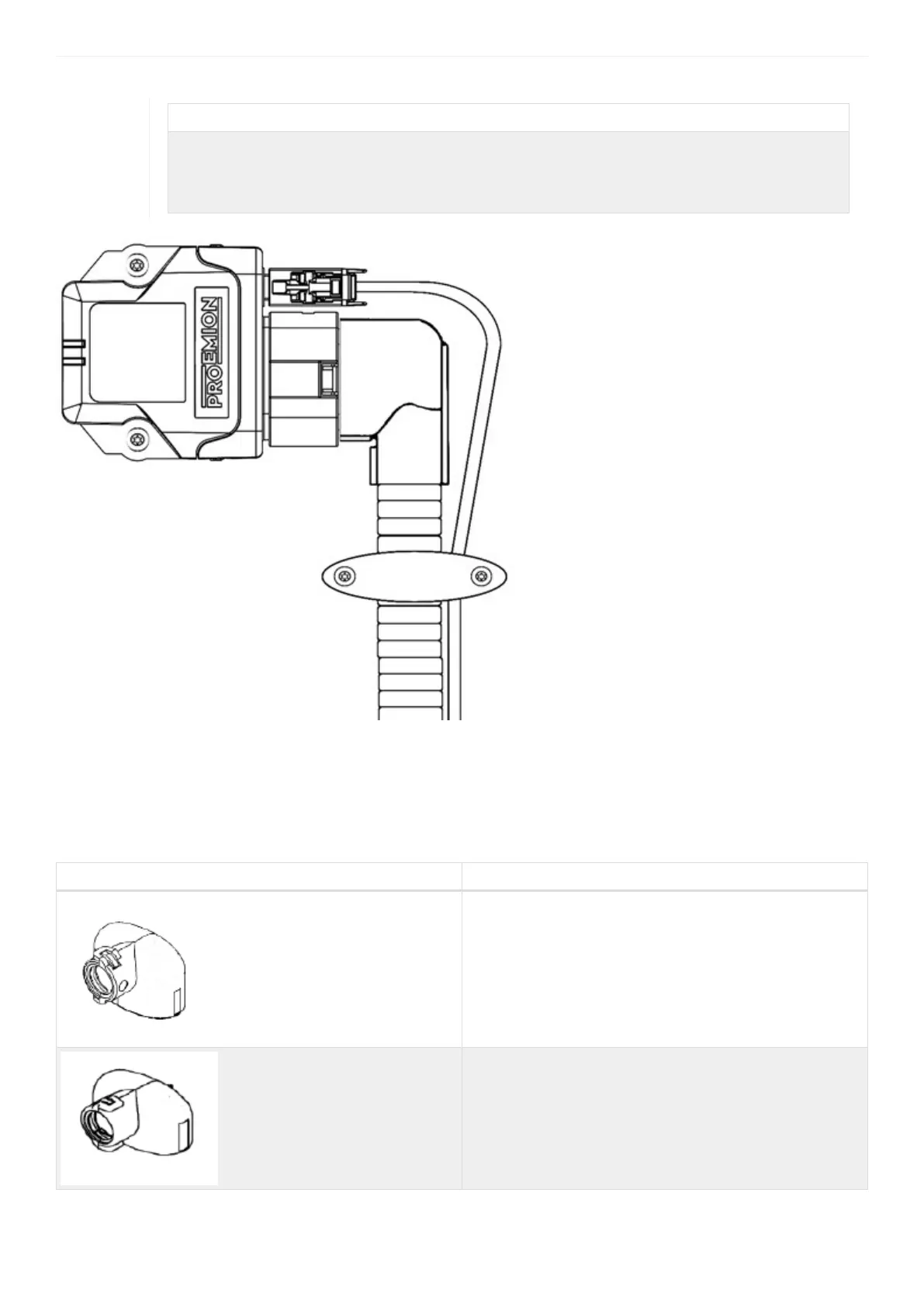

Figure 23. Cable Management
• Protect the connector and the cable with sufficient covers and cable tubing. Please refer to the Cover Supplier
for more information.
The following part numbers are recommended for the protective cover:
Symbol Part Numbers
7807174
7807207
