PROEMION CANlink wireless 4001 - Cables

4.4. Cables
4.4.1. Start Cable / Main Plug Connector
The cable CLW4K Starter Cable 6open 2dsub 1pw 2m (part number 136000197) is equipped with the following
connectors and open individual wires:
• 1 micro timer II socket,14-pin, female
• 2 D-sub, 9-pin, female (CAN1 and CAN2)
• 1 power connector

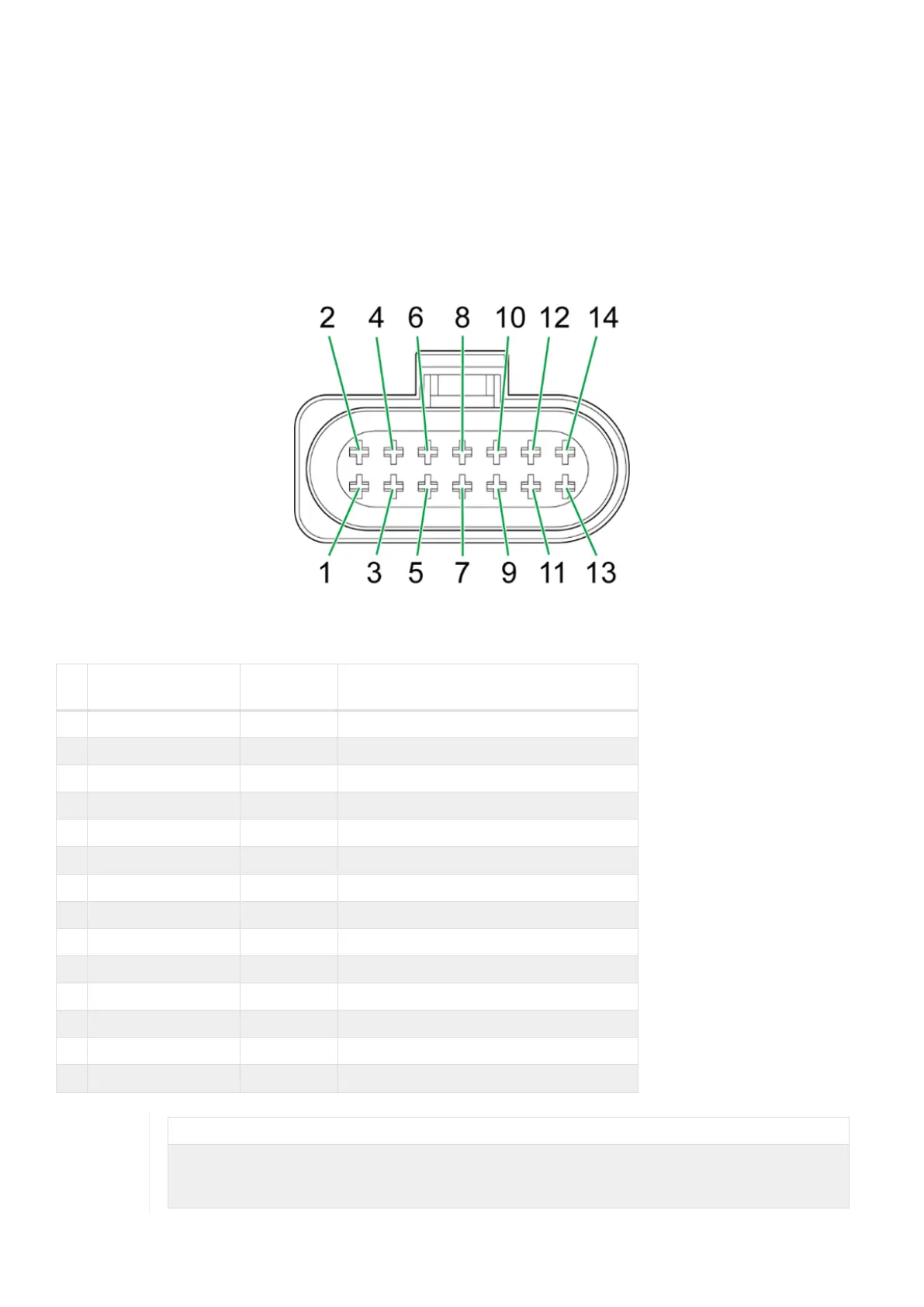

Figure 13. Micro timer II socket (14-pin, female)
Table 16. Start cable for main plug connector
Pi
n
Designation Color Description
1 Terminal 30 / V
CC
White Power supply (steady plus vehicle battery)
2 Factory setting 1 Brown Input
3 Terminal 31 / ground Green Power supply
4 Analog input 1 Yellow I/O input
5 Analog input 2 Gray I/O input
6 Not used
7 Digital output Blue I/O output
8 Terminal 15 Red Input (ignition signal)
9 Factory setting 2 Black Input
10 Terminal 31 / ground Violet Power supply
11 CAN2-High Gray-pink CAN, bidirectional
12 CAN2-Low Red-blue CAN, bidirectional
13 CAN1-High White-green CAN, bidirectional
14 CAN1-Low Brown-green CAN, bidirectional

INFORMATION
The open-end connectors are numbered on the strand ends.
The polarity also applies for the following cable:
* CLW4K start cable 6 open, 2 D-Sub, 1 pw, 2 m (part number 136000197)
CANlink wireless 4000 Device Manual
