5.4.2. Mounting Orientations
The view elements of the two LEDs on the device do not comply with the flammability class required for a fire
protection housing.
Fire protection of the housing is only guaranteed in the installation positions shown in figures A, B, C or D.
Please note that fire protection is not guaranteed in the installation positions shown in figures I and II.

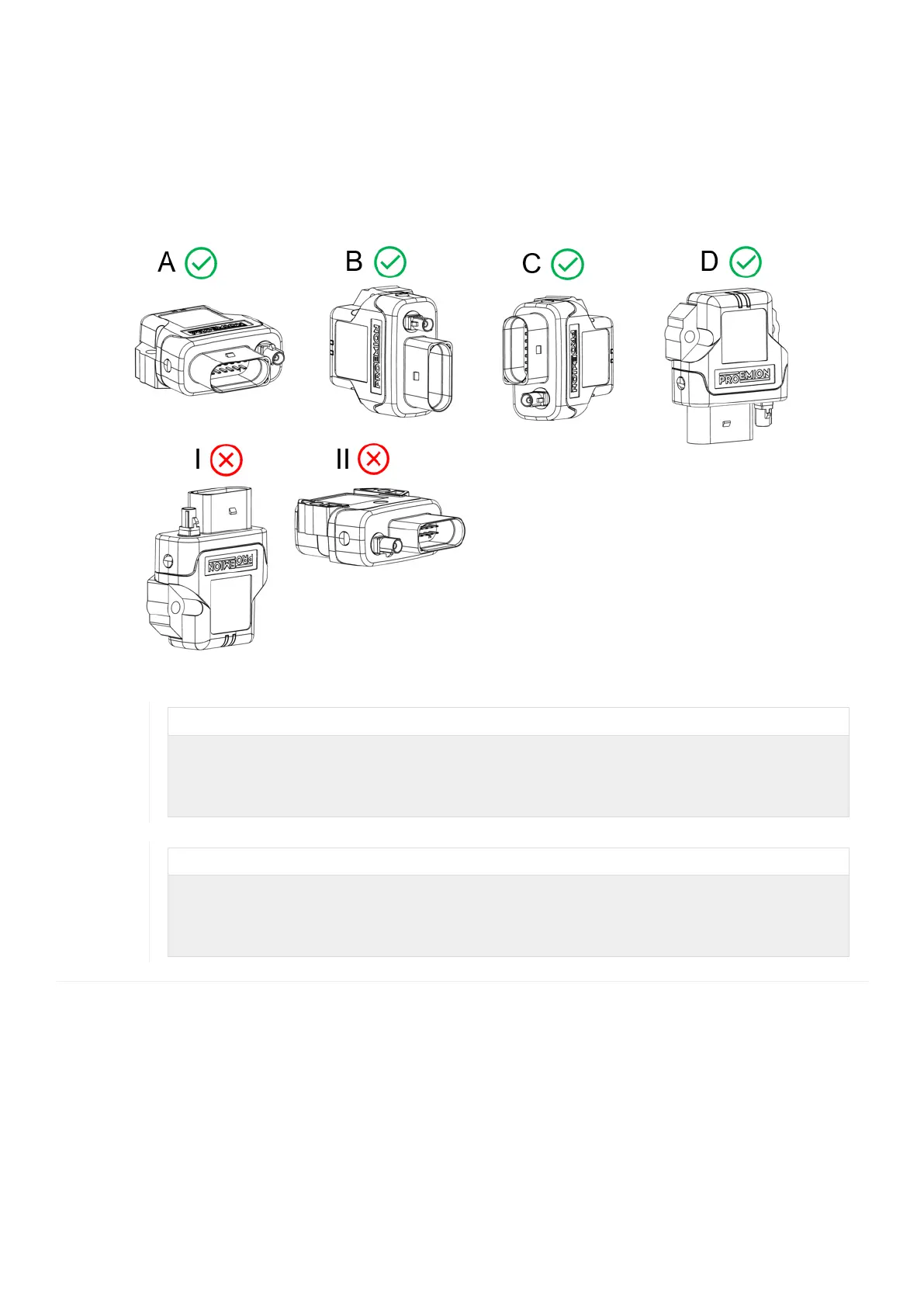

Figure 33. Mounting orientations of the CANlink wireless 4000
NOTICE
Water ingress
* Please make sure that the mounting orientation of your device is either as shown in figure A, B ,
C or D.
NOTICE
Reduced antenna gain
* Please be aware that the recommended mounting orientation for devices with internal antenna is
as shown in figure A.
CANlink wireless 4000 Device Manual
