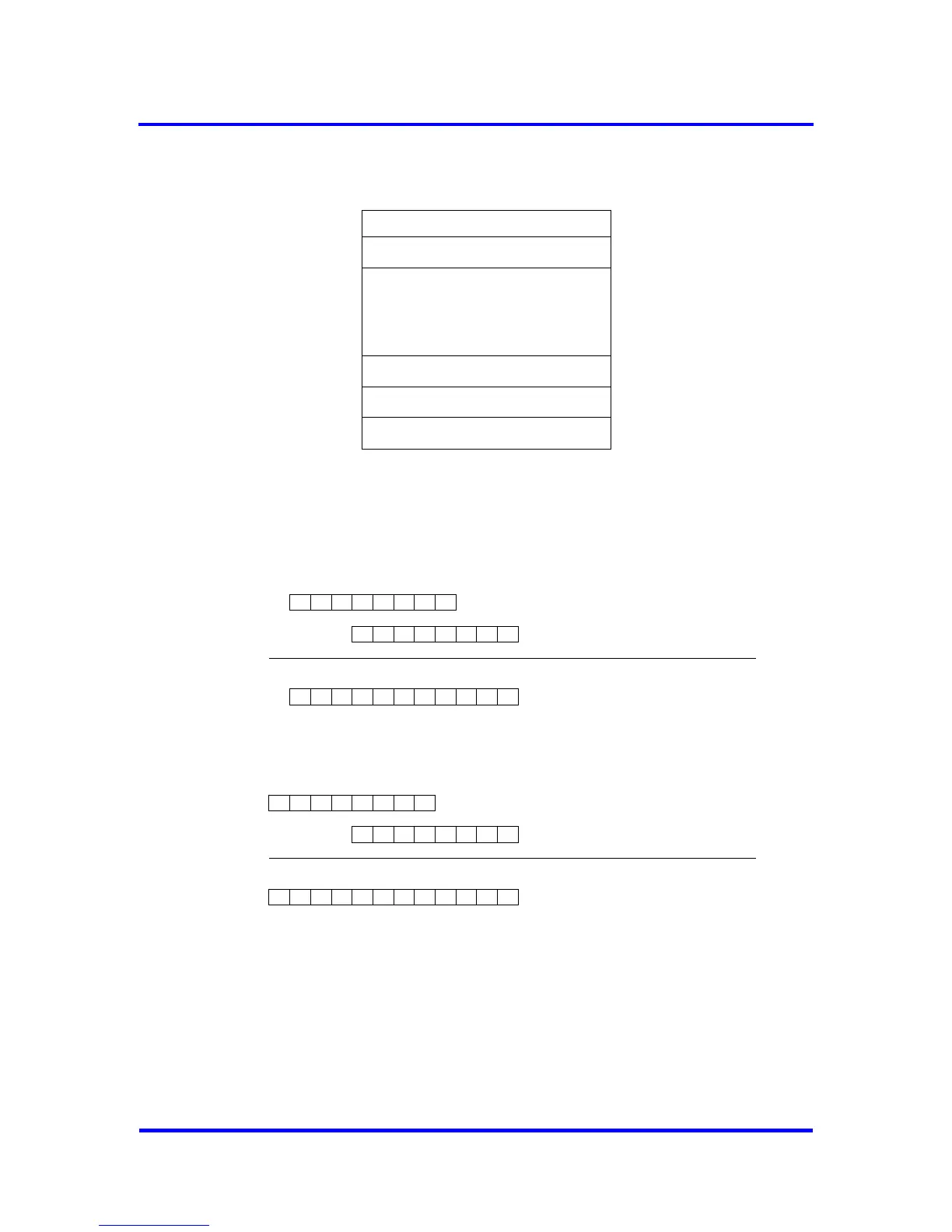

4 Memory Organization
Internal VPC3+C RAM (2K/4K Byte)
Segment 0
Segment 1
Segment 2
8/16 bit segment addresses
(pointer to the buffers)
Segment 254
Segment 255
Building of the physical buffer address:
2K Byte Mode:
7 0
Segment base address (8 bit)
0 0 0 0 0 Offset (3 bit)
+
10 0
Physical address (11 bit)
4K Byte Mode:
7 0
Segment base address (8 bit)
0 0 0 0 Offset (4 bit)
+
11 0
Physical address (12 bit)
