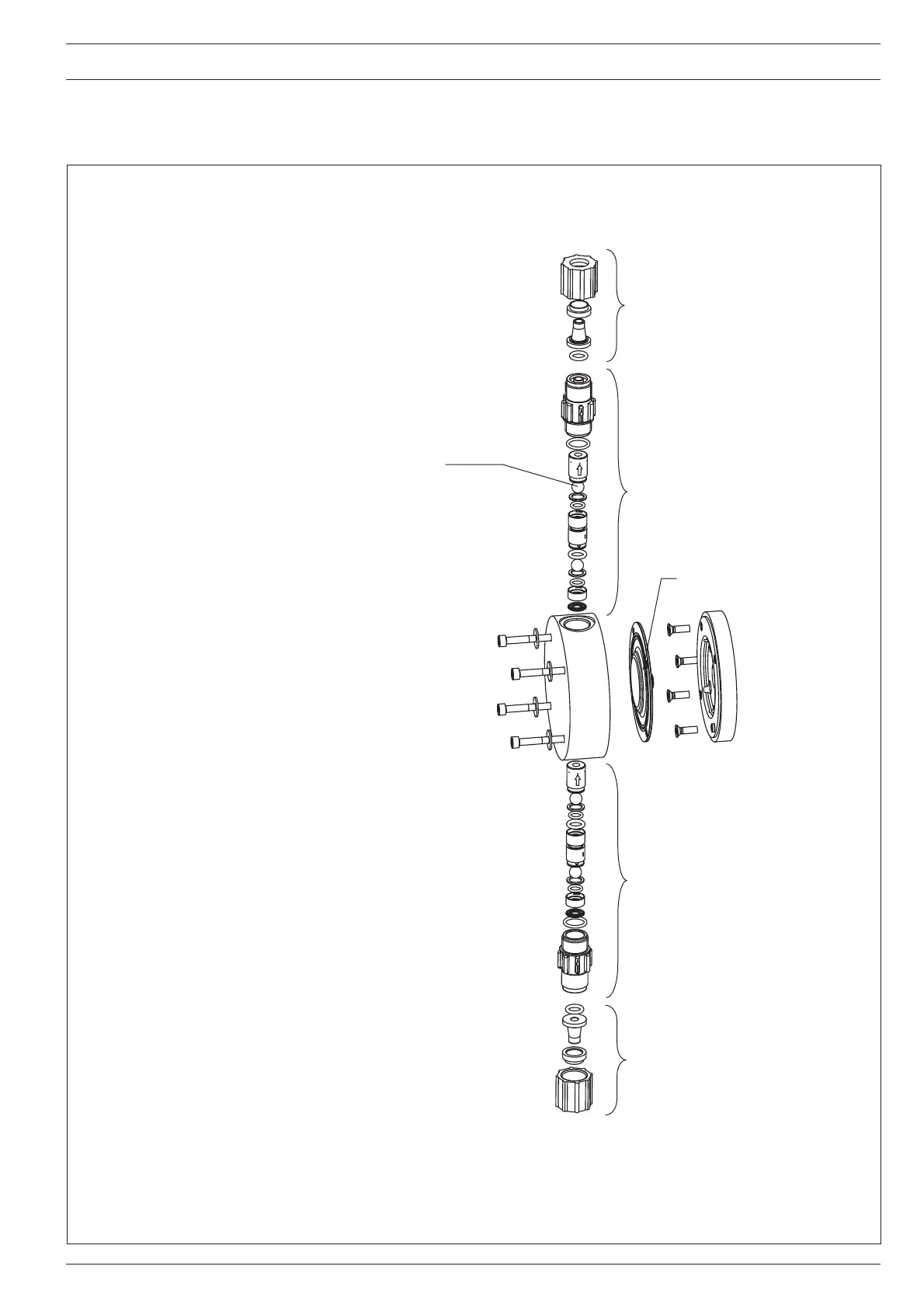

Exploded diagrams of liquid ends
Liquid end 0232
NP without coarse/fine bleed
The listed items are included in the spare parts kit.
Subject to technical alterations.
Spare parts kits for:
Type Material Order No.
0232 PCE / NPE 1001719
0232 PCB / NPB 1001728
1 seal set EPDM 1001776
1 seal set FPM 1001774
4 valve balls 404281
Connector kit
Suction valve set PCE 1001435
Suction valve set PCB 1001434
Diaphragm 0232 1000251
Discharge valve set PCE 1001439
Discharge valve set PCB 1001438
Connector kit 12/9 PCE 817049
Connector kit 12/9 PCB 817051
