ProMinent
®
Page 2
Storage, Transport and Unpacking / Device Overview and Control elements
3 Storage, Transport and Unpacking
Transport and store the gamma/ L in the original packaging!
Protect the packed gamma/ L from moisture and the effects of chemicals!
Environmental conditions for storage and transport:
Storage and transport temperature: –10 bis +50 °C
Humidity: < 92 % relative humidity
Check that the delivery is complete:
Delivery range • Dosing pump with mains lead
• Operating instructions manual with EU conformity declaration
• Accessories if applicable
4 Device Overview and Control elements
When reading this section it is helpful to fold out the overview “Control elements and key
functions”!

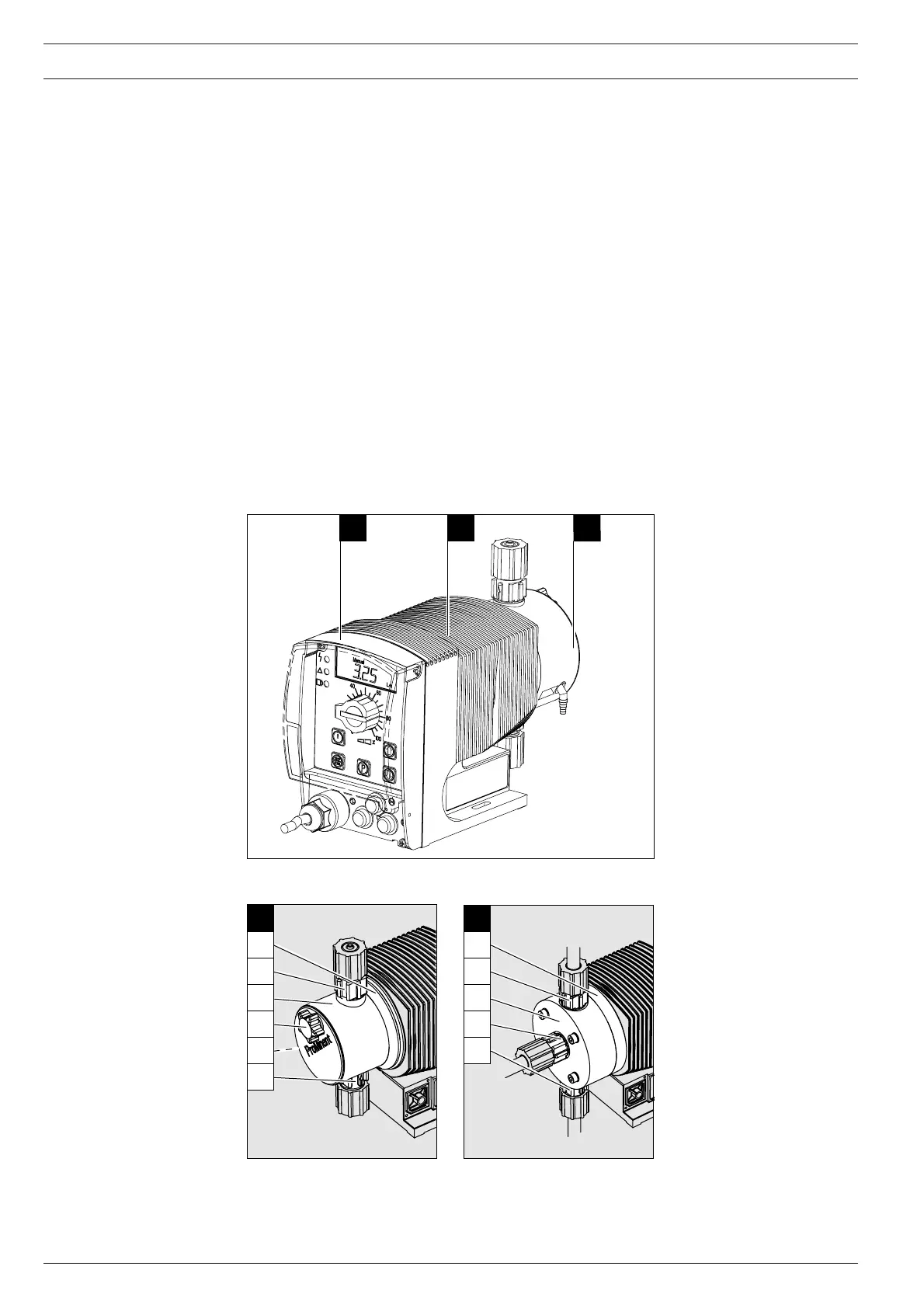

4.1 Device overview
3
3.1
a
d
b
f
g
c
3.2
a
e
b
d
c
1 2
1 Control unit
2 Power end
3 Liquid end
Fig. 01
a Backplate
b Liquid end
c Suction valve
d Discharge valve
e Bleed valve
f Coarse/fine bleed valve
g Bypass hose nozzle
Fig. 02 Fig. 03
