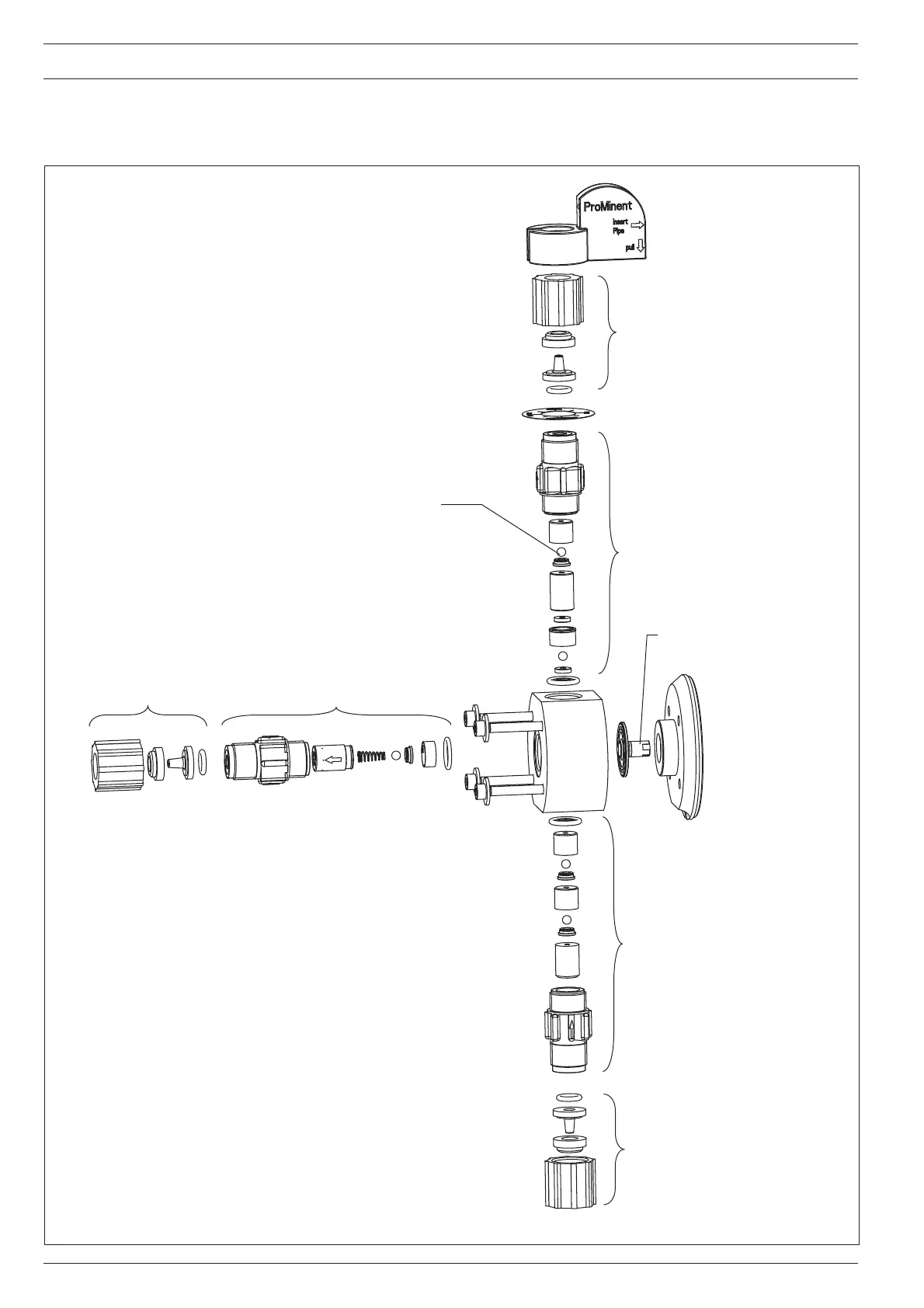

Exploded diagrams of liquid ends
Liquid end 1601 - 1005 (1605)
PP / NP self-degassing
The listed items are included in the spare parts kit.
Subject to technical alterations.
Spare parts kits for:
Type Material Order No.
1601 PPE 1001756
1602 PPE 1001757
1005 (1605) PPE 1001758
1601 PPB 1001762
1602 PPB 1001763
1005 (1605) PPB 1001764
1601 NPE 1001660
1602 NPE 1001661
1005 (1605) NPE 1001662
1601 NPB 1001666
1602 NPB 1001667
1005 (1605) NPB 1001668
4 valve balls 404201
Diaphragm 1601 1000245
Diaphragm 1602 1000246
Diaphragm 1005 1000247
1 seal set EPDM 1001674
1 seal set FPM 1001672
Suction valve set PPE 792644
Suction valve set PPB 792646
Suction valve set PCE 792119
Suction valve set PCB 792026
Discharge valve set PPE 1001067
Discharge valve set PPB 1001066
Discharge valve set PCE 1001065
Discharge valve set PCB 1001064
Connector kit 6/4 PPE 817160
Connector kit 6/4 PPB 817173
Connector kit 6/4 PCE 791161
Connector kit 6/4 PCB 817065
Connector kit 6/4 PPE 817160
Connector kit 8/5 PPE 817161
Connector kit 6/4 PPB 817173
Connector kit 8/5 PPB 817174
Connector kit 6/4 PCE 791161
Connector kit 8/5 PCE 792058
Connector kit 6/4 PCB 817065
Connector kit 8/5 PCB 817066
Connector kit 6/4 PPE 817160
Connector kit 8/5 PPE 817161
Connector kit 6/4 PPB 817173
Connector kit 8/5 PPB 817174
Connector kit 6/4 PCE 791161
Connector kit 8/5 PCE 792058
Connector kit 6/4 PCB 817065
Connector kit 8/5 PCB 817066
Vent valve PPE 1001063
Vent valve PPB 1001062
Vent valve PCE 1001061
Vent valve PCB 1001060
