PVT7
Liquid end SER, self-bleeding
without bypass
1051104
Spare parts kit 1047837
Diaphragm 1045456
1
4
5
8
10
9
6

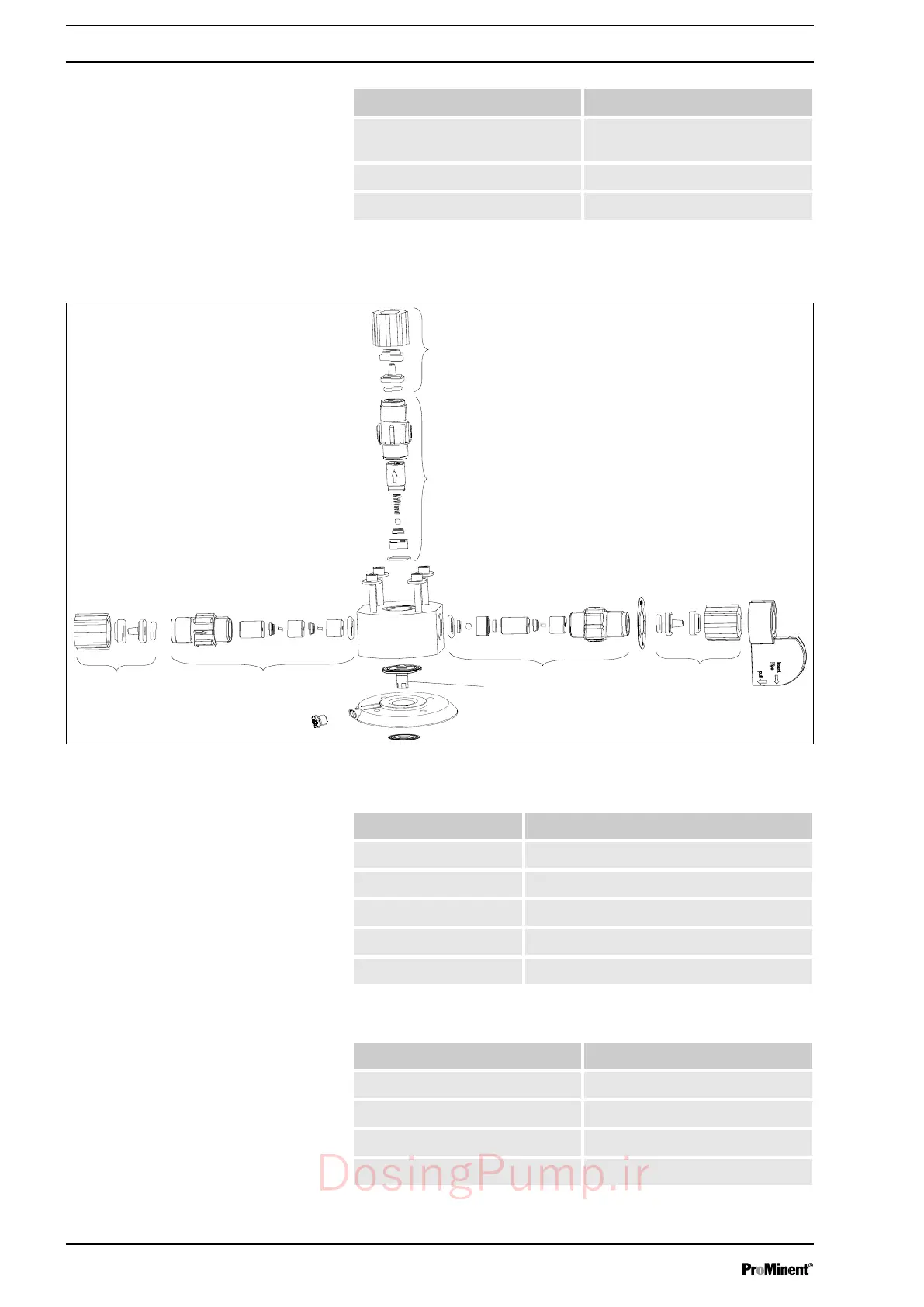

P_G_0047_SW
Fig. 61
Pos. Part
1, 9, 10 Connector kit
4 Bleed valve
5 Discharge valve
6 Diaphragm
8 Suction valve
Tab. 50: Liquid ends
Type Order No.
PPE_9 -
1602 1050937
1604 1050938
PPB_9 -
Liquid end gamma/ X 0220 (0424)
Liquid end gamma/ X 1602 - 1604
PP_9 and NP_9
Exploded drawings and ordering information
