Identifier Meaning
A "Flow Control" metering monitor is connected.
A diaphragm rupture indicator is connected.
The pump has created a log about the operation.
The pump is in the
‘Menu’
(Set up).
Further explanations can be found in the "Trouble‐
shooting" chapter.
The pump only shows the metering volume and
the capacity in the calibrated status in l or l/h or in
gal or gal/h.

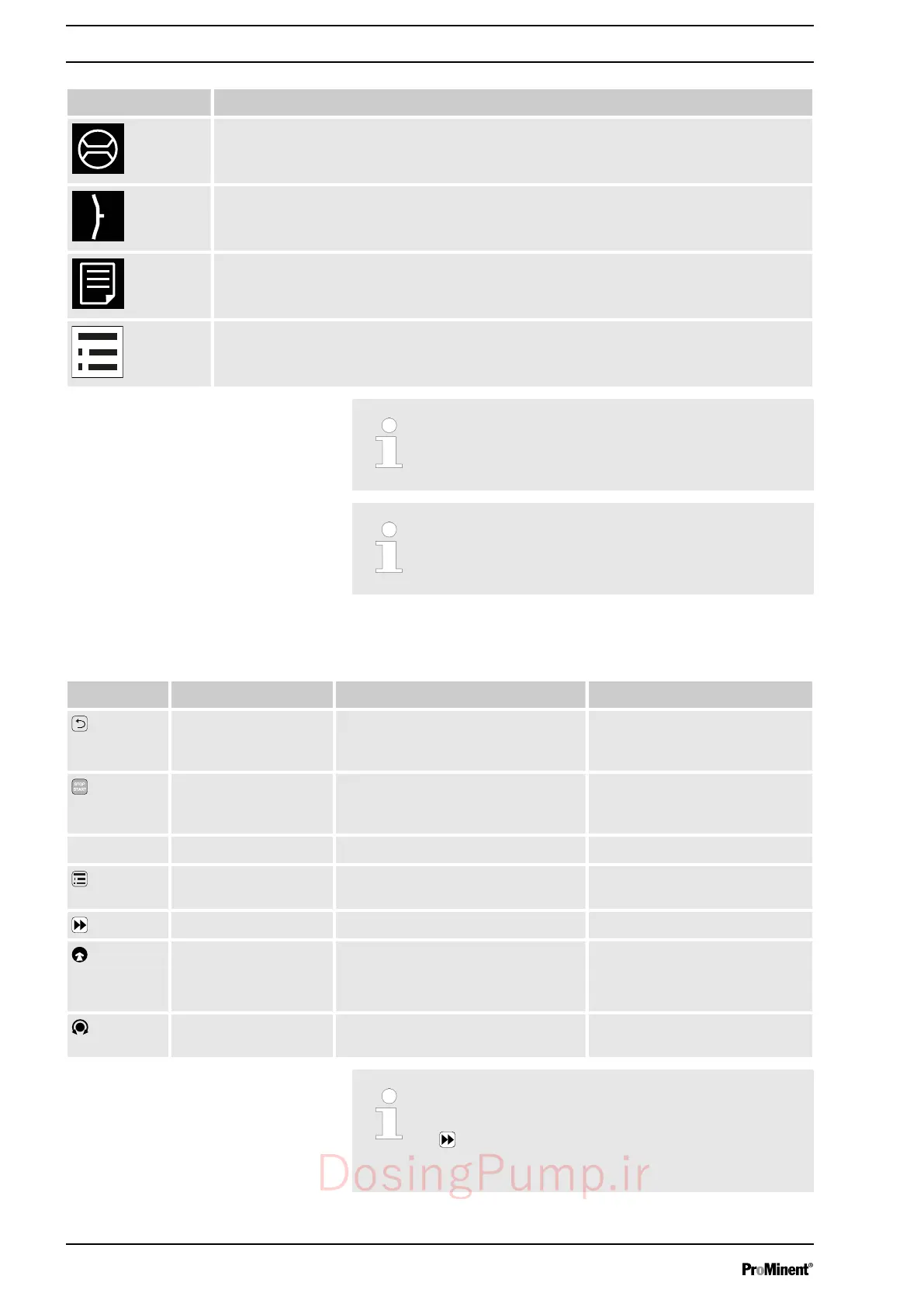

5.2.2 Key functions
Key Application In the continuous displays In the menu
[Back]
press - Go back to the previous menu
item (or a continuous display) -
without saving
[STOP/
START]
press Stop pump, Stop pump,
Start pump Start pump
[Menu]
press Go to the menu Go back to a continuous dis‐
play
[Priming]
press Priming * Priming *
[Clickwheel]
press Start batch (only in
‘Batch’
oper‐
ating mode),
Acknowledge errors
Go to next menu item (or a
continuous display)
Confirm entry and save
[Clickwheel]
turn Switch between the continuous
displays
Change figure or change
selection
* When priming the pump does not run at max‐
imum stroke rate.
If
[Priming] is pressed in ‘Stop’ status, then
[Priming] has top priority as long as the button is
pressed.
