Reference MVI56E-GSC/GSCXT ♦ CompactLogix or MicroLogix Platform
User Manual Enhanced Generic ASCII Serial Communication Module
Page 100 of 140 ProSoft Technology, Inc.
April 24, 2017

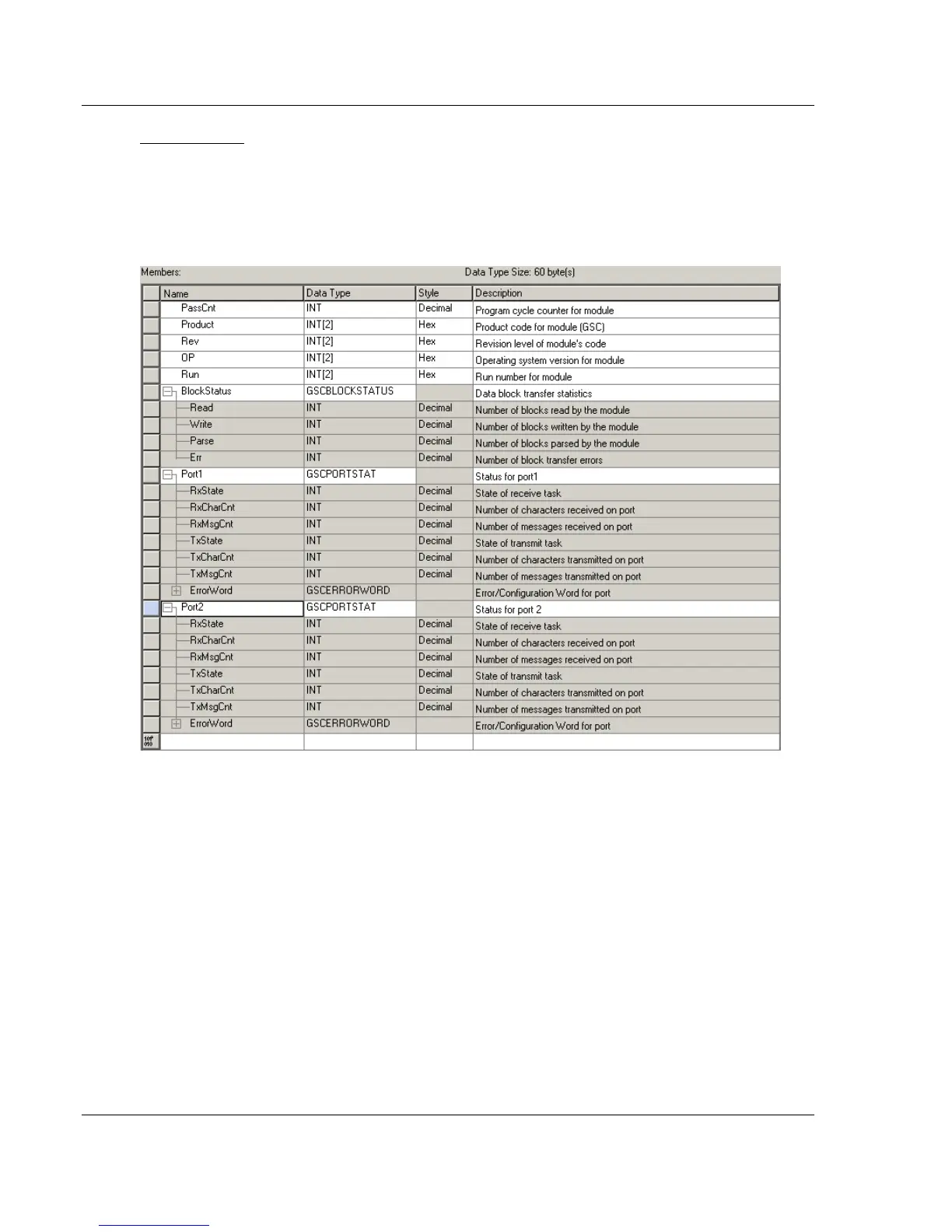

GSCSTATUS
This upper-mid-level data structure creates the tags and structure needed to
display all module status and error information, including general module status,
block transfer status, and port status of each port. This higher-level data structure
is a combination of new tags and the mid-level structures, GSCBLOCKSTATUS
(page 93) and GSCPORTSTAT (page 99).
