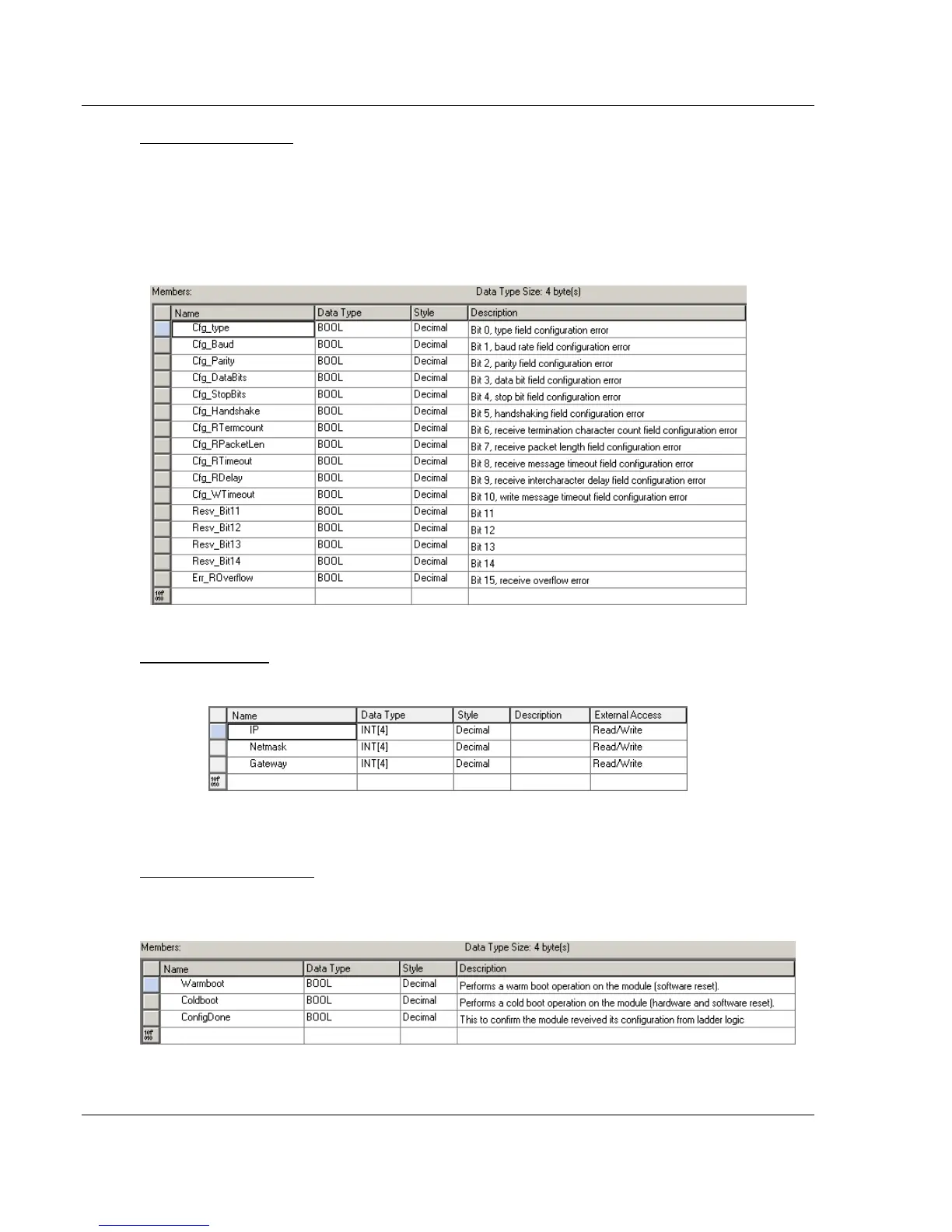

GSCERRORWORD
This data type creates the Boolean (single-bit binary) tags to help identify the
various errors present in the Error/Configuration Word. Whenever the module
detects an invalid value in one of the provided configuration parameters, it will set
one or more of these bit tags to a value of 1 to indicate the parameter or
parameters with the incorrect value. This low-level data structure is used to
create the higher-level structure, GSCPORTSTAT (page 99).
GSCETHERNET
This data type stores the IP settings of the MVI56E-GSC.
GSCETHERNETTYPE
This data type allows the MVI56E-GSC Ethernet configuration to be exchanged
between the module and processor.
