MVI56E-GSC/GSCXT ♦ CompactLogix or MicroLogix Platform Reference
Enhanced Generic ASCII Serial Communication Module User Manual
ProSoft Technology, Inc. Page 97 of 140
April 24, 2017

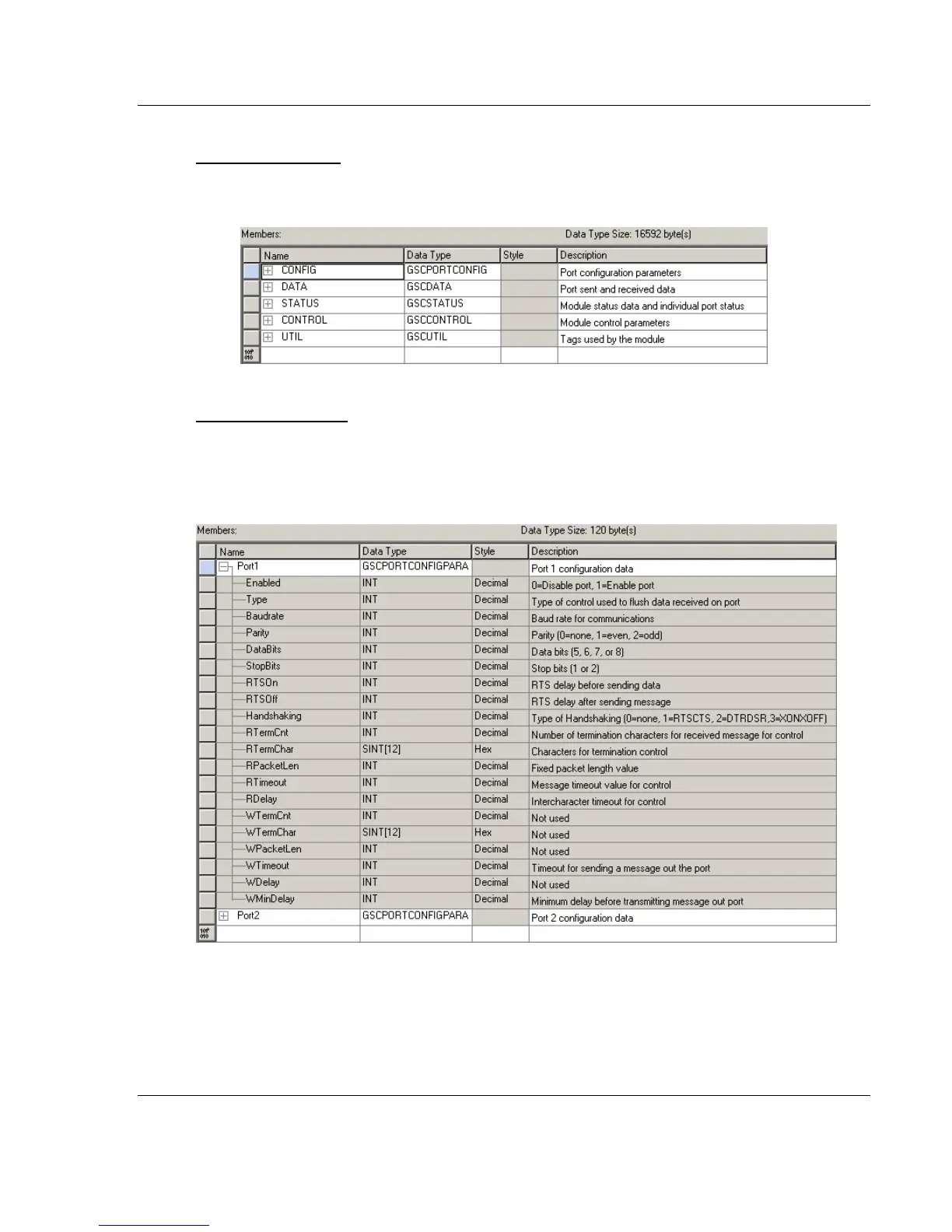

GSCMODULEDEF
This data type is the top-level data structure that provides overall organization to
the rest of the lower-level data structures, tag arrays, and tags.
GSCPORTCONFIG
This data type is a mid-level data structure that creates Port structures to
organize and hold port configuration data for both ports. This data type uses one
iteration of the GSCPORTCONFIGPARA (page 98) UDT data structure for each
of the two application serial ports.
