Chapter 2 Hardware Configuration
Prox-1635LF USER
S MANUAL
Page: 2-11

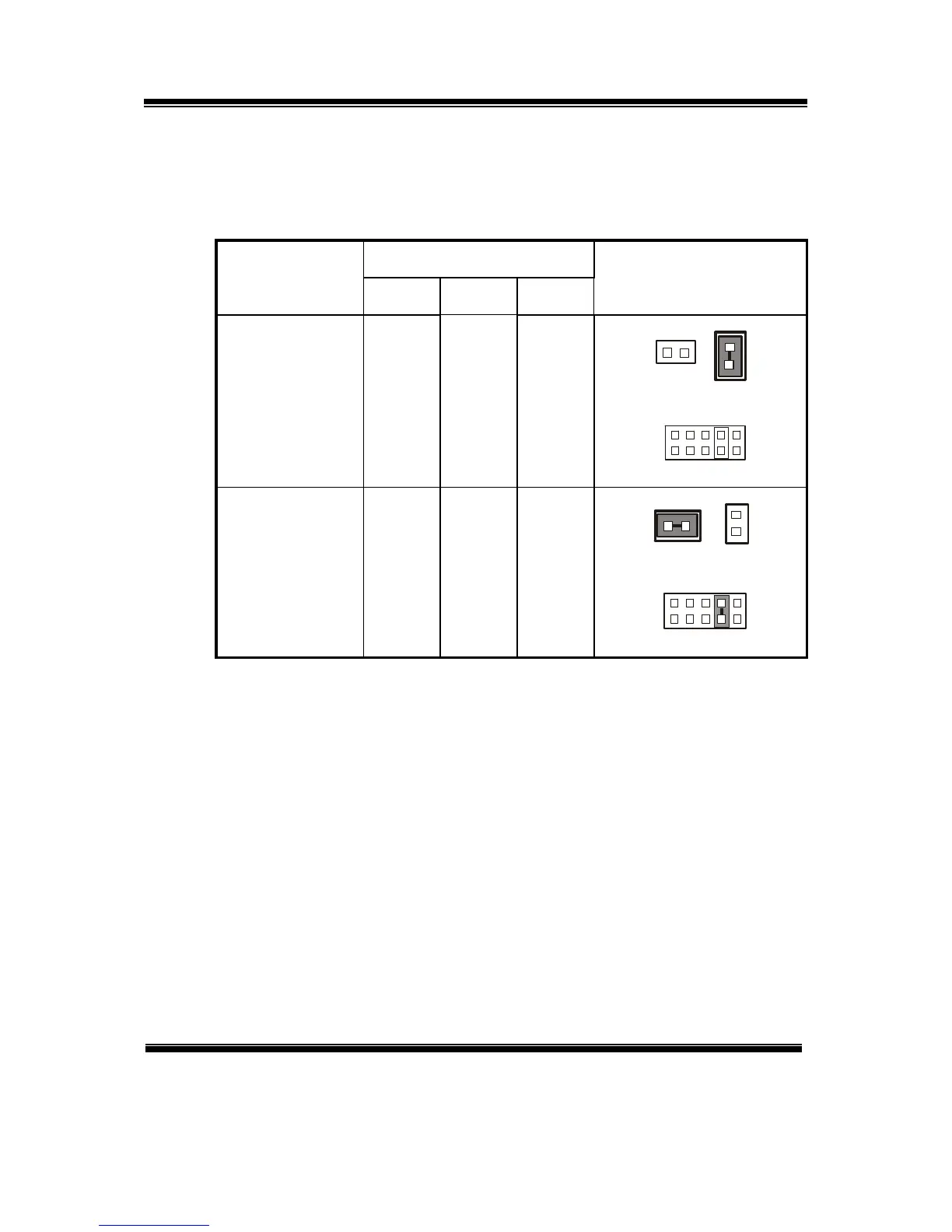

2-11. AT/ATX FUNCTION SELECTION
JP8, JP13, JP9 : ATX or AT Power Selection
The selections are as follows:
JUMPER SETTINGS
Power Selection
JP8 JP13 JP9
JUMPER
ILLUSTRATION
ATX OPEN OPEN CLOSE
JP13
1
JP9
1
JP8
9
1
2
10
ATX Power
AT CLOSE CLOSE OPEN
JP13
1
JP9
1
JP8
9
1
2
10
AT Power
***Manufacturing Default: ATX
Please be aware, when you choose to use the AT function, please be
sure to set the corresponding configuration found in BIOS setup:
1. Inside the “POWER MANAGEMENT” setting, set the ACPI
function to disable.
When you choose to use the ATX function, please be sure to set the
corresponding configuration found in BIOS setup such as:
1. Inside the “CHIPSET FEATURES” setting, set the power supply
type to ATX.
2. Inside the “POWER MANAGEMENT” setting, set the ACPI
function to enable.
