protech ProX-1635LF User Manual

Chapter 2 Hardware Configuration
Page: 2-18
Prox-1635LF USER
′ S MANUAL

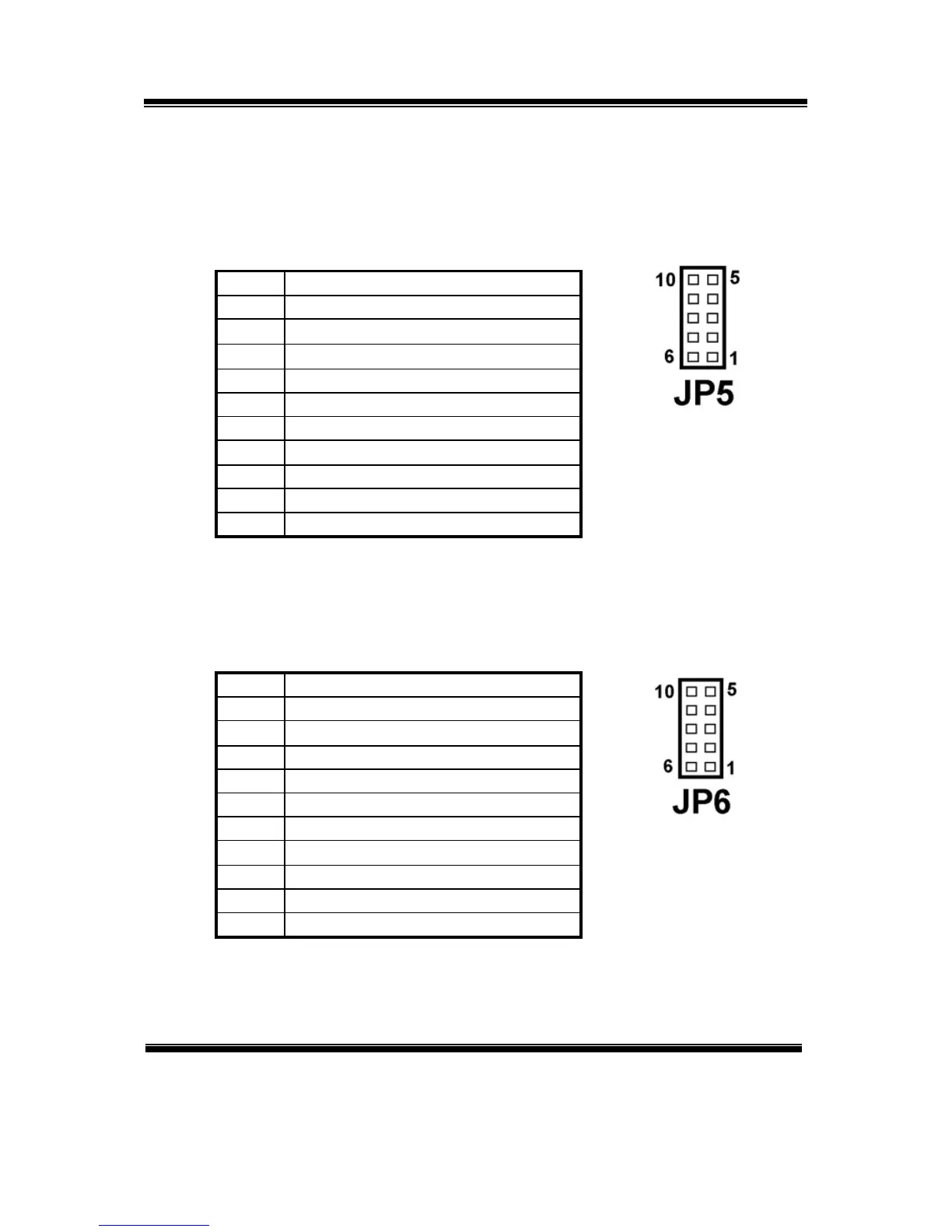

2-21. UNIVERSAL SERIAL BUS CONNECTOR
JP5: Universal Serial Bus Connector
USB connector of this board can support two USB ports.
The pin assignments are as follows:
PIN ASSIGNMENT
1 VCC
2
USBP∅−
3
USBP∅+
4 GND
5 GND
6 VCC
7
USBP1−
8 USBP1+
9 GND
10 GND
JP6: Universal Serial Bus Connector
USB connector of this board can support two USB ports.
The pin assignments are as follows:
PIN ASSIGNMENT
1 VCC
2
USBP2−
3 USBP2+
4 GND
5 GND
6 VCC
7
USBP3−
8 USBP3+
9 GND
10 GND
