protech ProX-1635LF User Manual

Chapter 2 Hardware Configuration
Prox-1635LF USER ′ S MANUAL
Page: 2-23

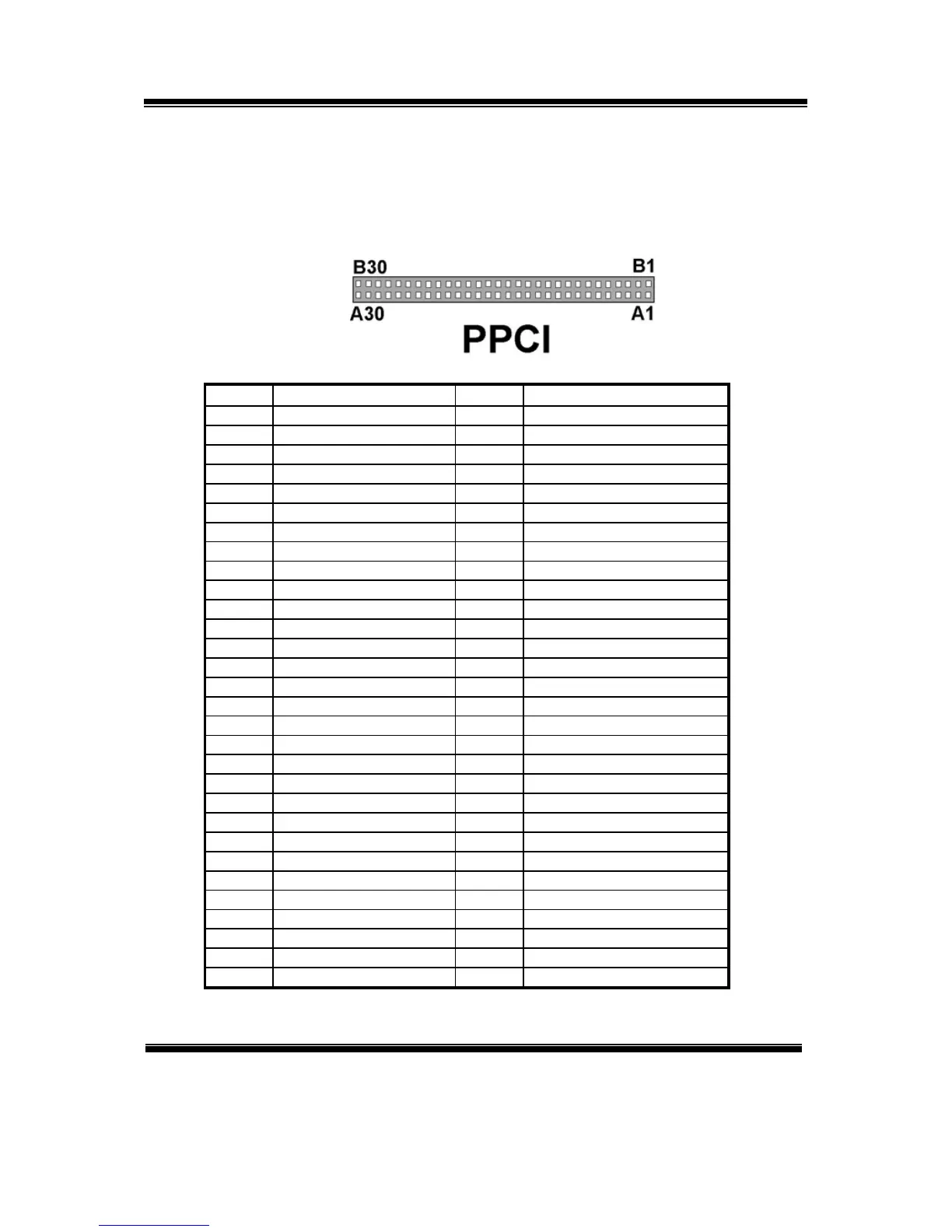

2-29. PPCI CONNECTOR
You will find a PPCI connector on our Prox-1635LF. This connector is used
to connect our SCSI daughter boards.
The pin assignments are as follows:
PIN ASSIGNMENT PIN ASSIGNMENT
A1 GND B1 GND
A2 AD0 B2 AD1
A3 AD2 B3 AD3
A4 AD4 B4 AD5
A5 AD6 B5 AD7
A6 AD8 B6 AD9
A7 AD10 B7 AD11
A8 VCC B8 VCC
A9 AD12 B9 AD13
A10 AD14 B10 AD15
A11 AD16 B11 AD17
A12 AD18 B12 AD19
A13 AD20 B13 AD21
A14 AD22 B14 AD23
A15 VCC B15 VCC
A16 AD24 B16 AD25
A17 AD26 B17 AD27
A18 AD28 B18 AD29
A19 AD30 B19 AD31
A20 INIT B20 PAR
A21 PCICLKA B21 IRDY#
A22 ID SEL B22 TRDY#
A23 CBE#0 B23 CBE#1
A24 CBE#2 B24 CEB#3
A25 GNT#3 B25 REQ#3
A26 SERR# B26 PERR#
A27 INTR#A B27 PCIRST#
A28 STOP# B28 PLOCK#
A29 DEVSEL# B29 FRAME#
A30 GND B30 GND
