2-31. LCD CONNECTOR

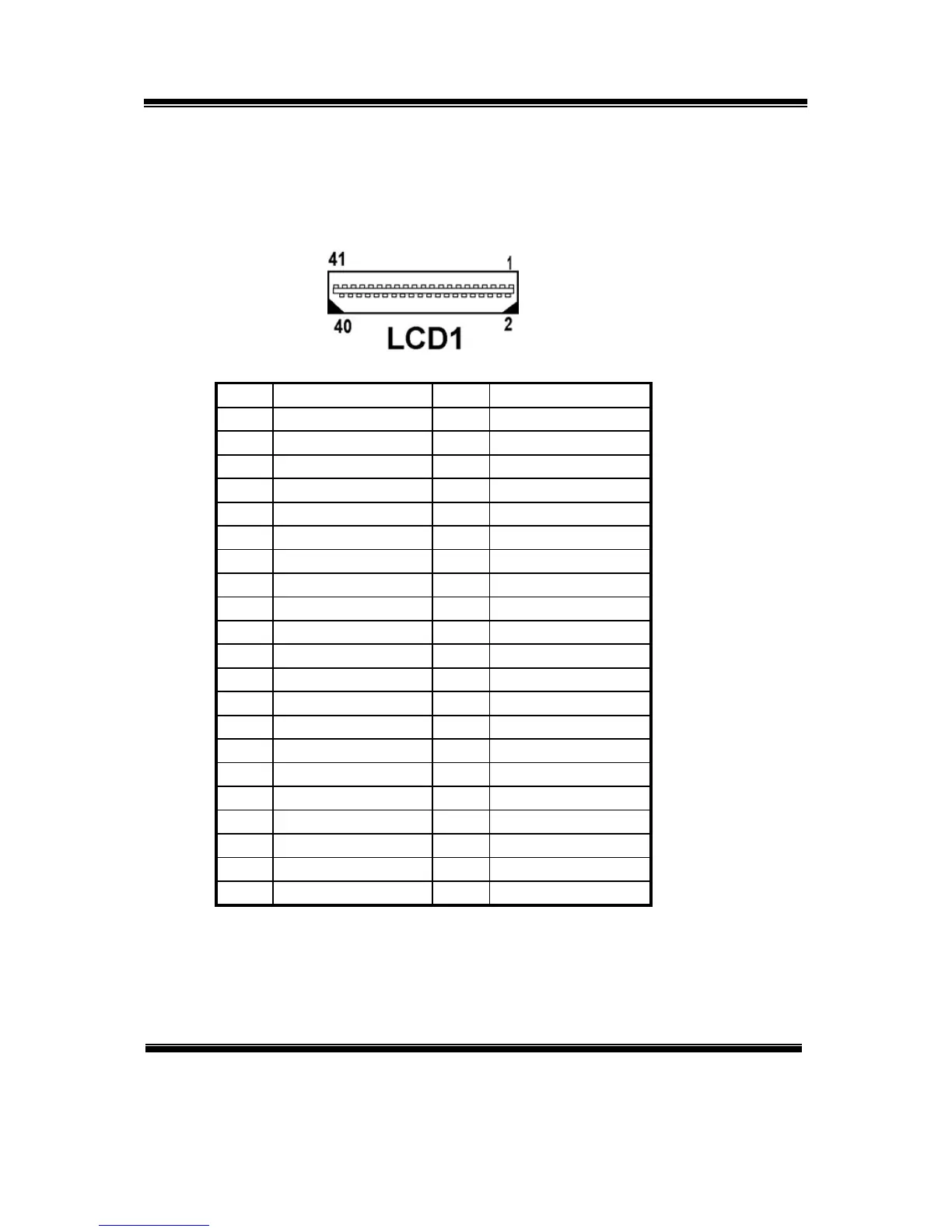

LCD1 : LCD Connector
The pin assignments are as follows :
PIN ASSIGNMENT PIN ASSIGNMENT
1 FP20 2 GND
3 FP16 4 LCD_VCC5
5 FP21 6 FP0
7 FP17 8 FP8
9 FP22 10 FP1
11 FP18 12 FP9
13 FP23 14 FP2
15 FP19 16 FP10
17 LCD_VCC5 18 FP3
19 FPVS 20 FP11
21 FPDEN 22 FP4
23 FPHS 24 FP12
25 FPCLK 26 FP5
27 LCD_VCC3 28 FP13
29 LCD_VCC3 30 FP6
31 FPENABKL 32 FP14
33 VCC 34 FP7
35 ENVEE 36 FP15
37 GND 38 +12V
39 GND 40 +12V
41 NC
