protech ProX-1635LF User Manual

Chapter 2 Hardware Configuration
Prox-1635LF USER ′ S MANUAL
Page: 2-17

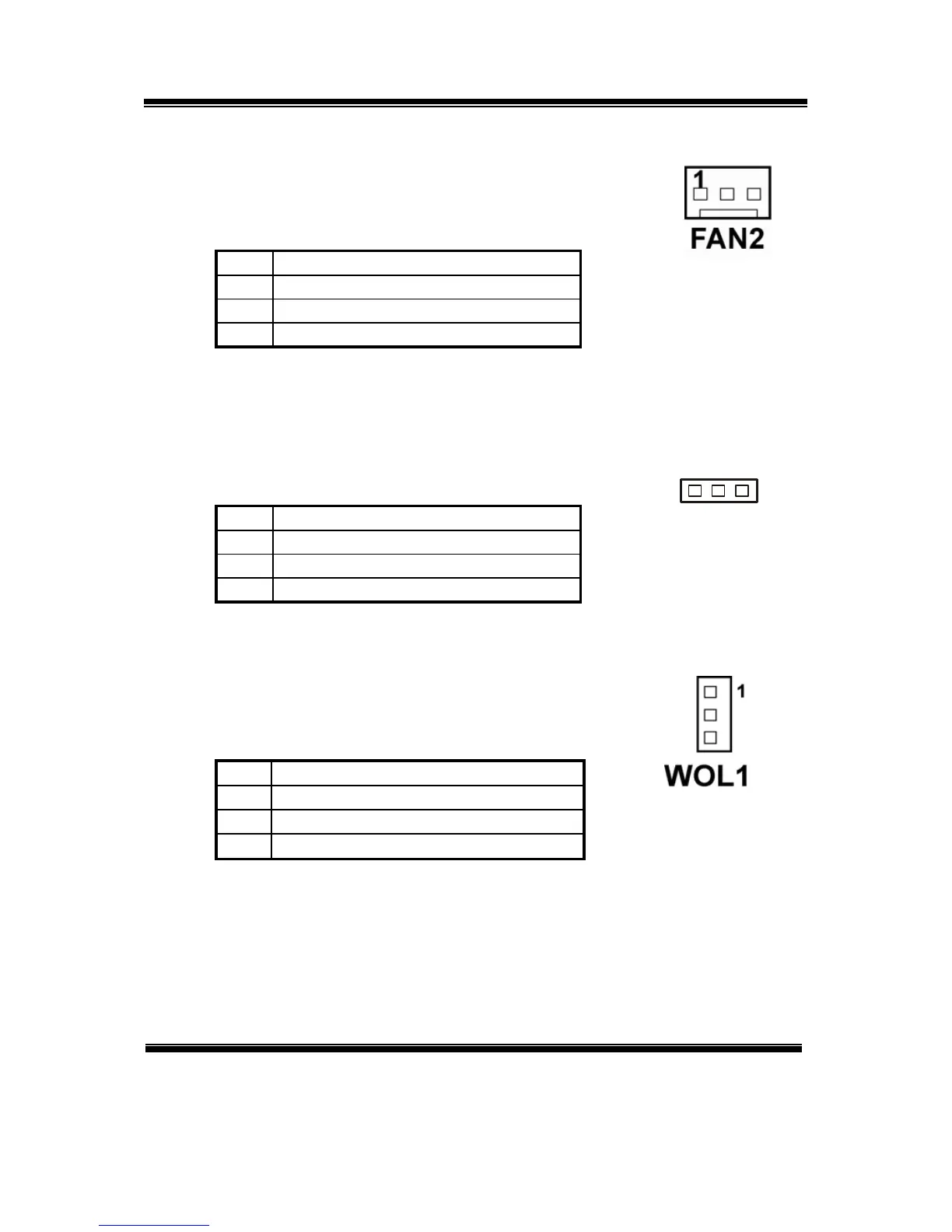

2-18. CPU FAN CONNECTOR
FAN2 : CPU Fan Connector
The pin assignments are as follows:
PIN ASSIGNMENT
1 GND
2 +12V
3 FAN_CTL
2-19. ATX SIGNAL CONNECTOR
JP10 : ATX Signal Connector
The pin assignments are as follows:
PIN ASSIGNMENT
1 PS_ON
2 GND
3 5VSB
2-20. WAKE-ON-LAN CONNECTOR
WOL1 : Wake-On-LAN Connector.
The pin assignments are as follows:
PIN ASSIGNMENT
1 5VSB
2 GND
3 RING
1
JP10
