VIBTOOL 02.2009
13
Rechargeable battery
VIBTOOL is supplied with power by a Lithium-Ion re-
chargeable battery. The battery is charged in the instru-
ment using the VIBTOOL charger.
The battery should not be removed under any circum-
stances! To replace a defective battery, VIBTOOL must
be sent back to the manufacturer.
Battery charge state
The charge status is indicated by the battery (‘Batt’) icon on
the display:
- ‘Batt’ flashes: battery is almost empty
This continues for a few minutes to enable any measure-
ments that are running to be completed and the battery
to be recharged.
- ‘Batt’ lights up: battery is being charged.
- ‘Batt’ is not displayed: battery is sufficiently charged.
The charge condition of the battery can also be viewed
in the Device Setup (see page 24)

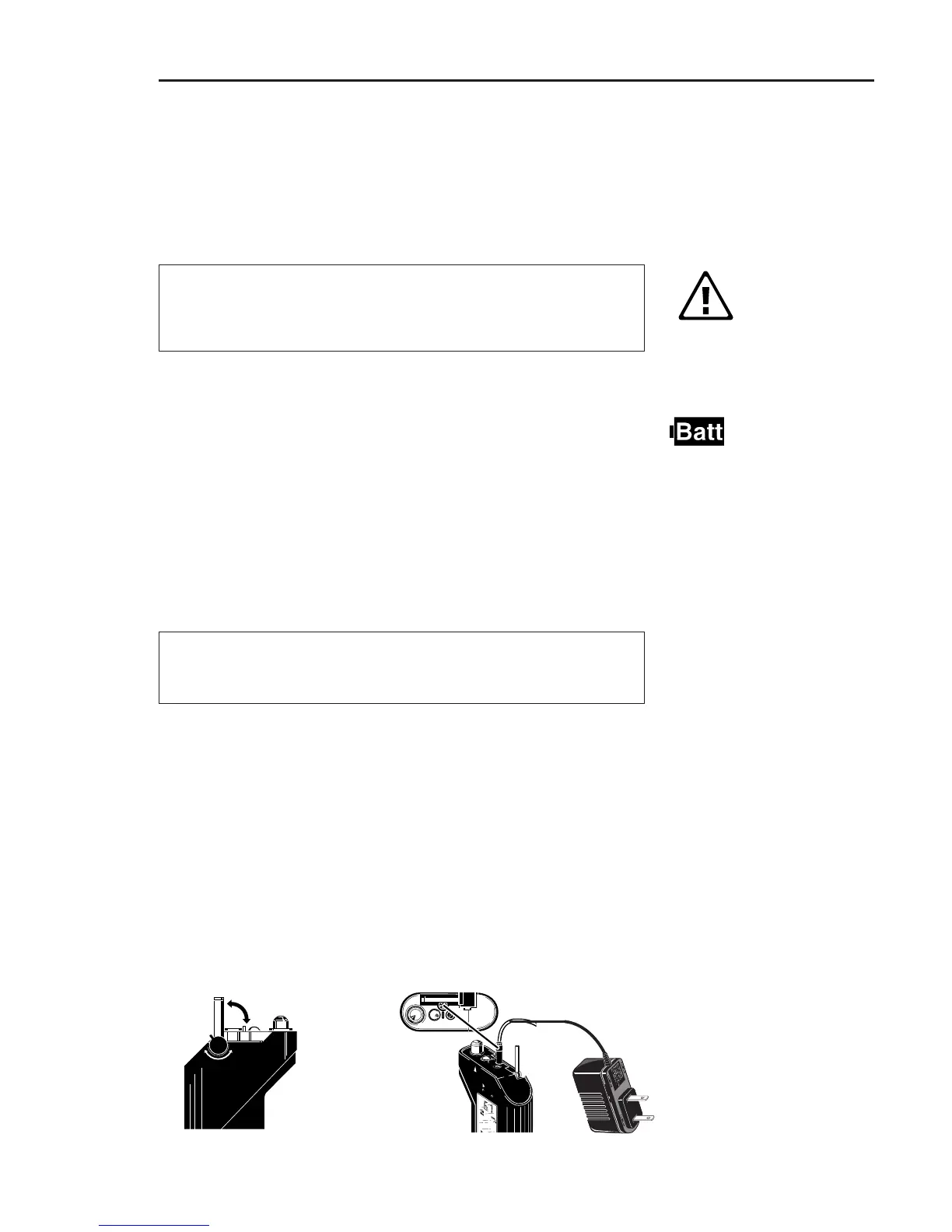

How to connect the VIBTOOL charger
Connect the VIBTOOL charger to the charging socket on
the top of the instrument.
Procedure:
1. Flip the VIBTOOL temperature probe out to expose the
5-pin socket.
2. Connect the charger to the 5-pin socket as shown in the
diagram below. Check the notch for correct alignment.
This is a push fit, do not turn!
Operation
Attention!
))
))
)
Note
ENT
VIBTOOL charger
VIB 2.721
