VIBTOOL 02.2009
54
External or permanently installed sensors
Connection to one external sensor
VIBTOOL can be connected to external sensors using cable
VIB 4.704-2 (QLA-TNC plugs, 2m). In situations where a
single Tandem-Piezo accelerometer (e.g. VIB 6.122R) has
been permanently installed on a machine, simply connect
your VIBTOOL directly and take the reading.

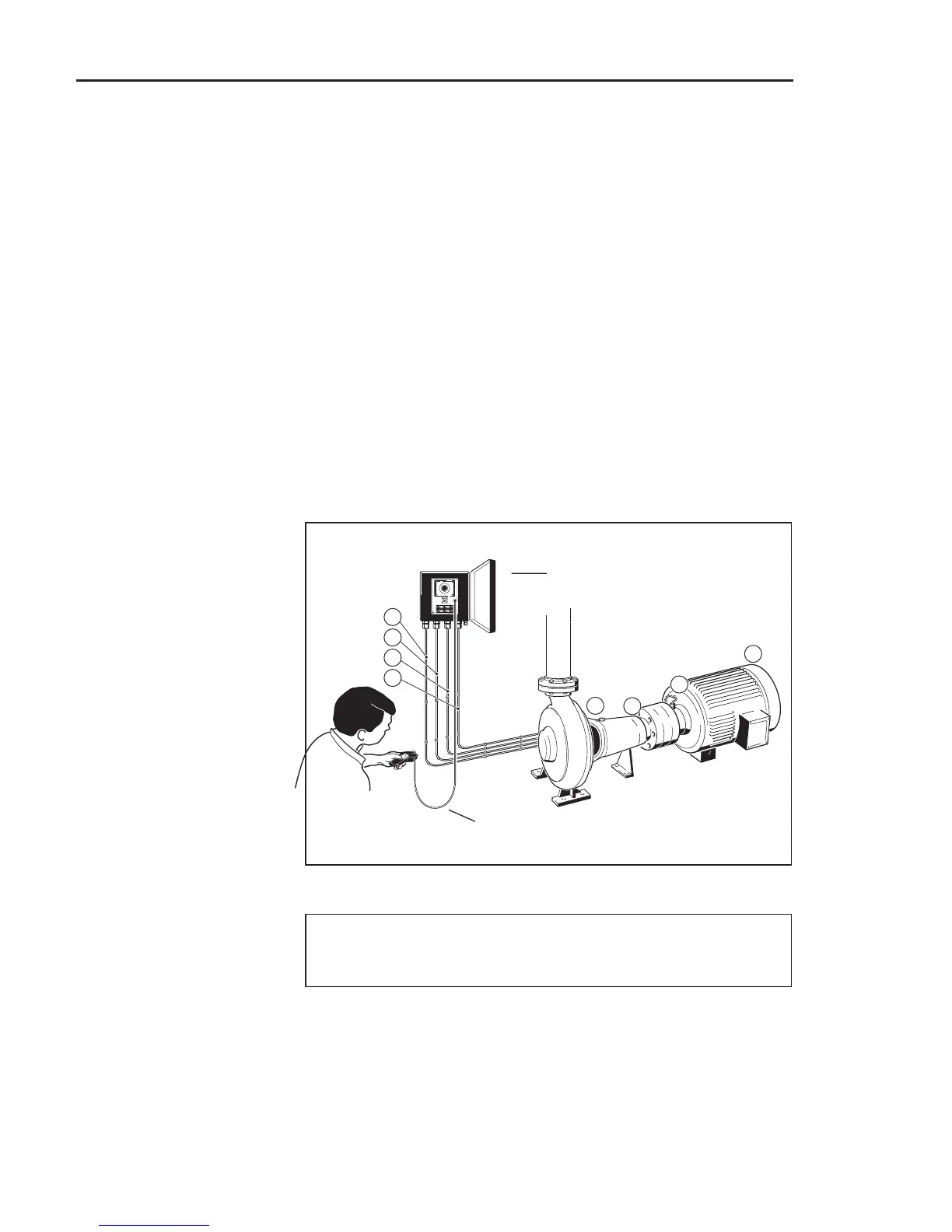

Connection to more than one sensor
For measurements where more than one external sensor is
used, SwitchBox VIB 6.785 can be used to switch between
sensors. Here, permanently installed sensors are connected
to the connection box. When you need to collect data,
simply connect VIBTOOL using cable VIB 4.704-2 (QLA-
TNC plug, 2m) and switch between sensors.
7
8
9
10
11
1
2
1
2
3
4
5
6
123456789101112131415161718
19202122 23 24 25 26 27 28 29 30 31 32 33 34 35 36
R
F
P
T
Ü
R
V
8
.
5
/
I
B
5
1
M
5
E
C
H
4
3
1
2
E
N
T
M
1
2
3
4
Sensor cable - VIB 4.704-2
SwitchBox - VIB 6.785
Appendix
VIBTOOL does not work together with the VIBCODE
transducer!
))
))
)
Note
