RPM measurement display

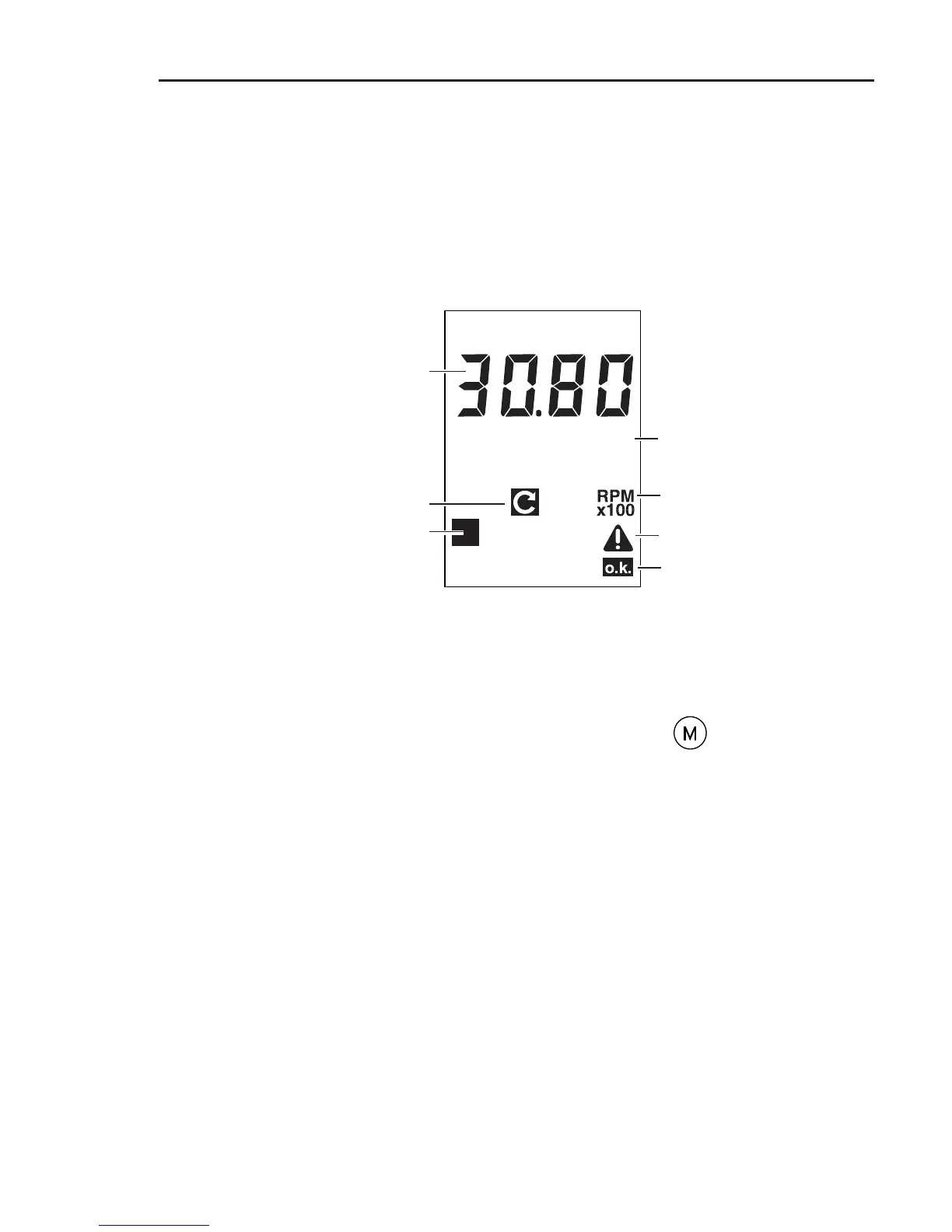

The following display shows all the symbols which can
appear during an RPM measurement. However, the sym-
bols may not all appear simultaneously.
Measurement value
(RPM x 100)
Unit: RPMx100
Symbol indicating
RPM measurement
Measurement OK
Symbol lights up with
each trigger pulse
When a flashing measurement value is seen on the screen,
the current measurement is outside preset stability limits.
Press ‘M’ continuously to show a live display where you can
observe how stable the measurement is.
/s
Symbol indicating measurement
error (instable signal, etc.)
Unit: 1/s
RPM measurement
