Prusa i3 MK3 - C Heck​ ​ P Robe​ ​ H Eight​ ​ ( Kit​ ​ O Nly)

Pict.   12   -   Perfect   Prusa   logo   first   layer

6.3.10.2  Check probe height (kit only)
If the first layer seems inconsistent between multiple prints, the probe might be
too high. Lower it slightly. Loosen the two screws on the probe holder to make
adjustments. Rotating the probe clockwise lowers it 1mm per turn. Rotating it
is very handy for precise adjustments, but it can also be pushed in and out when set screws
are loosened completely. Then try again Calibrate XYZ. Keep in mind, the probe must
always be higher than the nozzle tip, otherwise it will catch on prints.

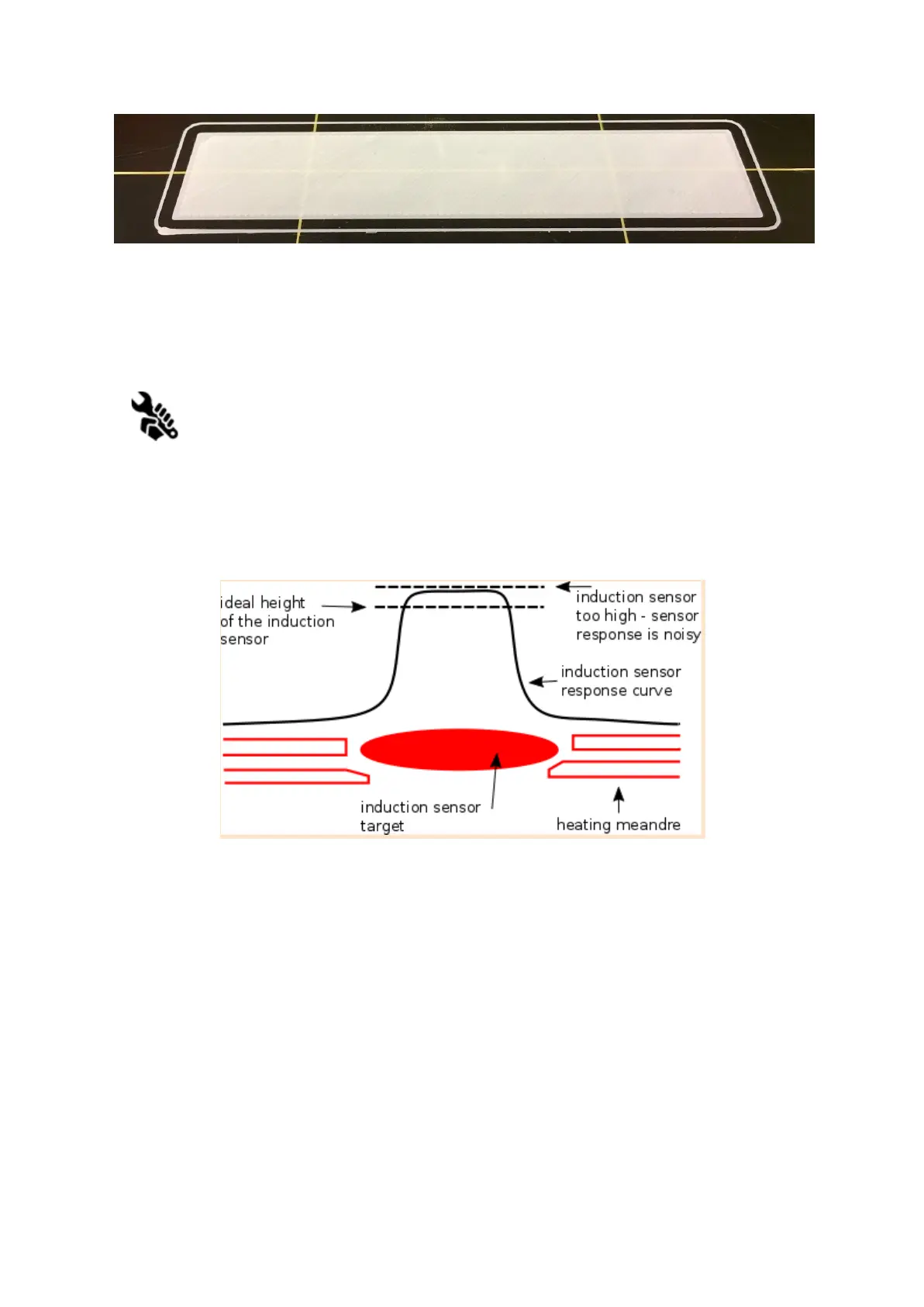

Pict.   13   -   Probe   response   diagram.
Now you are done!

 
25
