24.0 Alarm Fault Details
The 3300 will display the fault status of its alarm outputs if the ‘Alarm Fault’ indicator is illuminated in
the fault diagnosis mode.
Display row 1 shows any open circuit faults.
• Zones 1 & 2 will be illuminated when alarm circuits 1 or 2 have an open circuit fault.
• Zones 3 & 4 will be illuminated when alarm circuits 3 or 4 have an open circuit fault.
Display row 2 shows any short circuit faults.
• Zones 1 & 2 will be illuminated when alarm circuits 1 or 2 have a short circuit fault.
• Zones 3 & 4 will be illuminated when alarm circuits 3 or 4 have a short circuit fault.

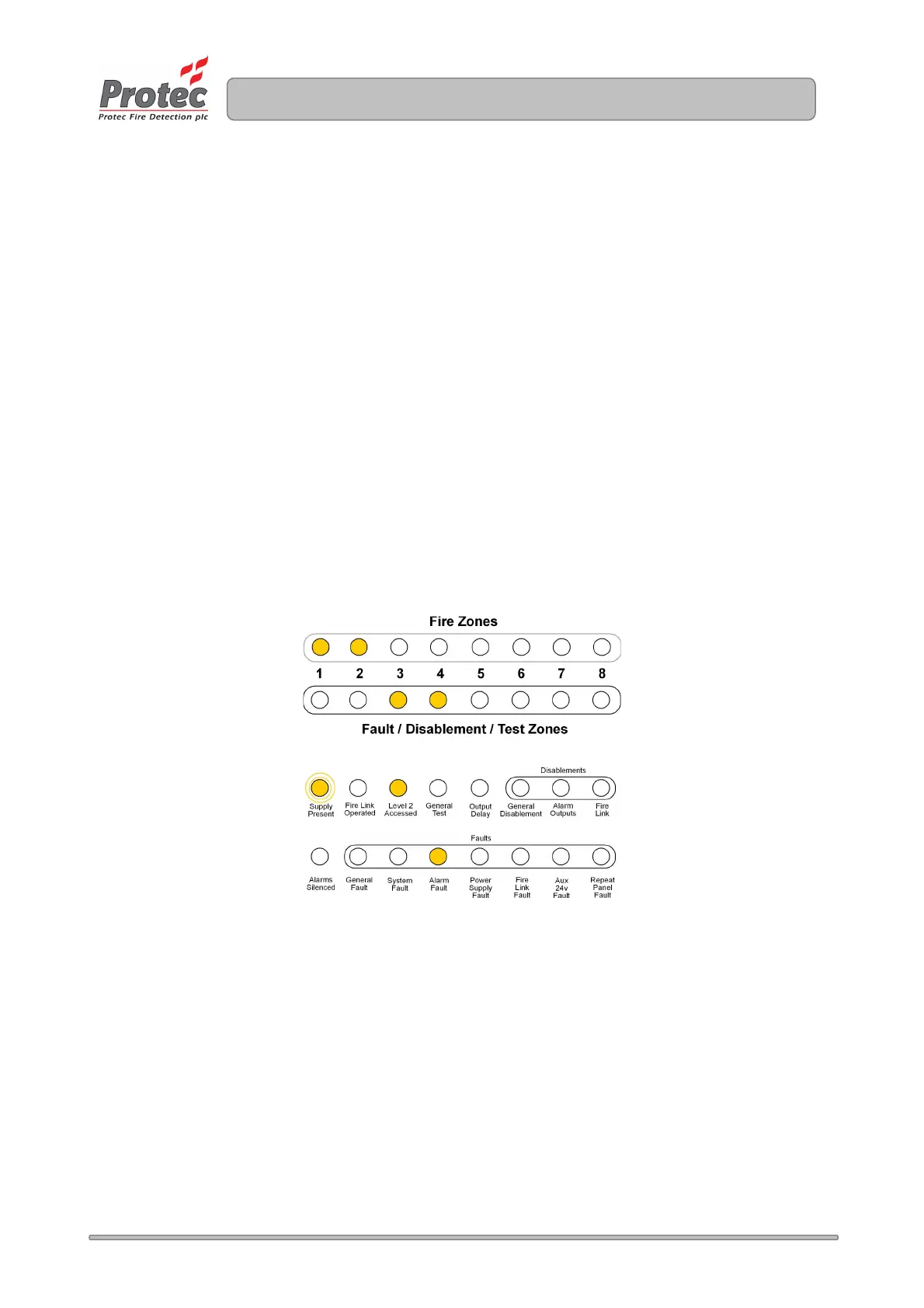

Figure 24.0 shows alarm circuits 1 or 2 having an open circuit fault condition and alarm circuits 3 or 4
having a short circuit fault condition.
Figure 24.0 Example of an alarm fault display.
