25.0 System Fault Details
The 3300 will display the system fault status of the system if the ‘System Fault’ indicator is illuminated
when in the fault diagnosis menu.

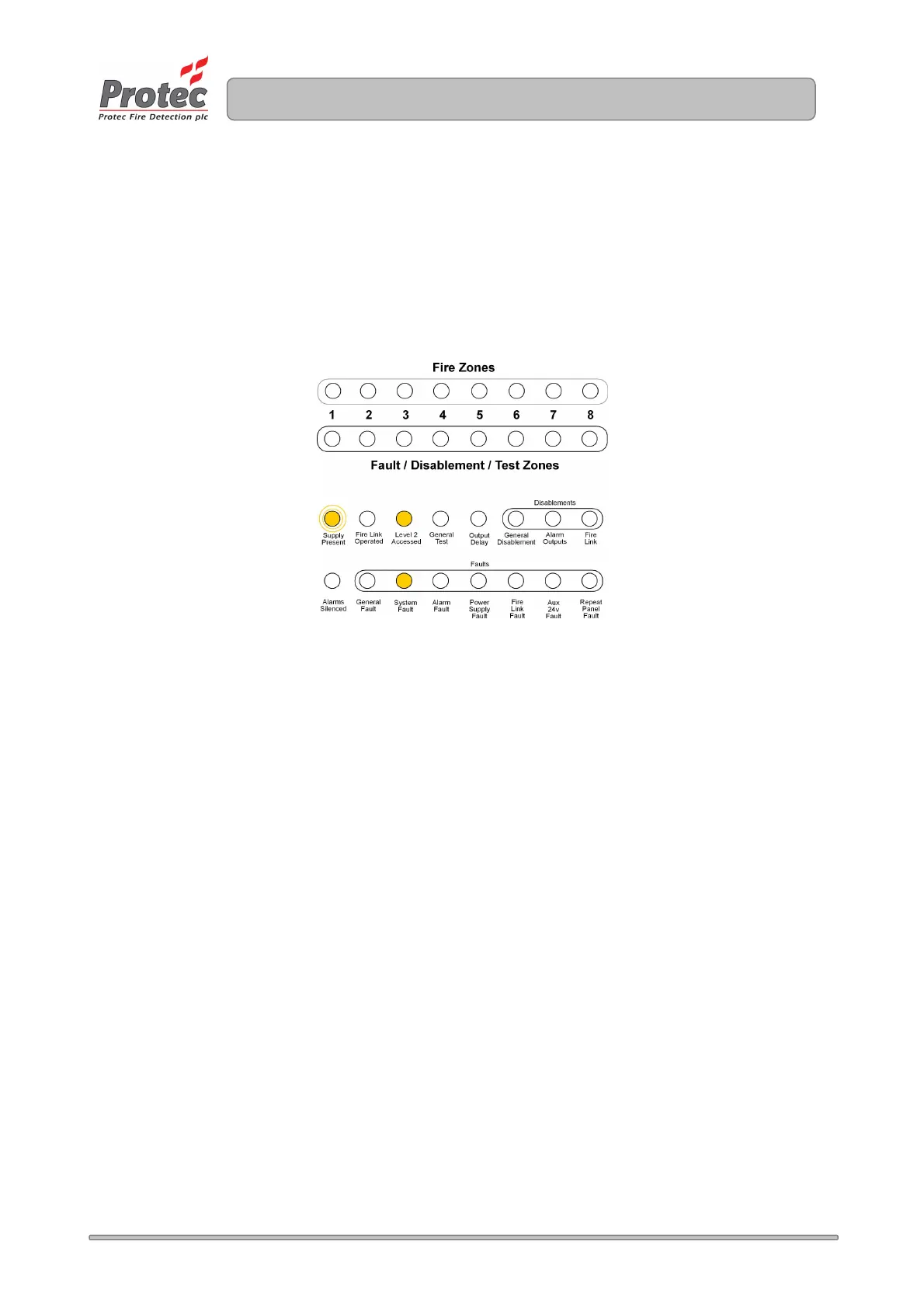

Display row 1 gives details of current system faults, as detailed in figure 25.0
Figure 25.0 Details of System Fault Information.
Zone 1 indicator will be illuminated if an EEPROM checksum error has been detected.
Zone 2 indicator will be illuminated if a PROGRAM checksum error has been detected.
Zone 3 indicator will be illuminated if a WATCHDOG fault has been detected.
Zone 4 indicator will be illuminated if a SW ERROR fault has been detected.
Zone 5 indicator will be illuminated if an external or internal interface fault (missing / faulty node) has
been detected.
Please see section 27.0 for guidelines on how to rectify the faults.
