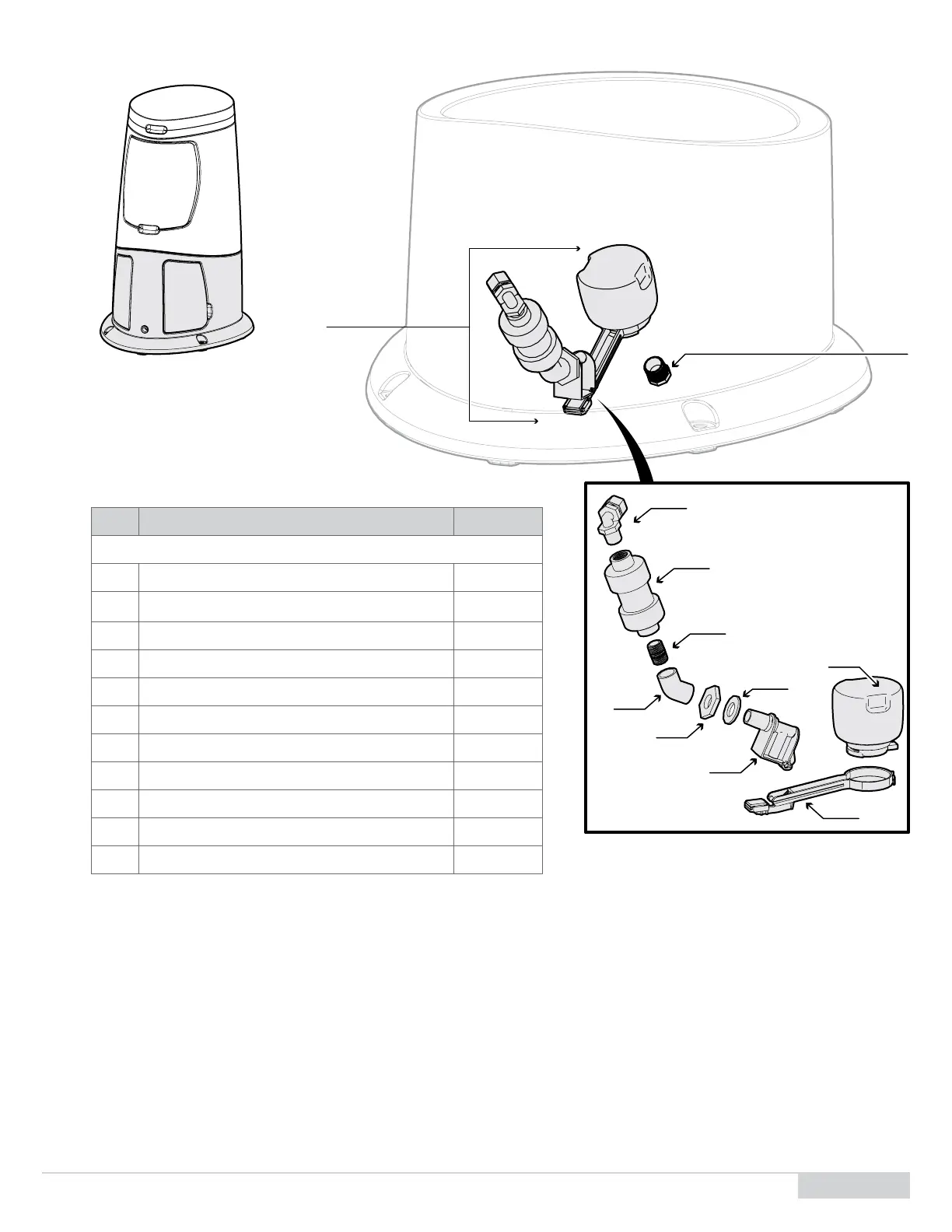

Figure18. Base Interior Components View
No Descripon PartNumber
3: BASE INTERIOR COMPONENTS
3A Discharge Valve Assembly 205958
3B 3/4" NPT Plug PVC (replacement customer sourced) N/A
3C 1/2" 90° Tubing Connector, W8ME8 205529
3D PVC Check Valve 205959
3E 1/2" Threaded Nipple 205545
3F 1/2" 45° Threaded Elbow 205963
3G Discharge Valve Nut 71583
3H Discharge Valve Gasket 71576
3I Discharge Valve Body 206080
3J Discharge Valve Float 206082
3K Discharge Valve Arm 206079
3B
3C
3D
3E
3H
3K
3A
3J
3F
3G
3I
