Pulsar® Precision Operaon and Installaon Manual (Model PS-1HCE) Rev 2.0 04/2022
32

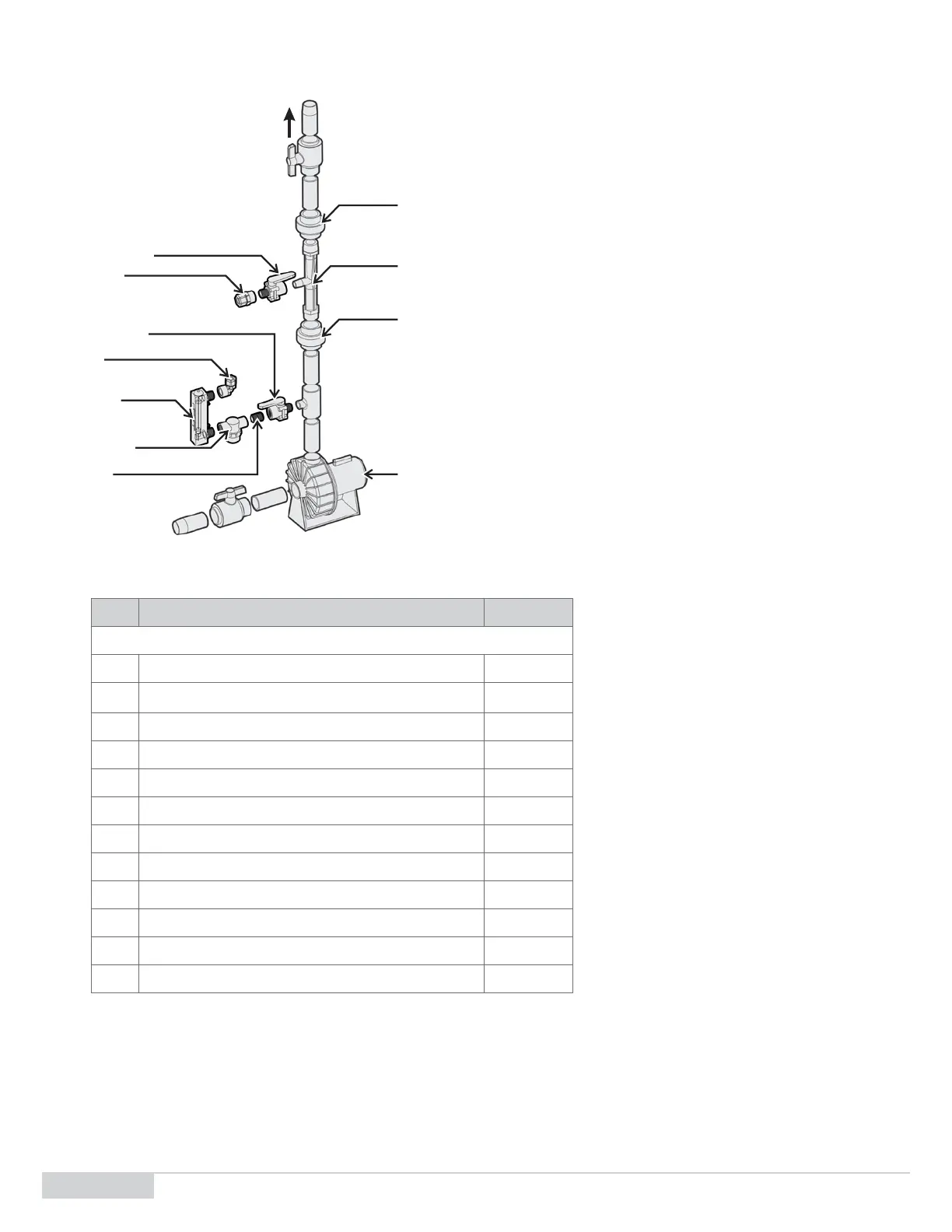

Figure19. Booster Pump and Venturi Assembly
No Descripon PartNumber
4: INSTALLATION SPARE PARTS
4A Venturi Pulsar 1585X PVDF No Check Valve 205508
4B Female ½” NPT x ½” Tubing Connector, straight 205466
4C Female ½” NPT x ½” Tubing Connector, elbow 205938
4D Male ½” NPT x ½” Tubing Connector, straight (not shown) 71890
4E Tubing - 20 1/2in O.D PE (not shown) 205490
4F Booster Pump 205955
4G ½” NPT ball valve, Male x Female 205491
4H Venturi Unions 71907
4I Line Strainer 206084
4J 0.5 – 5.0 gpm ow meter, ½” NPT 74720
4K ½” NPT closed nipple 205545
4L Flow Switch 24VAC/DC, SS 1/2" NPT (SC050R) 206036
flow to
pool
4H
4G
4G
4C
4J
4I
4B
4H
4F
4A
4K
