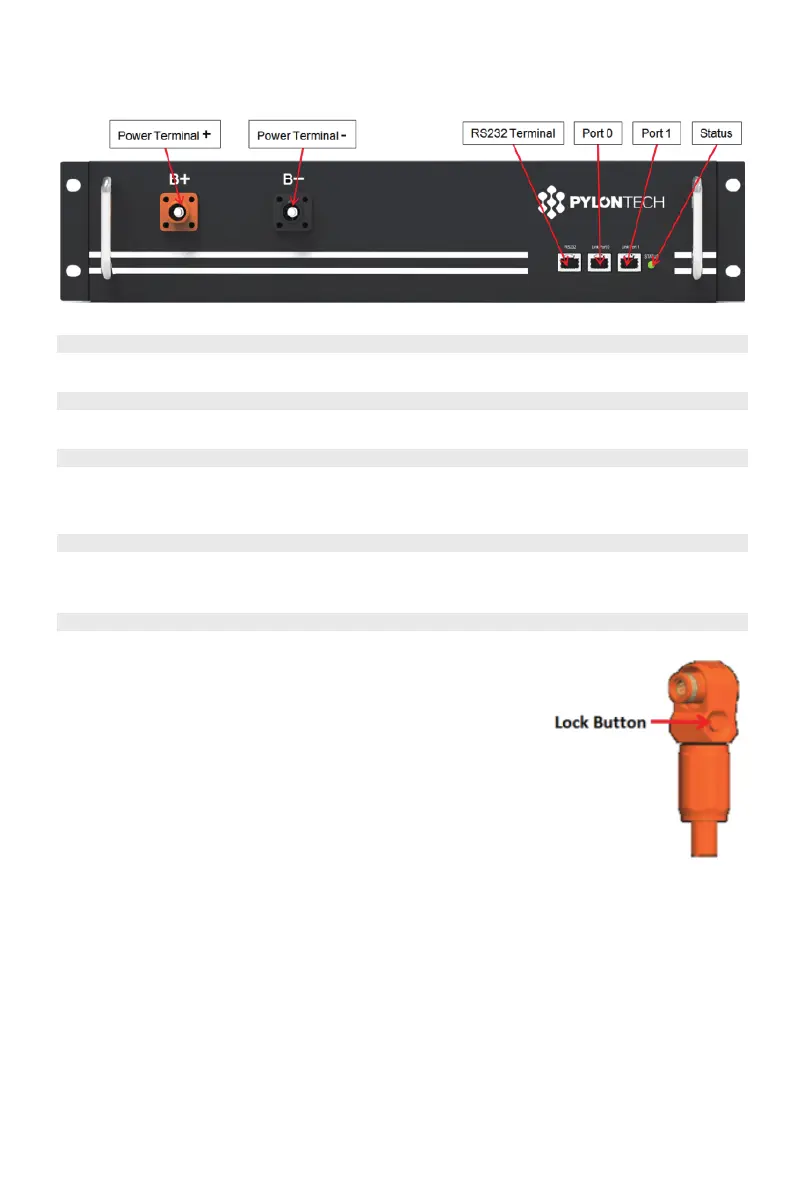

2.4.3. Battery Module Front Interface
Power Terminals
Power cable terminals: there are two pairs of terminals with same function,
one connects to equipment, the other one parallels to other battery
module for capacity expanding. For each single module, each terminal
can achieve charging and discharging function.
For power cables uses AMPHENOL connectors. Must keep pressing the
Lock Button during pulling out the power plug.
Link Port 0, 1
Link Port 0, 1 Communication Terminal: for communication between multiple serial battery modules and
controller module.
RS232 Terminal
Status
Status light: to show the battery module’s status (RUN
●, Alarm and Protection●).
Power Terminal +/-
To connect battery series power cables.
Console Communication Terminal: (RJ45 port) follow RS232 protocol, for manufacturer or professional
engineer to debug or service.
