Pylontech PowerCube-H1-V2 - DC Power Cable; Communication Cable

External Battery CAN
Communication Cable (direct)
Black/3.5m/Super 5th Class
Twisted-pair Wire/2 RJ45 terminal
1pcs/control
module
B2
Battery Cascade
Communication Cable (0.18m)
Black/0.18m/8 Core Super 5th
Class Twisted-pair Wire/RJ45
1pcs/battery
module
B1
External Power Cable -
Power Cable/Black/2m/
4AWG/SURLOK Terminal/50-8 ring
terminal (BMS 'D-' to PCS)
1pcs/control
module
A5
External Power Cable +
Power Cable/Orange/2m/
4AWG/SURLOK Terminal/50-8 ring
terminal (BMS 'D+' to PCS)
1pcs/control
module
A4

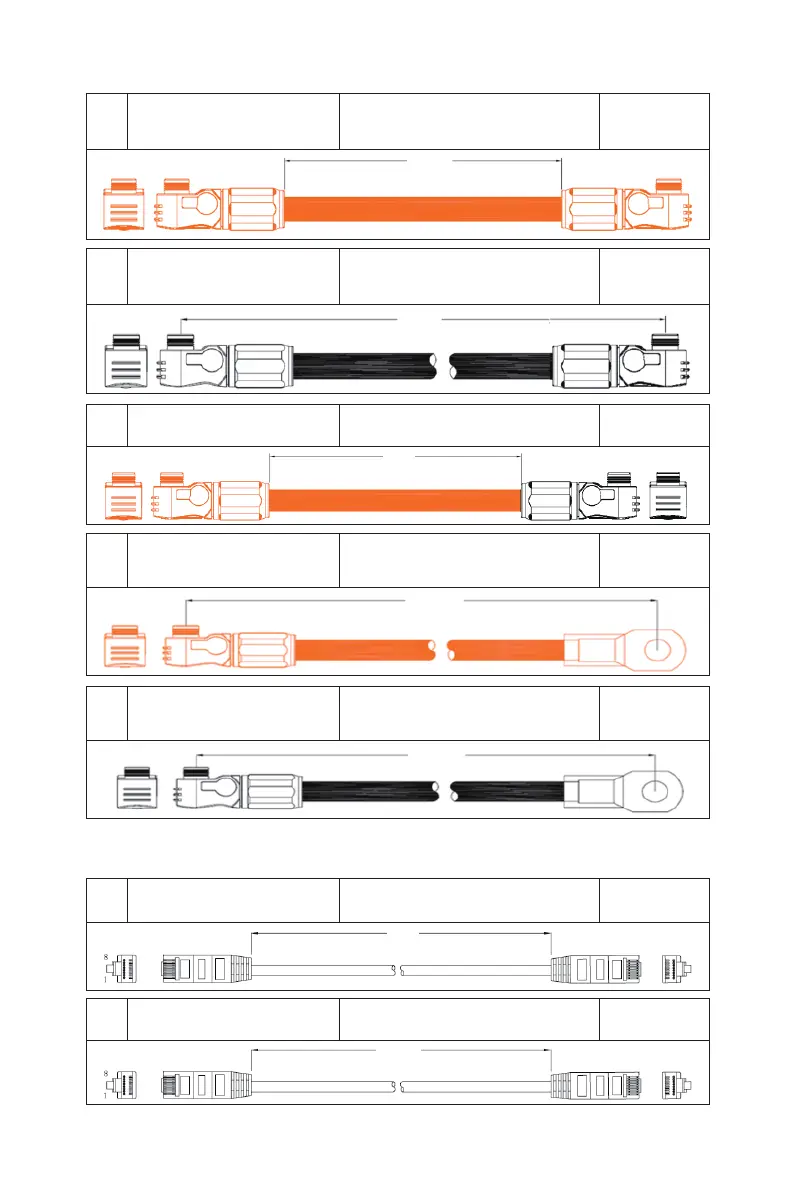

3.4.2. DC Power Cable
3.4.3. Communication Cable
Power Cable (Between
the Battery Modules)
Orange/0.18m/4AWG/1 Orange &
1 Black Surlok Terminal
1pcs/control
module
A3
Power Cable - (Battery
Module and Control
Module Serial Connection)
Black/2m/4AWG/2
Black Surlok Terminal
1pcs/control
module
A2
Power Cable + (Battery
Module and Control
Module Serial Connection)
Orange/0.16m/4AWG/2
Orange Surlok Terminal
1pcs/control
module
A1
21
/
42
160
2000
180
2000
2000
180
3500
