Pylontech PowerCube-X1 User Manual

19

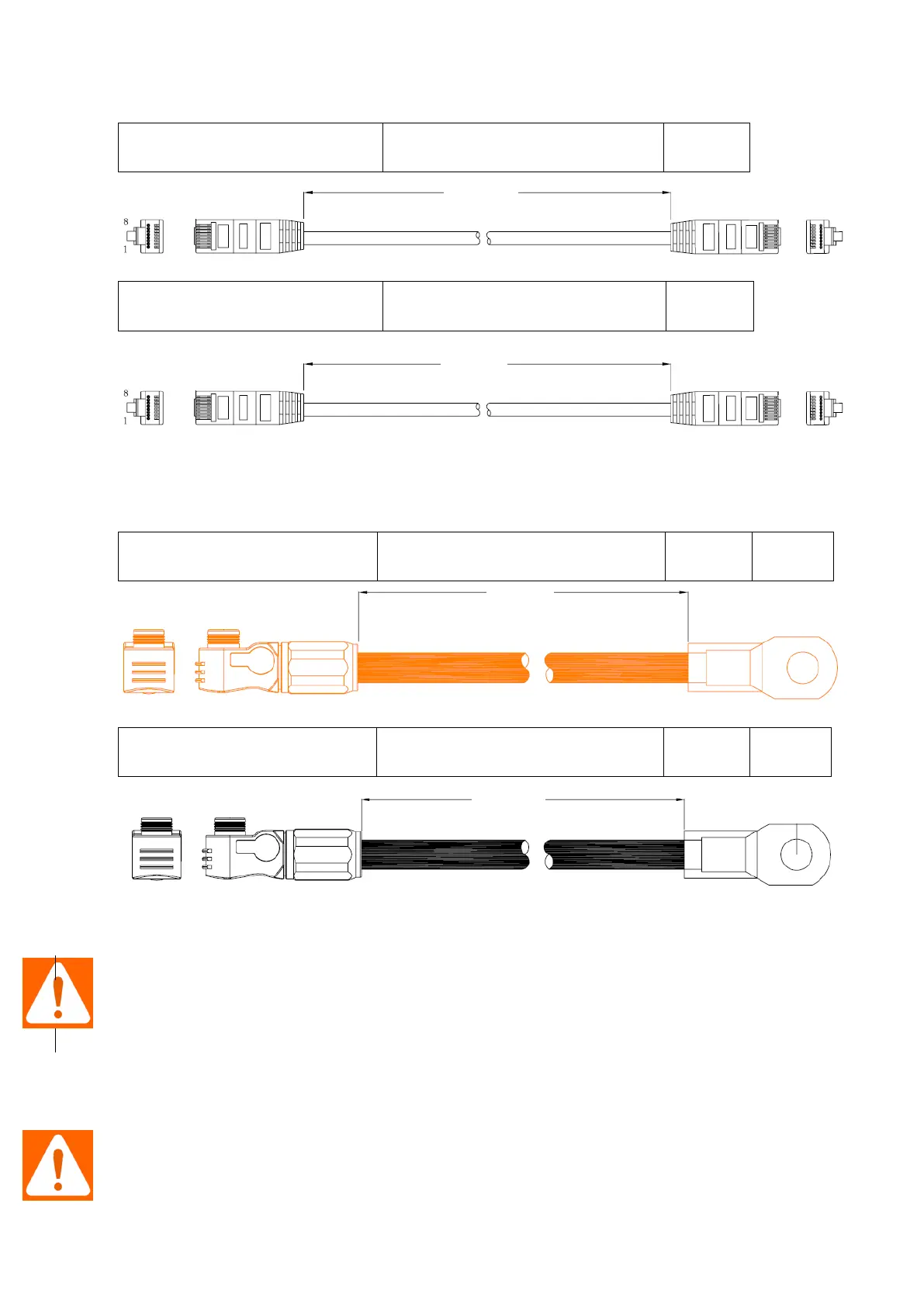

Battery Cascade
Communication Cable (0.18m)
Black/0.18m/8 Core Super 5th
Class Twisted-pair Wire/RJ45
1pcs
/module
External Battery CAN
Communication Cable (direct)
Black/3.5m/Super 5th Class
Twisted-pair Wire/2 RJ45 terminal
1pcs
/system
Control module:
External Power Cable +
Orange/2m/4AWG/SURLOK
Terminal/25-8 Terminal
pcs
1
External Power Cable -
Black/2m/4AWG/SURLOK
Terminal/25-8 Terminal
pcs
1
3.5 Handling and placement
Warning: The battery rack is IP00. It must be installed in a restricted access area;
Le support de batterie est IP00. Il doit être installé dans une zone d'accès restreint.
Warning: The PowerCube-X1/X2 is high voltage DC system, operated by qualified and authorized
person only.
PowerCube-X1/X2 est un système CC à haute tension, opéré uniquement par le personnel
qualifié et autorisé.
3.5.1 Handling and placement of the battery module
Single battery module is 24/32kg. If without handling tools must have more than 1 man to handling
with it.
2000
2000
180
3500
