Warning: Single battery module is 24kg/32kg. If without handling tools must more than 1 personnel
to handling with it. If install in high place of the rack it must more than 2 personnel.
Un module de batterie pèse
24
kg/32kg. Sans outils de manipulation, il est nécessaire de
plus de
1
hommes pour manipuler avec lui. Si vous l'installez en hauteur, il faut plus de
2
5.2.1.6 Install the new battery module (see before 5.2.1.1). And connect the cables. Refer to
chapter 3.5.
5.2.1.7 Turn on this battery string. Refer to chapter 3.6.
5.2.2 Replacement of Control Module (BMS)

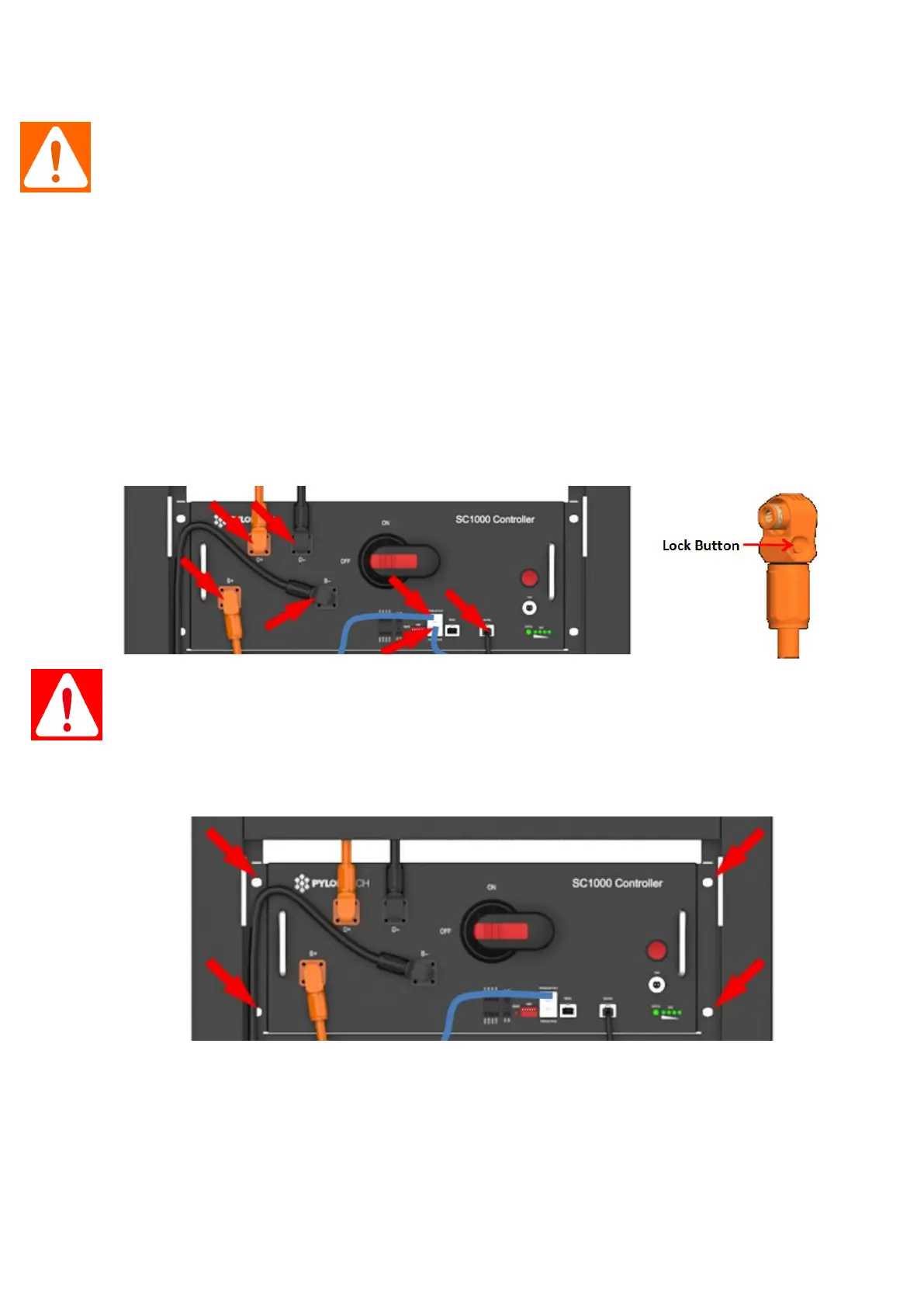

5.2.1.1 Turn off the whole battery string’s power. Must confirm the D+ and D- terminal are without
power. The turn off progress refer to chapter 3.6.5.
5.2.2.2 Pull out the plugs of Power Cables and the communication plugs.
Danger: the power cables still have high voltage DC power from another battery modules, must be
careful to handle the Power plugs.
Les câbles d'alimentation sont toujours alimentés en CC à haute tension par d'autres
modules de batterie; vous devez manipuler les fiches d'alimentation avec soin.
5.2.2.3 Dismantle the 4 screws of the battery module’s front face.
5.2.2.4 Install the new control module (BMS). And reconnect all the cables. Refer to chapter 3.5.
5.2.2.5 Turn on this battery string. Refer to chapter 3.6.
