Pylontech PowerCube-X1 User Manual

20
Un module de batterie pèse de 24 kg/32kg. Sans outils de manipulation, il est nécessaire de plus de
1 hommes pour manipuler avec lui. Si vous l'installez en hauteur, il faut plus de 3 hommes.
3.5.2 Handling and placement of the rack
If without handling tools must have more than 4 men to handling with it.
3.5.3 The fix and installation of the rack
The rack must be fixed on the basement and carriage on the wall with M10 screws.

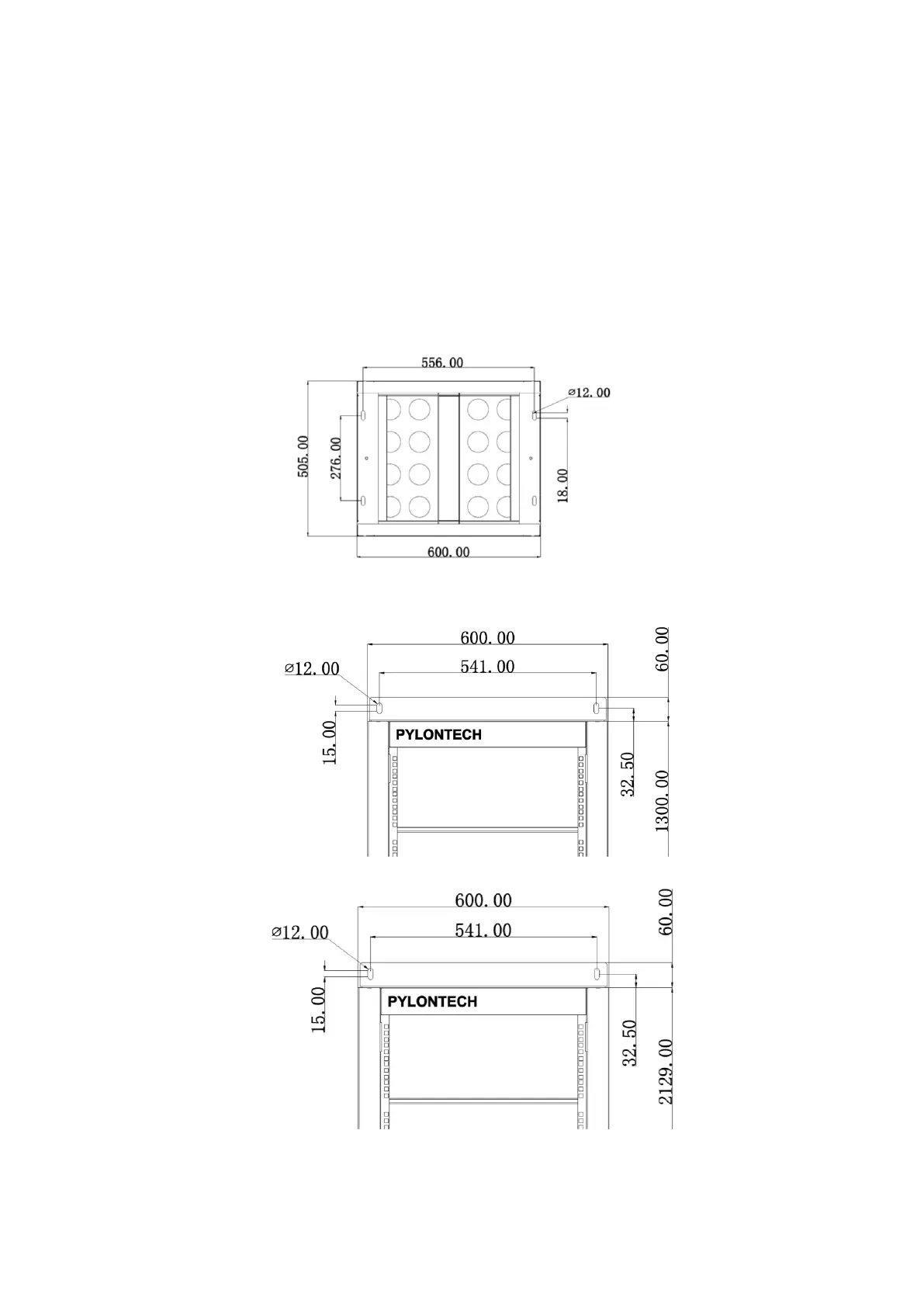

Battery rack basement holes bitmap (unit: mm):
Front side
Battery rack wall fixed holes bitmap (unit: mm):
