MONTAGE THE OVEN TO THE CABINET
 The device, place balanced and centered recessed cabinet.
 Oven, according to preferred mounted higher into a closet or under your sink.
 Open the door and secure the oven to the kitchen cabinet with four wood screws,
which t the holes provided in both side of the oven frame (A). (See Figure 4)
 When the oven is connected to the service on the bench for ease of installation
of furnace must be connected to electrical cables separately. Make sure for, cable
connection and be not pinched.

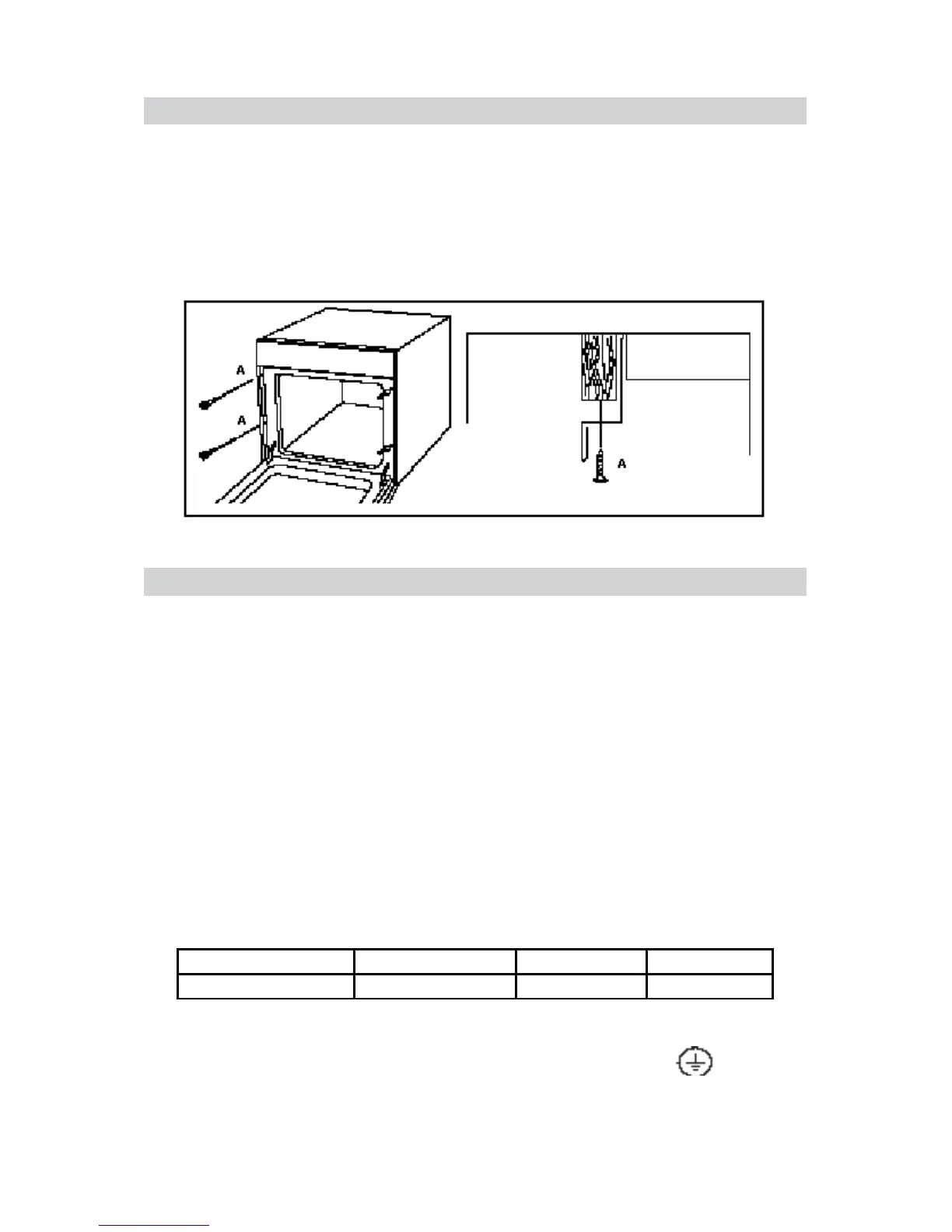

Figure 4
ELECTRICAL CONNECTION
All electrical connections in accordance with applicable laws and rules should be done only
by a qualied electrician. Connections must comply with national regulations.
Electrıc Connectıon Device Before
 Which is positioned on the front bottom of the main power is supplied from the mains
power will meet the specied record label sure.
 Current value of the insurance for the product must be at least 16A.
 If Current value of insurance is under 16 amperes, qualied electrical technician must
called for changing ampermeter.
 Connection must comply with national regulations.
 Grounded plug is mounted to oven energy supply cord.This must used with grounding-
line.Please make a qualied electirical grounding installation.
WARNING: This appliance must be earthed.
If your oven doesn’t have a power supply cable, provide a power supply cable to your
product by qualied electrician from following features.
Voltage Cable Type Conductor Size Current (Amp)
220-240V AC 50 Hz H05 VV - F 3 x 1,5 mm
2
16A
Table 1
Power supply cable in;
Yellow / green, the grounding cable must be connected to the terminal ‘’
’’.
Blue neutral wire connected to the terminal marked with the’’N’’.
Black, brown or red electrical cables installed must be connected to edge indicated by
the’’L’’. (See Figure 5)
