Pyramis 201045 - Changing the Oven Lamp

43
CHANGING THE OVEN LAMP
 Make sure that the electricity did not come from the device before performing this
operation.
 The oven lamp has to comply to these features;
1. Resistant to heat,
2. Electric rate: 220-240V AC 50Hz,
3. Electric power rate: 25W
 To replace the lamp, proceed as follows (See Figue 15) ;
1. Glass on the outer casing (A) remove the counter-clockwise,
2. Remove the oven light bulb counter-clockwise,
3. Replace it with a new one,
4. Ret the glass on the outer casing,
5. Switch on the electric supply.
WARNING: Ensure that the appliance is switched off before changing the lamp to
avoid the possibility of electric shock.

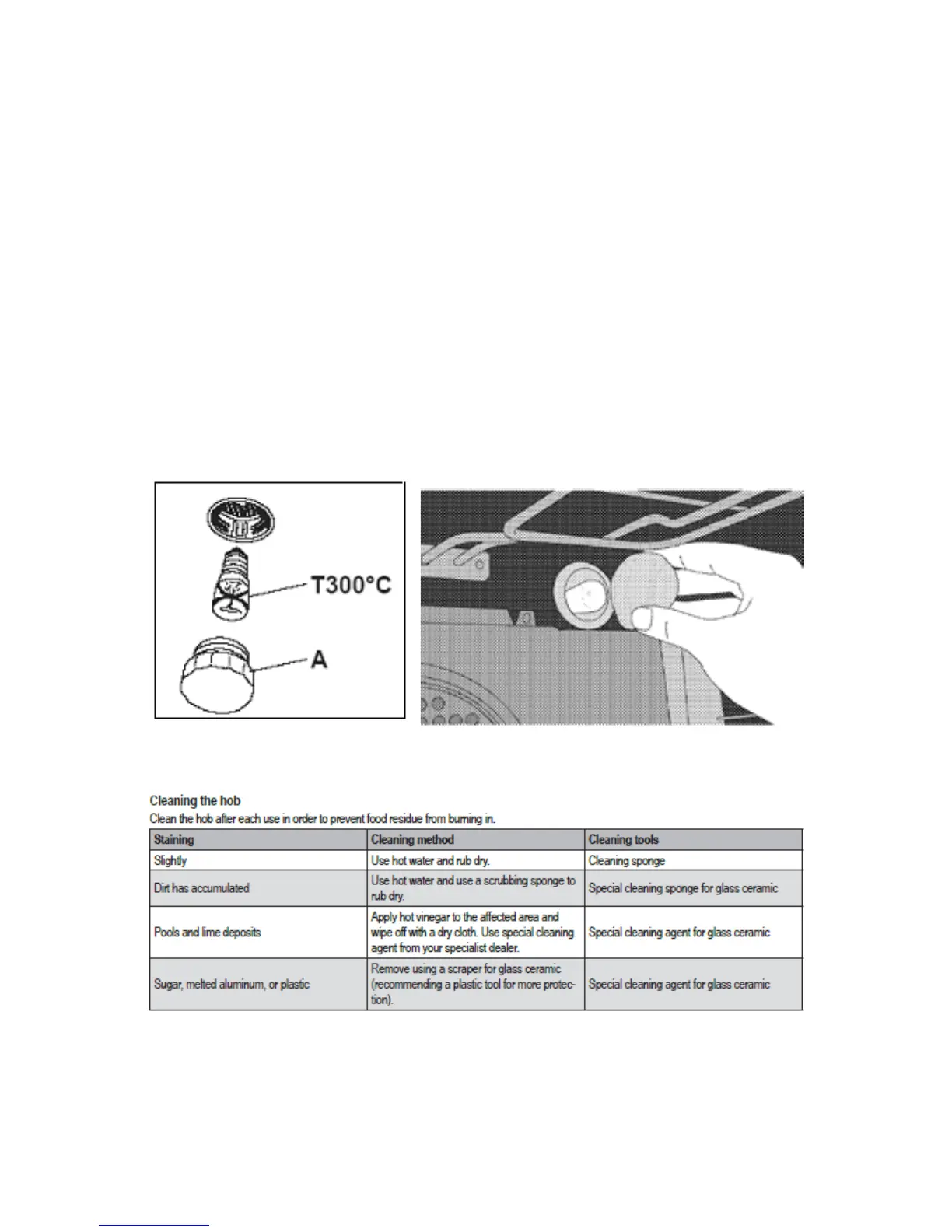

Figure 15
Note: The location and type of the lamp shown in the gure may be different.
