Page: 6

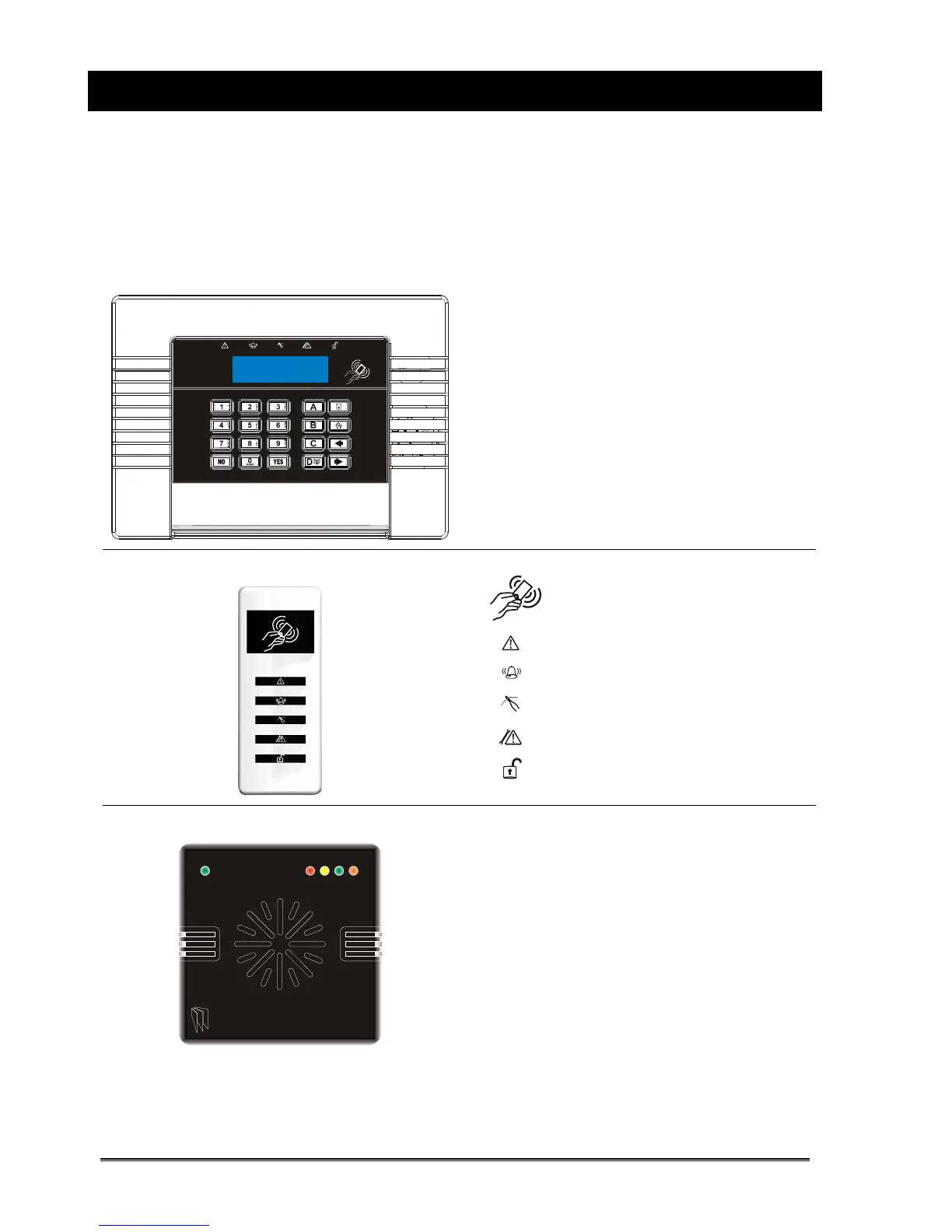

CHAPTER 2: KEYPADS / READERS
There are three different devices that may be used in the process of setting/unsetting the alarm
system; these are the main keypad, the external tag reader and the internal tag reader.
Additional remote keypads may also be added, please contact your engineer for more
information.
Control Panel Keypad
a
= Exit manager menu. Selects Level Set A.
b = Moves backwards to the previous menu
item. Selects Level Set B.
c
= Enables chime and displays additional
information in the log. Scrolls back ‘one’ in a
sub menu. Selects Level Set C.
D
= Moves forward in the log, scrolls between
options and enters the master manager menu.
Selects Level Set D.
fp = Not used.
[] = Directional buttons.
I = Selects items and enters menus.
A = Cancels items, resets the panel and
moves to next item in master manager menu
.
The Internal Tag Reader
Tag Area (Where you present
your tag to set/unset)
Alert LED
Alarm LED
Tamper LED
Fault LED
Unset LED
The External Tag Reader
LEFT GREEN LED: After a valid tag is
presented, the GREEN LED will illuminate
indicating the power status.
RED LED: This can be programmed by your
engineer to illuminate when the alarm has
activated for example.
