QSD2308L/QSD2316L DVR User’s Manual
7

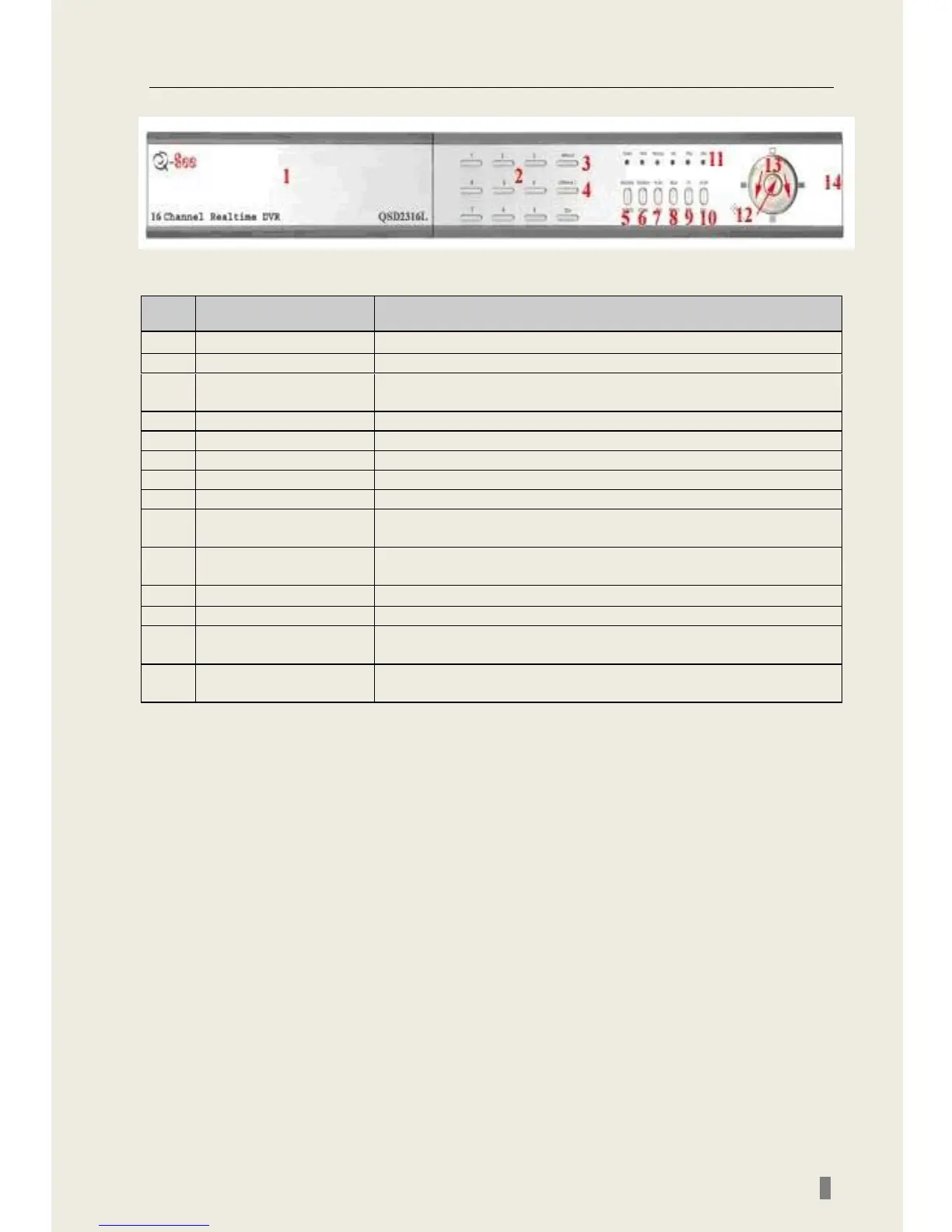

Fig 2.6 Front Panel Option B
Item
Name
Function
1
DVD Recorder / HDD
Tray opening for optional DVD Recorder or Hard Drive
2
Number buttons
Input numbers or choose camera
3
Menu/+ button
1. Increase the value in setup
2. Enter menu from live view
4
Backup-/back
Backup files, Delete, Number Decrease button
5
RECORD/Focus
Record manually, Focus PTZ cameras
6
SEARCH/Zoom
Enter search mode, Zoom control for PTZ cameras
7
PLAY/Iris button
Enter playback interface, Iris control for PTZ cameras
8
REW/Speed/info
Rewind, increase or decrease speed, system info
9
FF/PTZ control
1. Fast forward
2. control PTZ cameras
10
STOP/ESC
1. Quit playback mode
2. Exit the current interface or status
11
Indicator
Working indicators for power, HDD, network, etc
12
Enter button
To confirm the choice or setup
13
Direction/Multi-screen
button
1. Direction buttons. Move cursor in setup or pan/tilt PTZ
2. Change screen display like single, 4, 9 and 16 screens
14
USB port on side
To connect external USB flash drive for backup or updating
firmware
Table 2.2 Functions of Front Panel Buttons Option B
