QSD2308L/QSD2316L DVR User’s Manual
23
Event search:
STEP1 Enter Search---->Event search. The calendar window will appear
like that of time search
STEP2 Choose a day to find events for, as Fig 3.18 Event Search

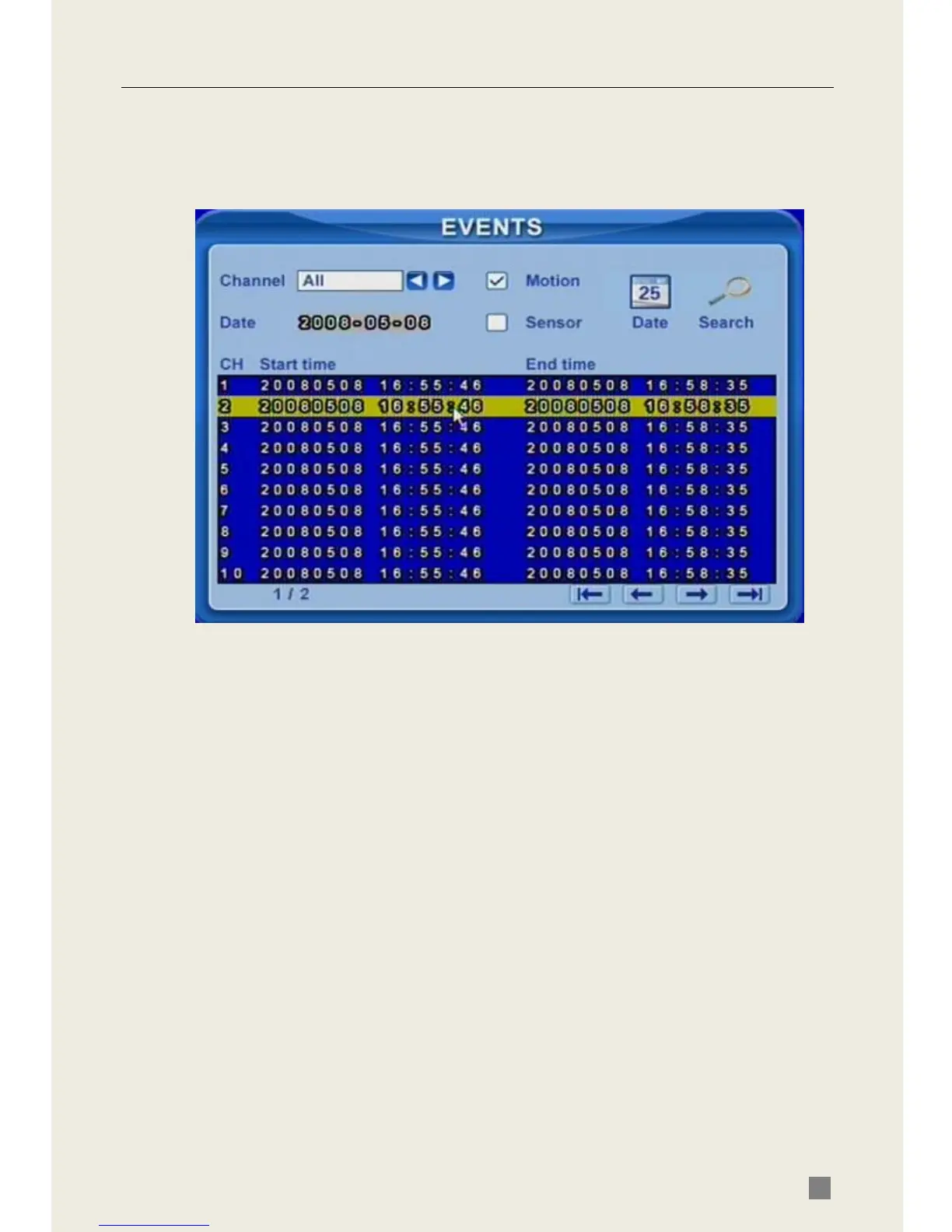

Fig 3.18 Event Search
STEP3 Choose camera and event type, motion or sensor.
STEP3 Double click one video file to play.
3.5 Backup & View
STEP1 This unit supports backup to USB Flash through the USB port on
the front panel. Users can also make backup to PC by IE browser via internet,
referring to 6.3.1 STEP2Select the date, channel and event type. Then click
Search. All the files found will be listed in left area.
STEP2 Select a file, and click Play button to do remote playback. The
following steps are the same as STEP5-6 of time search above.
.
Take USB flash backup as an example. You can push the Backup button on
the front of the DVR or press right mouse button to show the control bar, refer
to Fig 4.1 Control Bar.
