QSD2308L/QSD2316L DVR User’s Manual
36
4.2.4 Schedule Configuration

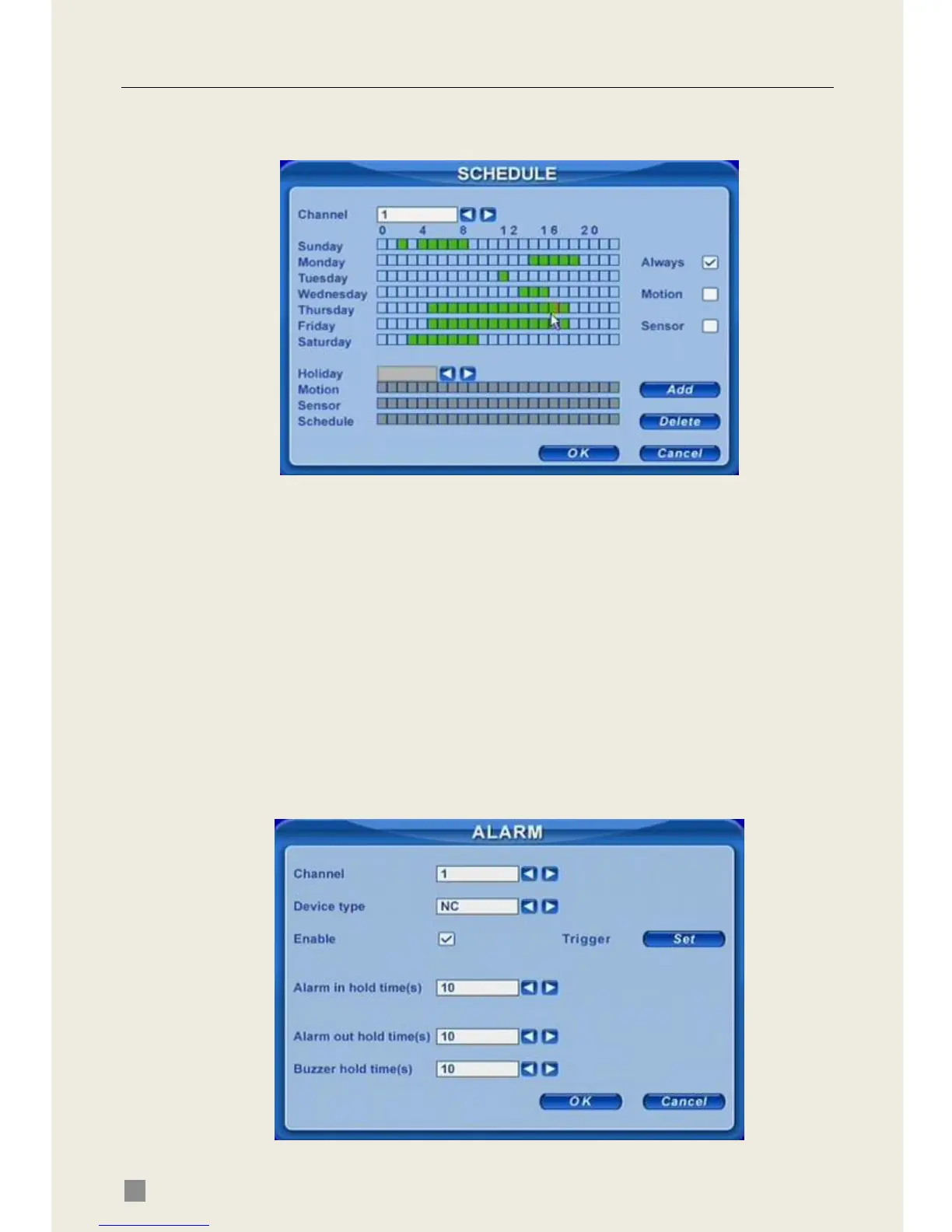

Click SCHEDULE to enter schedule configuration shown as Fig 4.8
Schedule Configuration.
Fig 4.8 Schedule Configuration
Here users can set schedule for timed recording, motion detection and
sensor alarm respectively. The following are the definitions of each option:
Always, Motion and Sensor: refer to record schedule, motion schedule
and alarm schedule respectively.
The first column shows the 7 days of the week from Sunday to Saturday.
The rows refer to 24 hours. Click the boxes or hold mouse to drag to set the
schedule time. Green means checked. Transparent means unchecked.
Add: Users can set the schedule for a certain day by date. Click Add to add
date as shown in Fig 3.9 Calendar.
Delete: Delete holiday schedule.
4.2.5 Alarm Configuration
Click ALARM to enter alarm configuration as in Fig 4.9 Alarm Configuration.
Fig 4.9 Alarm Configuration
